Prod Model: |
D1103 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Process Usage: |
Metal-Cutting CNC Machine Tools |
Performance Classification: |
High-End CNC Machine Tools |
Numerical Control: |
Nc |
Movement Method: |
Point to Point Control |
Control Method: |
Semi-Closed Loop Control |
Helix Angle: |
Straight Flute |
Application: |
Steel,⪞ast Iron |
Grain Size: |
0.5um |
Tungsten Carbide: |
90% |
OEM: |
a⪞⪞ept |
Type: |
Carbide Drill Bit |

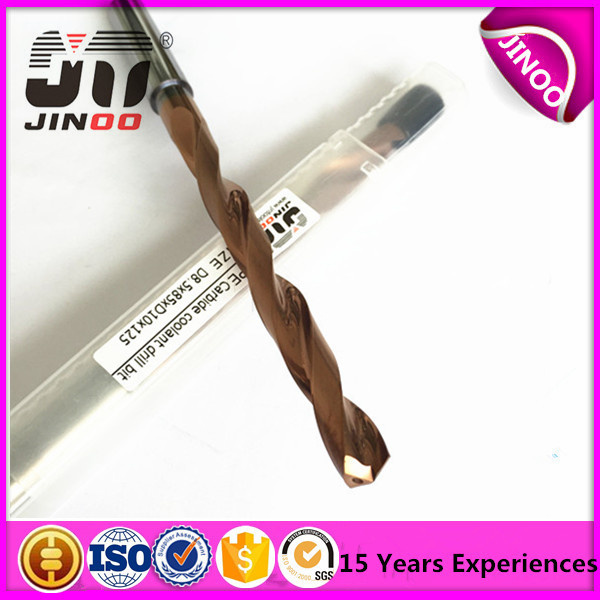

Product Description
Providing the high stability which is essential for drilling deep holes, the D1103 offers efficiency and high speed. It drills accurate deep holes to depths up to 20 x drill diameter without pecking. The cost per hole is reduced as the high feeds and speeds enable increased productivity. Machine downtime is reduced and tool life is increased due to the fast and efficient chip evacuation.
Small and manageable chips are encouraged by the ACM (Advanced Chip Management) flute geometry. Thrust forces are reduced by the specially designed point geometry. The cutting edge is protected from premature flaking and chipping by the consistent edge preparation. Greater stability is offered to the drilling operation by the double offset margin patented geometry. Coolant is delivered directly to the tip of the drill by internal coolant holes.
Jingnuo D1101 drill is made from solid carbide and has been optimized for steel, stainless steel and aluminium. It provides high-speed and easy drilling. It is highly suitable for traditional drilling, inclined surfaces, chamfered holes, cross holes, traditional stack drilling and convex/concave surfaces.
It provides low cutting forces. This minimizes problems related to weak fixtures, parts with thin walls as well as cutting edge loads. It provides outstanding evacuation of chips. It also provides higher achievable cutting data in both short and long chipping materials. The combination of these features ensures reliable and high-performance drilling at high penetration rates. The standard drill in the point hole.
D1104 provides superior and dependable performance and lower cost per hole. It provides a long tool service life and wear formation is controlled.
The main advantage(1)Good quality
(2)Super and stable raw material
(3)Super coating
(4)High reputation
(5)Reasonable price
(6)Short delivery time

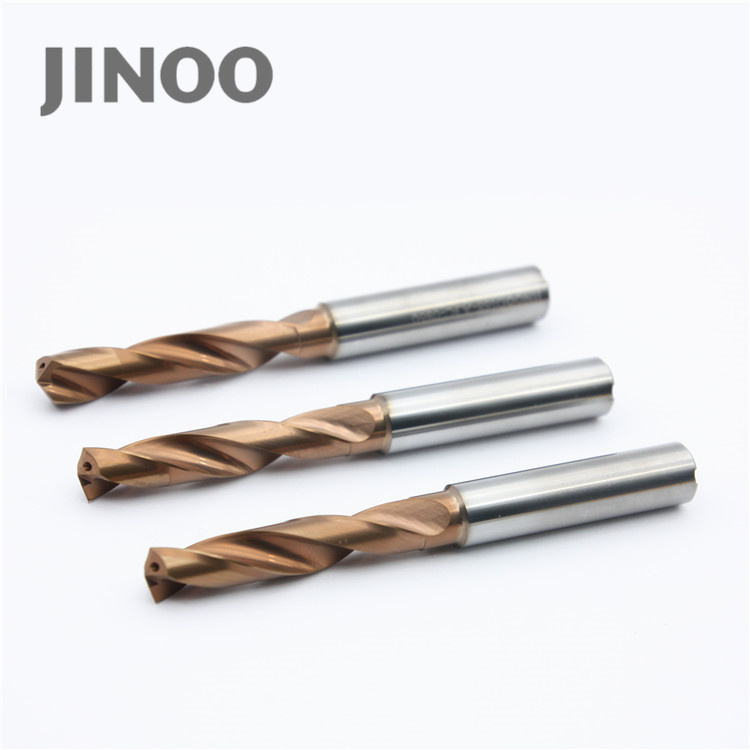

AdvantageCarbide deep hole drills
1. Sharp cutting matched with the good hardness
2. Two relief angle: Arc & Flat relief angle, Arc relief angle makes the a better wear-resisting of the tool. Flat relief angle makes the tools more sharper and more powerful
3. Coating: ALTIN black coating, advanced technology and equipment of Japan; High temperature oxidation resistance (800° C), Life is longer than others about 20%

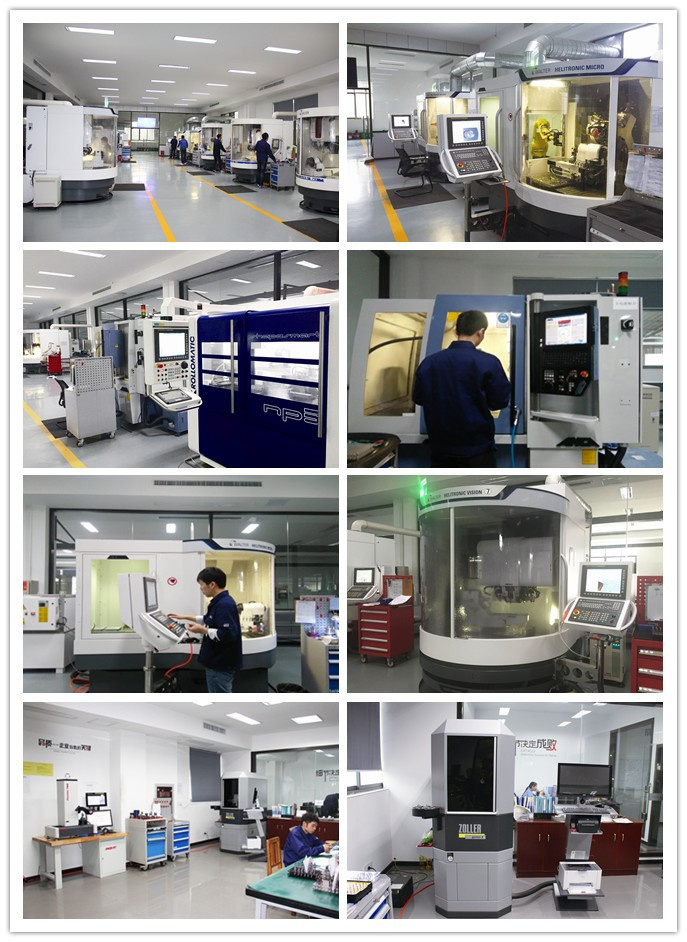

Equipment Show1. We have 10 cnc machines. Walter, ANCA, strong stability and high precision. The technical from Germany
2. Anca: Small diameter cutter
3. Walter: Special cutter
4. Advanced equipment, more efficiency, save time and cost.
5. Clean working environment, better working mood, high quality products
6. Test --with three test to confirm the quality.

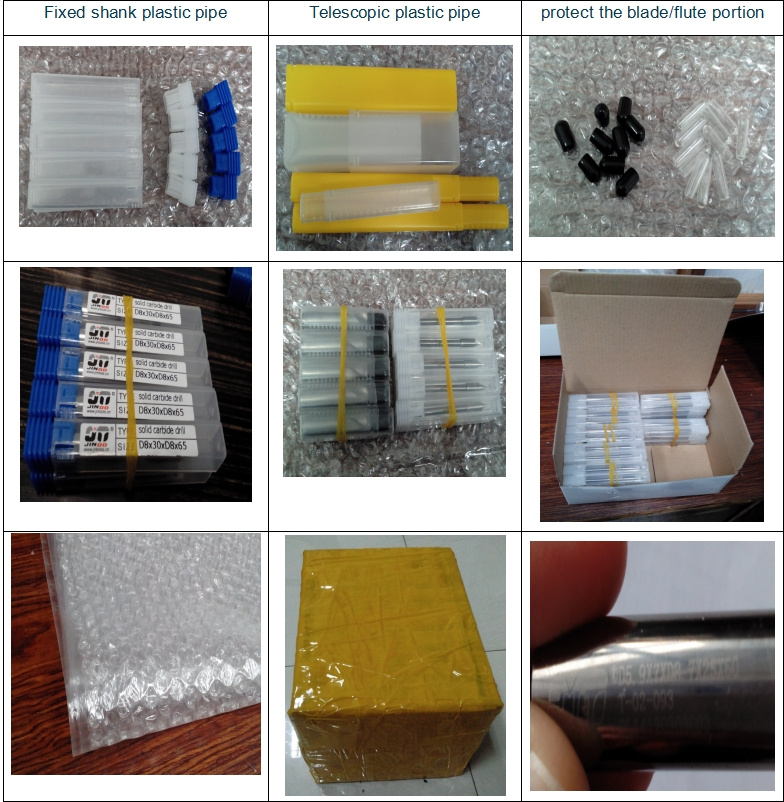

Package- - - - - - - - - - - JINOO- - - - - - - - - - - -
(1)One plastic pipe pack one piece, 10 pieces per group.
(2)Use the air bubble paper to encase the plastic paper.
(3)Put the goods encased with air bubble paper into the carton.
(4)Other packing will be accepted according to your needs.
Why choose us:
1) Demand--Custom demand are welcomed
2) Design--Design and Development Team to meet your individual demands
3) Molds--Various molds existed
4) Production--Assembly line production, high standard and strict requirements
5) Products--More than 2000 products are available
6) Package--Tailor-made package to cater for your personalize taste
7) Payment--Various options to make payment more convenient
8) Logistics--Various cooperated express to reduce on your freight cost.
Customer Service--E-mail your suggestions or complaints, and we will handle them ASAP
Performance Solid Carbide Drills |
Dia. (MM) | Flute Length (MM) | Shank Dia. (MM) | Shank Length (MM) | OAL (MM) |
3.3 | 20 | 4 | 28 | 54 |
3.5 | 20 | 4 | 28 | 54 |
3.7 | 20 | 4 | 28 | 54 |
3.8 | 24 | 4 | 28 | 58 |
3.9 | 24 | 4 | 28 | 58 |
4.0 | 24 | 4 | 28 | 58 |
4.2 | 24 | 6 | 36 | 66 |
4.3 | 24 | 6 | 36 | 66 |
4.5 | 24 | 6 | 36 | 66 |
4.6 | 24 | 6 | 36 | 66 |
4.9 | 28 | 6 | 36 | 66 |
5.0 | 28 | 6 | 36 | 66 |
5.1 | 28 | 6 | 36 | 66 |
5.3 | 28 | 6 | 36 | 66 |
5.5 | 28 | 6 | 36 | 66 |
5.8 | 28 | 6 | 36 | 66 |
5.9 | 28 | 6 | 36 | 66 |
6.0 | 28 | 6 | 36 | 66 |
6.5 | 34 | 8 | 36 | 79 |
6.7 | 34 | 8 | 36 | 79 |
6.8 | 34 | 8 | 36 | 79 |
7.0 | 34 | 8 | 36 | 79 |
7.3 | 41 | 8 | 36 | 79 |
7.4 | 41 | 8 | 36 | 79 |
7.5 | 41 | 8 | 36 | 79 |
7.8 | 41 | 8 | 36 | 79 |
7.9 | 41 | 8 | 36 | 79 |
8.0 | 41 | 8 | 36 | 79 |
8.1 | 47 | 10 | 40 | 89 |
8.2 | 47 | 10 | 40 | 89 |
8.3 | 47 | 10 | 40 | 89 |
8.4 | 47 | 10 | 40 | 89 |
8.5 | 47 | 10 | 40 | 89 |
8.6 | 47 | 10 | 40 | 89 |
8.7 | 47 | 10 | 40 | 89 |
8.8 | 47 | 10 | 40 | 89 |
8.9 | 47 | 10 | 40 | 89 |
9.0 | 47 | 10 | 40 | 89 |
9.3 | 47 | 10 | 40 | 89 |
9.5 | 47 | 10 | 40 | 89 |
9.7 | 47 | 10 | 40 | 89 |
9.8 | 47 | 10 | 40 | 89 |
10.0 | 47 | 10 | 40 | 89 |
10.3 | 55 | 12 | 45 | 102 |
10.4 | 55 | 12 | 45 | 102 |
10.5 | 55 | 12 | 45 | 102 |
10.6 | 55 | 12 | 45 | 102 |
10.8 | 55 | 12 | 45 | 102 |
11.0 | 55 | 12 | 45 | 102 |
11.1 | 55 | 12 | 45 | 102 |
11.2 | 55 | 12 | 45 | 102 |
11.5 | 55 | 12 | 45 | 102 |
11.8 | 55 | 12 | 45 | 102 |
11.9 | 55 | 12 | 45 | 102 |
12.0 | 55 | 12 | 45 | 102 |
12.1 | 60 | 14 | 45 | 107 |
12.2 | 60 | 14 | 45 | 107 |
12.5 | 60 | 14 | 45 | 107 |
12.6 | 60 | 14 | 45 | 107 |
13.0 | 60 | 14 | 45 | 107 |
13.1 | 60 | 14 | 45 | 107 |
13.5 | 60 | 14 | 45 | 107 |
14.0 | 60 | 14 | 45 | 107 |
14.5 | 65 | 16 | 48 | 115 |
14.6 | 65 | 16 | 48 | 115 |
15.0 | 65 | 16 | 48 | 115 |
15.2 | 65 | 16 | 48 | 115 |
15.5 | 65 | 16 | 48 | 115 |
15.6 | 65 | 16 | 48 | 115 |
16.0 | 65 | 16 | 48 | 115 |
16.5 | 73 | 18 | 48 | 123 |
16.8 | 73 | 18 | 48 | 123 |
17.0 | 73 | 18 | 48 | 123 |
17.5 | 73 | 18 | 48 | 123 |
17.8 | 73 | 18 | 48 | 123 |
18.0 | 73 | 18 | 48 | 123 |
18.5 | 79 | 20 | 50 | 131 |
18.8 | 79 | 20 | 50 | 131 |
19.0 | 79 | 20 | 50 | 131 |
19.5 | 79 | 20 | 50 | 131 |
19.8 | 79 | 20 | 50 | 131 |
20.0 | 79 | 20 | 50 | 131 |
20.5 | 93 | 25 | 56 | 151 |
21.0 | 93 | 25 | 56 | 151 |
21.5 | 93 | 25 | 56 | 151 |
22.0 | 93 | 25 | 56 | 151 |
22.5 | 96 | 25 | 56 | 153 |
23.0 | 96 | 25 | 56 | 153 |
23.5 | 96 | 25 | 56 | 153 |
24.0 | 96 | 25 | 56 | 153 |
24.5 | 96 | 25 | 56 | 153 |
25.0 | 96 | 25 | 56 | 153 |
Our factory is located at Xixiashu Town outside the West Gate of the Changzhou Wall to the Changzhou city, 5km distant to the airport to the Changzhou city, 3km distant to express highway between Shanghai city and Nanjing city and has the traffic facilities.
Our factory has imported several such as 5-axe numerical control grinder, from Walter of Germany. Use international high quality material. The quality of cutting tool reaches to international advanced level. The factory will provide the customer with high precision standard and nonstandard cutters. The solid carbide alloy cutlery, such as the drills, the milling cutters, the reamers, the boring cutters and the cuttersti process the holes are manufactured in the factory. And all sorts of the cutters whose mmanufacturing processes are very difficult. Can be designed and manufactured, the stainless steel wire. The cutters made in our factory are used to process the alloy steel, the stainless steel, the cast steel, the harden steel, ya suo ji, the nonferrous metals^etc.
The factory which manufactures the automobiles, the motorcycle engines, the carbuators and the mould industry are supplied with all sorts of the cutters made by our factory. The cutters made in our factory are mainly used in the processing centers to process the numerical control machine tools, the special machine and the high quality machine tool.
