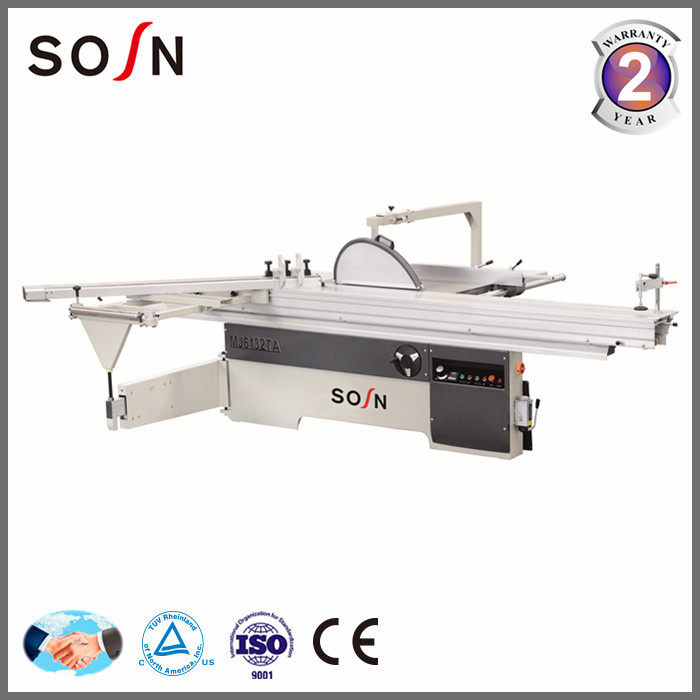

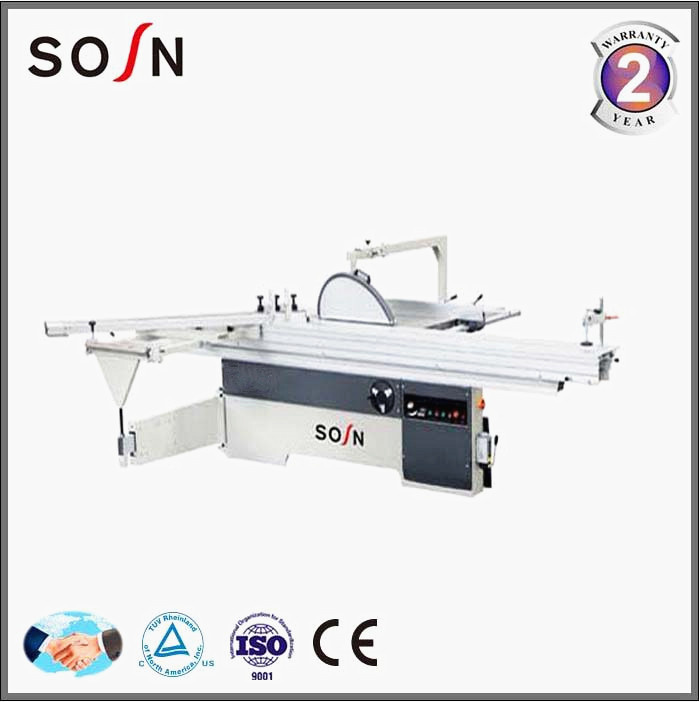

Special Acrylic Panel Saw for Furniture Making

Special Acrylic Panel Saw for Furniture Making
Price: US $ 2000-3500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: MJ6132TD
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Table Panel Saw
Layout: Horizontal
Controlling Mode: Artificial
Automatic Grade: Manual
Precision: Precision
Certification: ISO

Product Description





1. Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, organic glass plates and solid wood and others with wood structure and similar hardness
2. Movable table guide truck is plating chromium steel balls structure, exact and durable
3. Made of high-strength extruded aluminum alloy, movable table is high in strength and won't bend.
4. With oxidation treatment, movable table surface is beautiful and hardwearing.
5. Tilt angle of main and scoring saw blades are displayed directly by precision inclinometer

We have the high quality technical team and have accumulated rich design and manufacture experience. By right of advanced product process, strict quality assurance measures, scientific management art, high efficient service, we keep on exploring and innovating and devote our energy and sincerity to the technological innovation. To dear buyers,
Please check this message for the machines you are in need from QINGDAO SOSN MACHINERY Co., Ltd
Our products can be classified as

According to the tilting: 45 degree (T) and 90 degree

According to the structure: Linear (Z), Round rod (D) and Altendrof (A)

The cutting capacity is from 1500mm to 3800mm( usually we have 1600mm, 2200, 2600, 2800, 3000, 3200, 3800mm)

Manual operation, Semi-automatic and automatic precision panel saw
Dimension of sliding table3200x375mm
Gross cut capacity 3200mm
Width of cut between saw blade and rip fence   1250mm
Saw blade diameter300mm(250-300mm)
Height of cut (300mm) 80mm
Speed of main saw spindle  4000-6000rpm
Main spindle diameter  30mm
Tilting saw blade 90°
Main motor  5.5kw
Scoring saw blade diameter 120mm
Speed of scoring saw blade8000rpm
Scoring saw diameter 20mm
Scoring motor1.1kw
weight 850kg
Overall dimension 2800*3150*900
Packing size of the machine body(L*W*H)2170*1100*1150mm
Packing size of the sliding table(L*W*H)1650*400*260mm
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.

SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.

We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.

SOSN main product,

CNC Router

Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)

Edge banding machine: Manual, semi-automatic, full automatic

Boring/Drilling machine

Belt sanding machine

Dust collectors

Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc

For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.

High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!

You are warmly welcome to join us in this business line to have a Win-win situation!
