Sprag Freewheel Clutch Csk25p One Way Machine Bearing 25X52X15mm

Name: Sprag Freewheel Clutch Csk25p One Way Machine Bearing 25X52X15mm
Brand: tool-buy.com
SKU: 753243075
Availability: InStock
Rating: 4.4 (68 reviews)

Price:	US $ 3.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Changzhou Suma Precision Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	CSK25P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Csk25p
Type:	Sprag Type
Torque(Nm):	85
Outside Diameter(mm):	52
Inside Diameter(mm):	25
Weight(Kg):	0.14
OEM:	Accept
Stock:	Rich
Product Name:	Material Gcr15 Oneway Bearing Overruning Clutch
Precision:	P6
Rolling Body:	Ball Bearings
The Number Of Rows:	Single
Outer Dimension:	Small (',28-55mm)
Material:	Bearing Steel
Load Direction:	Radial Bearing
Separated:	Unseparated

Product Description

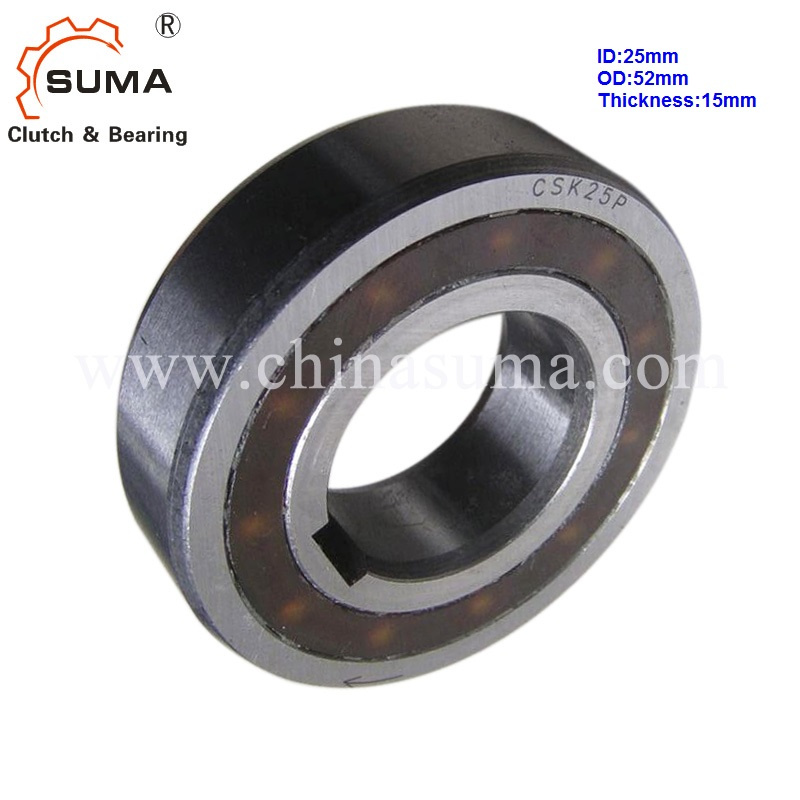

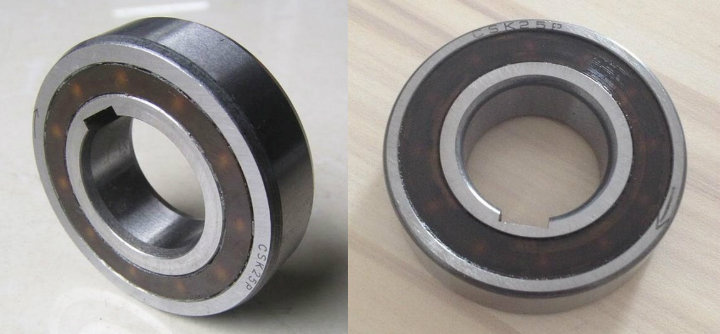

Description of Sprag Freewheel Clutch CSK25P One Way Machine Bearing 25x52x15mm with a Keyway in the inner race

Model	CSK25P
Bore size (mm)	25
Outer size (mm)	52
Thickness (mm)	15
Torque (Nm)	85
Speed (rpm)	5200

Introduction of CSK series one way clutch

CSK series one way freewheels are sprag freewheels with bearing support and ball bearing proper-ties. The freewheels are supplied grease-filled for normal operating conditions.
The freewheels CSK series are used as:
Backstops
Overrunning Clutches
Indexing Freewheels

Nominal torques up to 325 Nm. The torque is transmitted on the inner ring and/or on the outer ring by press fit or keyway connection.

The following series are available:

Series	Torque transmission on				2RS-seals
	Outer ring by		Inner ring by
	Keyway	Press fit	Keyway	Press fit
CSK		YES		YES
CSK...2RS		YES		YES	YES
CSK...P		YES	YES
CSK...P 2RS		YES	YES		YES
CSK...PP	YES		YES
CSK...PP 2RS	YES		YES		YES

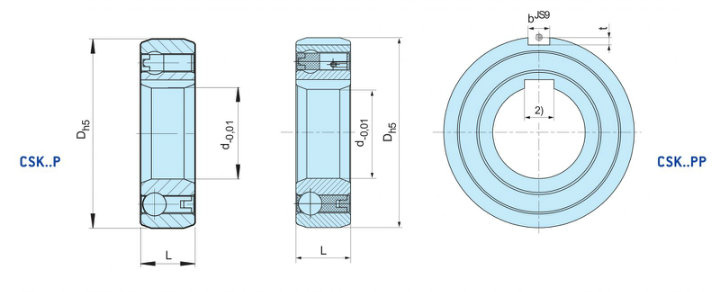

Parameter sheet of CSK...P, CSK...PP and CSK...P 2RS series One Way Bearing

Type	Size	Bearing series							Bearing loads		Weight	Drag torque
	Size								dynamic	static		Drag torque
	d		TKN1)	nmax	D	L	b	t	C	C⁰		TR
	[mm]		[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[kN]	[kN]	[kg]	[Ncm]
CSK..P	12	6201	9.3	10000	32	10			6.1	2.77	0.04	0.7
	15	6202	17	8400	35	11			7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12			7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14			9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15			10.7	5.46	0.14	2
	30	6206	138	4200	62	16			11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17			12.6	7.28	0.3	5.8
	40	-	325	3000	80	22			15.54	12.25	0.5	7
CSK..PP	15	6202	17	8400	35	11	2	0.6	7.4	3.42	0.06	0.9
	17	6203	30	7350	40	12	2	1	7.9	3.8	0.07	1.1
	20	6204	50	6000	47	14	3	1.5	9.4	4.46	0.11	1.3
	25	6205	85	5200	52	15	6	2	10.7	5.46	0.14	2
	30	6206	138	4200	62	16	6	2	11.7	6.45	0.21	4.4
	35	6207	175	3600	72	17	8	2.5	12.6	7.28	0.3	5.8
	40	-	325	3000	80	22	10	3	15.54	12.25	0.5	7
CSK..P-2RS	12	-	9.3	10000	32	14			6.1	2.77	0.05	3
	15	-	17	8400	35	16			7.4	3.42	0.07	4
	17	-	30	7350	40	17			7.9	3.8	0.09	5.6
	20	-	50	6000	47	19			9.4	4.46	0.145	6
	25	-	85	5200	52	20			10.7	5.46	0.175	6
	30	-	138	4200	62	21			11.7	6.45	0.27	7.5
	35	-	175	3600	72	22			12.6	7.28	0.4	8.2
	40	-	325	3000	80	27			15.54	12.25	0.6	10

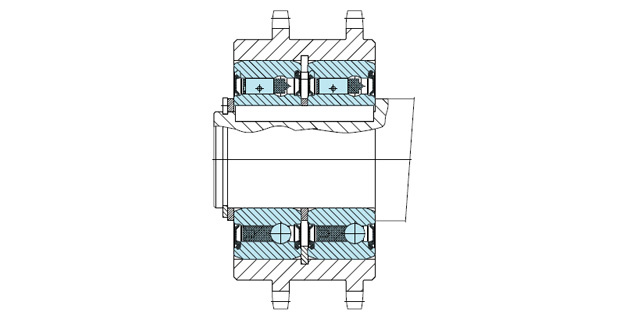

Mounting example of CSK series One Way Bearing

Package

Changzhou Suma precision machinery Co, Ltd. Is a manufacturer specialized in Producing Various one way bearing, one way clutch, backstop clutch, overrunning clutch, indexing freewheel, spherical plain bearing and cylindrical roller bearing with high technology.

The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc. In addition, special clutch bearings are also provided in accordance upon customers' Requirement for various applications.

With more than 10 years of experience, er focus on developing and manufacturing a variety of one way bearings to meet the needs of our customers' reauirements. With an emphasis on performance and reliability, we provide products that support industry machines, such as forklift, torque covertor, -excavator, printer, textile machines, fans, small-size loader and so on.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

All of our products are engineered by superior production equipment, manufactured with advanced instrument to ensure high precision and reliable Performance.

We welcome you to visit our website, and do not hesitate to contact us.
