| Prod Model: |
MDW-KT-QS |
| Markets: |
North America,South America,Eastern Europe,Africa,Mid East,Eastern Asia,Western Europe |
| Coating: |
Spring and Rubber |
| Diameter: |
11.5/11.0mm |
| Bead/S: |
26/37PCS |
| Making Method: |
Cold-Pressed and Sintered |
| Length: |
50meters/Roll |
| Weight: |
17.5/18kg |
| Cutting Material: |
Marble or Other Soft Stone |
| Certification: |
SGS,Ce,a&V |
Product Description

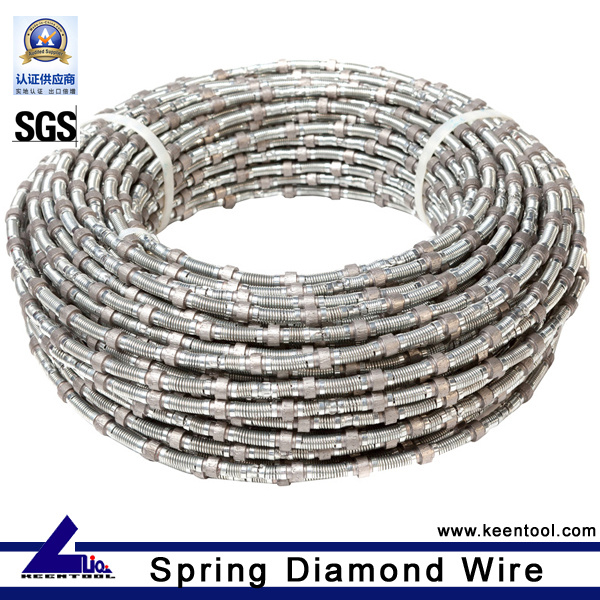

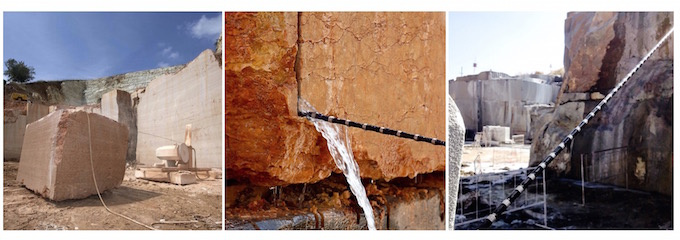

Description:Spring coated wire with advantages of good flexibility, low request for temperature, easy assembling, easy replacing and repairment, low cost, can be considered as the most simple and versatile of instruments for quarrying Marble, Limestone, Travertine etc.
Crude rubber coating diamond wire with advantages of good flexibility, good protection for internal steel cable, good safety and stability during cutting, which is ideal choice for quarrying Marble, Limestone, Travertine etc.
Technical Data:| Spring or rubber coated Wire for Marble Quarry |
| Specification of Beads(mm) | Model | Coating | Beads No.
(Pcs/Meter) | Hardness of Marble | Cutting speed
(M2 /Hour) | Cutting life
( M2/Meter) |
Φ11.0mm
Φ10.5mm | MDW-KT-QS | Spring | 26 | SOFT | 16-25 | 55-75 |
| MEDIUM | 12-16 | 45-65 |
| HARD | 7-10 | 30-45 |
Φ11.0mm
Φ10.5mm | MDW-KT-QR | Rubber | 37 | SOFT | 12-20 | 55-75 |
| MEDIUM | 8-14 | 45-65 |
| HARD | 5-8 | 30-45 |
When place order of spring/rubber coated wire, please kindly inform:
1. The power of wire saw and relevant technical parameters for it
2. The hardness and chemical information of marble, limestone or travertine
3. The dimension of cutting bench, length and height
4. Expected performance
5. Special requirement (if any)

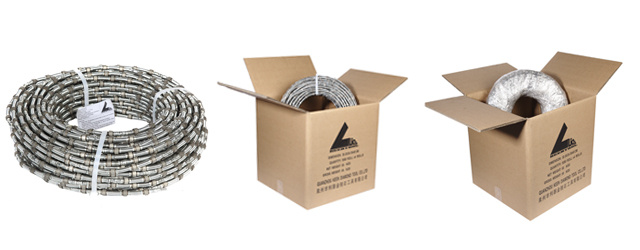

Packaging & Shipping: Packaging: Carton with water proof plastic.
Meters/Roll: 50/60Meters/Roll
NW: 17KG-18.5KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire.
Our Services:1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Always at your service!
