| Prod Model: |
XY-200 |
| Power: |
Diesel Engine or Electric Motor |
| Stratum: |
Gravel, Soil, Sand, Hard Rock etc |
| Spare Parts: |
at Factory Price Supply All Year Around |
| Warranty: |
One Year for Main Machine |
| Base: |
Trailer with Two Wheels |
| Work With: |
Mud Pump, Not Air Compressor |
| Drilling Speed: |
7-10m/H in Hard Rock, 10-20m/H in Soil |
| Operation: |
Operation VCD, Introduction Manual |
| Spt: |
Available, One Complete Set |
| Casing Pipe: |
Size, Quantity as Per Request |
Product Description
FAQ for customer:
1.price: factory direct selling, good price must be given to you!
2.delivery time: 7-10 days after receiving your advance payment
3.warranty: one year for main machine
4.spare parts: can be supplied at factory price all year around
5.training: free training in factory, introduction mannual and operation video can be sent to you.

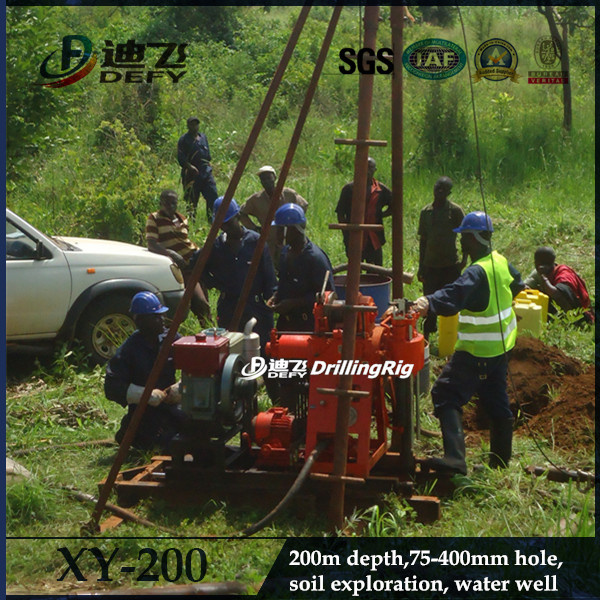

I.XY-200 Application
Water well
Core sampling drill and SPT
Geological Exploration and Prospecting
Geothermal wells
Blast-hole
Irrigation projects
II.XY-200 Features
1. Hydraulic Control System
Automatic up and down of the hoist and drill rod. Very convenient and time-saving.
2. Two Kinds Power Supply
Diesel engine or Electrical motor as per your quest
3.Various Drilling Bits
Three-wing Bit, Alloy Bit, Diamond Bit to drill soft and hard rock,especially diamond
bit effective in hard rock.
4. Mobile base
Two or four wheels mobile base can be on tractors, trailers or cars. Very convenient
for outdoor and rugged place.
5. Assemble and dissemble
Easy operation and one person is able to carry it.
III: XY-200 Spec
| IV. Specifications |
| 1.Overall parameters |
| Drilling depth | 200m |
| Maximum open hole caliber | 400mm |
| End hole caliber | 75mm |
| Diameter of drill rod | 50mm |
| Drilling angle | 90~75 |
| Weight(not include power) | 760kg |
| Dimension | 2750*950*1600mm |
| 2. Vertical shaft | |
| Rotating speed | 71,142, ,310,,620r/min |
| Feeding stroke | 450mm |
| 3.Hoist | |
| Max. single line hoisting capacity | 2400Kg |
| Diameter of wire rope | 13mm |
| Volume of winding drum | 35m |
| Hug floodgate caliber | 230mm |
| Hug floodgate belt width | 70mm |
| 4.Mud pump | |
| Type | Horizontal single urn twin-action |
| Rate of flow | 180L/min |
| MAX. pressure | 1.5MPa |
| Working pressure | 0.7MPa
|
| Diameter of water inlet tube | 50mm |
| Diameter of water outlet tube | 45mm |
| 5.Power | |
| Diesel engine | 22HP, 2200r/min |
| Electrical motor | 15KW, 1460r/min |
IV.Drilling rig Manufacturer DEFY Serive
1.Professional techinical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and soloved in 24 hours.
3.Machine can be customized as per your requirement.
V: XY series drilling rig for choice
| Model | Drilling caliber | Max. drilling depth | Application Range |
| XY-100 | 300mm~75mm | 100m | Geological exploration & survey;
Mineral prospecting;
Water wells;
Blast hole;
Geothermal heat wells and so on; |
| XY-130 | 300mm~75mm | 130m |
| XY-150 | 400m~75mm | 150m |
| XY-180 | 400m~75mm | 180m |
| XY-200 | 400m~75mm | 200m |
