Stainless Steel Crimped Wire Mesh (building material)

Name: Stainless Steel Crimped Wire Mesh (building material)
Brand: tool-buy.com
SKU: 710876042
Availability: InStock
Rating: 4.5 (143 reviews)

Price:	US $ 50-60/Roll
Min Order:	10/Roll
Pay Type:	L/C,T/T

Contact Supplier

Anping Bingye Wire Mesh Products Co., Ltd.

Showroom Product Company Profile

Prod Model:	BYSS-124
Materials:	AISI 302, 304, 316, 304L and 316L.
Width:	1m to 48"
Length:	30m to 100"
Typical Weaving:	Plain Weave, Twill Weave, Dutch Weave, Plain-Dutch
Material:	SUS304
Hole Shape:	Square
Application:	Cages
Type:	Stainless Steel Plain Wire Mesh
Material Type:	Stainless Steel Wire
Weave Technique:	Plain Weave
Wire Mesh Width:	1.2m
Technique:	Woven
Nickels:	8%
Certification:	SGS

Product Description

Anping Bingye Wire Mesh Products Co.,LTD is one of the top manufacturers and exporters of stainless steel wire mesh.Our company was connected with production of metal wire mesh since 1986 in China. The machinery and apparatus used in production process fully based on the high computer technology, gaining TSE (Chinese Standard institution) certificate and ISO9001:2000.

All of our wire mesh have been exported to Europe, U.S.A, Australia, Middle East, Southeast Asia, Africa, South America and other parts or the world with the following advantages:

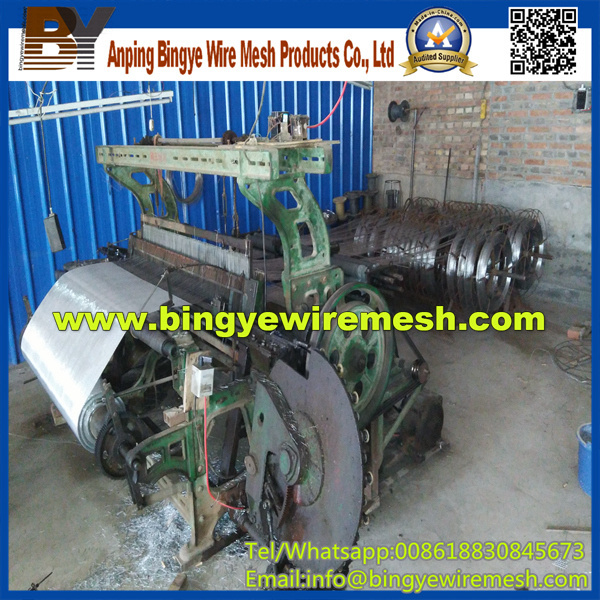

•26 sets stainless steel high mesh count looms and 50 sets P7150 Sulzer looms.
•Dedicated and experienced weavers.
•Consistent strictly quality control of products.
•On-time delivery.
•We have 15 R&D technical staffs,with more than 10 years experience.
•80% repeat customers.
•Reasonable claim refund system.
Plain Weave Stainless Steel Wire Mesh Specification:

Mesh/IN	SWG	Aperture(mm)	Wire Diameter(mm)	Mesh/IN	SWG	Aperture(mm)	Wire Diameter(mm)
1	10	22.25	3.251	16	26	1.14	0.457
2	16	11.1	1.626	16	24	1.03	0.559
2	14	10.7	2.108	20	28	0.92	0.376
2	12	10.2	2.642	20	26	0.82	0.457
3	16	6.87	1.626	24	30	0.758	0.315
3	14	6.47	2.032	30	32	0.567	0.274
4	18	5.15	1.219	30	30	0.547	0.315
4	16	4.75	1.626	40	34	0.415	0.234
5	16	3.48	1.651	50	36.5	0.318	0.19
6	20	3.33	0.914	50	36	0.308	0.193
6	18	3.03	1.219	60	37.5	0.263	0.16
8	22	2.47	0.711	80	39	0.193	0.132
8	20	2.28	0.914	100	42	0.154	0.102
8	18	1.97	1.219	120	44	0.132	0.081
10	24	1.98	0.559	150	45.5	0.104	0.065
10	26	2.09	0.457	180	47	0.019	0.051
10	20	1.64	0.914	200	47	0.077	0.051
12	26	1.67	0.457	250	48	0.062	0.041
12	24	1.56	0.559	300	48	0.045	0.041
12	22	1.41	0.711	325	48.5	0.043	0.035
14	24	1.25	0.559	400	49	0.034	0.031
16	28	1.24	0.376	500	50	0.026	0.025

Twill Weave Stainless Steel Wire Mesh Specification:

Specification List of Stainless Steel Wire Mesh
Mesh/Inch	Wire Diameter(mm)	Aperture (mm)	Filters Area%	Mesh/Inch	Wire Diameter(mm)	Aperture (mm)	Filters Area%
2	1.60	11.10	76	80	0.13	0.187	35
3	1.60	6.87	66	100/90	0.10	0.167	39
4	1.60	4.75	56	100	0.10	0.154	37
5	1.00	4.08	64	100	0.11	0.144	32
6	0.90	3.33	62	120	0.09	0.122	33
8	0.90	2.28	51	120	0.08	0.132	39
8	0.70	2.47	61	150	0.065	0.104	38
10	0.50	2.04	64	200	0.05	0.077	37
12	0.50	1.62	59	200	0.04	0.084	47
14	0.50	0.50	52	250	0.04	0.062	37
16	0.35	1.24	61	250	0.035	0.067	43
18	0.28	1.13	64	250	0.03	0.072	50
20	0.35	0.92	52	300	0.04	0.045	28
24	0.35	0.71	45	300	0.03	0.055	42
28	0.35	0.56	38	325	0.035	0.043	30
30	0.28	0.57	45	325	0.028	0.050	41
40	0.22	0.42	43	400	0.030	0.034	28
50	0.18	0.33	42	400	0.023	0.042	43
60	0.16	0.26	39	508	0.025	0.025	26
70	0.14	0.223	38	635	0.018	0.0203	25

Plain Weave Stainless Steel Wire Mesh Specification:

Mesh/IN	SWG	Aperture(mm)	Wire Diameter(mm)	Mesh/IN	SWG	Aperture(mm)	Wire Diameter(mm)
1	10	22.25	3.251	16	26	1.14	0.457
2	16	11.1	1.626	16	24	1.03	0.559
2	14	10.7	2.108	20	28	0.92	0.376
2	12	10.2	2.642	20	26	0.82	0.457
3	16	6.87	1.626	24	30	0.758	0.315
3	14	6.47	2.032	30	32	0.567	0.274
4	18	5.15	1.219	30	30	0.547	0.315
4	16	4.75	1.626	40	34	0.415	0.234
5	16	3.48	1.651	50	36.5	0.318	0.19
6	20	3.33	0.914	50	36	0.308	0.193
6	18	3.03	1.219	60	37.5	0.263	0.16
8	22	2.47	0.711	80	39	0.193	0.132
8	20	2.28	0.914	100	42	0.154	0.102
8	18	1.97	1.219	120	44	0.132	0.081
10	24	1.98	0.559	150	45.5	0.104	0.065
10	26	2.09	0.457	180	47	0.019	0.051
10	20	1.64	0.914	200	47	0.077	0.051
12	26	1.67	0.457	250	48	0.062	0.041
12	24	1.56	0.559	300	48	0.045	0.041
12	22	1.41	0.711	325	48.5	0.043	0.035
14	24	1.25	0.559	400	49	0.034	0.031
16	28	1.24	0.376	500	50	0.026	0.025

Twill Weave Stainless Steel Wire Mesh Specification:

Mesh/IN	SWG	Aperture(mm)	Wire Diameter(mm)
250	48	0.062	0.04
300	48	0.045	0.041
325	48.5	0.043	0.035
350	49	0.04	0.031
400	49	0.034	0.031
