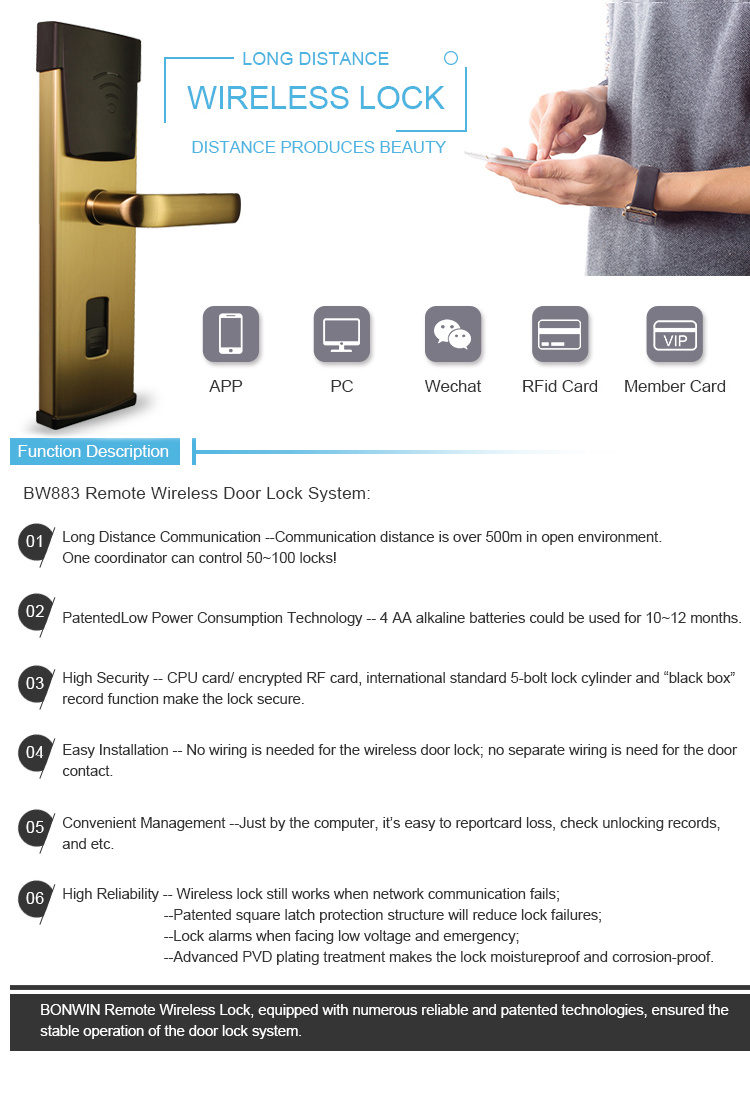

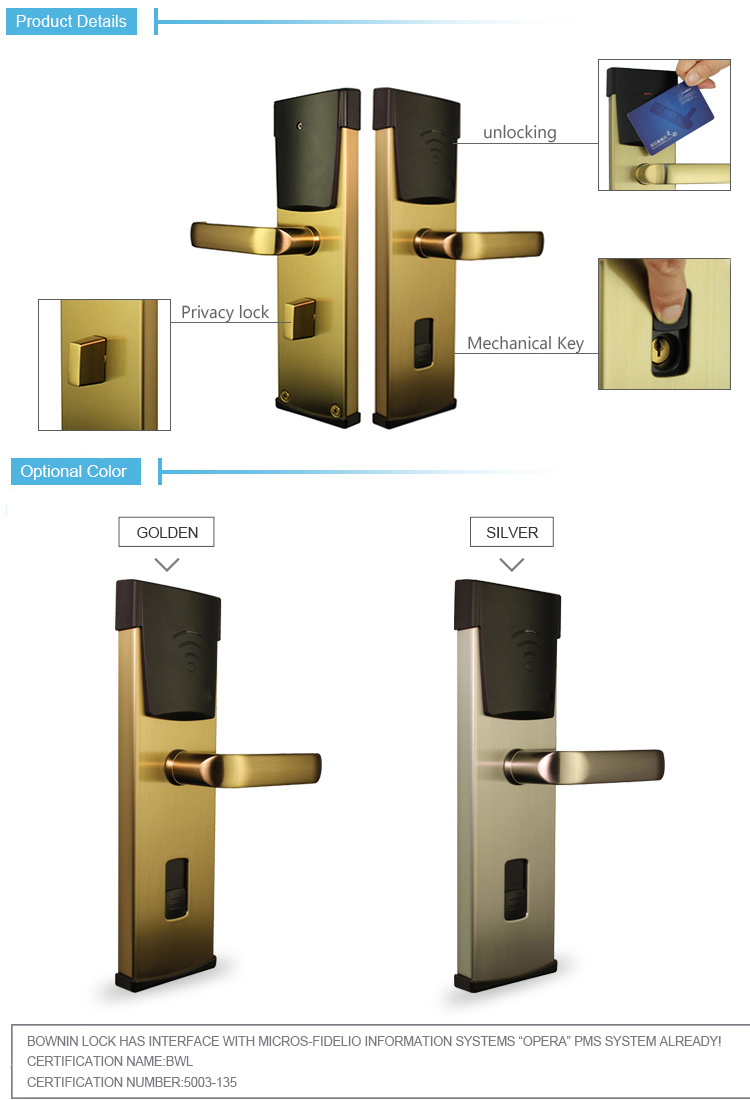

Stainless Steel Electronic APP Control Network Door Lock for Hotel
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
BW883SB-T6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
Ce, FCC |
| Suitable Door Thickness: |
38~55mm |
| Service Durability: |
More Than 300000 Times |
| Sub-GHz Frequency: |
470~525MHz |
| Sub-GHz Channels: |
220channels Can Be Chosen |
| One Controller Can Control: |
50-100 PCS Locks |
| Power Supply: |
4PCS AA Alkaline Batteries |
| Use Life: |
More Than 15 Years |
| Low Voltage Alarm: |
4.8V |
| Weight: |
4kg |
| Type: |
Electronic |
| Style: |
Modern |
| Shape: |
Mortise Door Lock |
| Part: |
Lock |
| Usage: |
Hostel/Hotel/Office |
| Material: |
Stainless Steel |
| Door Thickness Fits: |
38-55mm |
Product Description
Technical parameters and environment requirements:
| Parameters | Parameters feature and range |
| Voltage | Power supply | 4pcs AA alkaline batteries, DC6V |
| Low voltage alarm | 4.8V |
| Current | Quiescent state | 80uA |
| Dynamic state | <150mA |
| Working environment | -20ºC~55ºC; <90%RH |
| CPU | 8 bits low power consumption MCU
|
| Storage>10 years | Event Record | Off-line 200pcs |
| Blacklist | 100pcs |
| Time limited red list | 148pcs |
| Normal red list | 364pcs |
| IC identification | Frequency | 13.56MHz |
| Factory card types | Philips M1-S50/S70; Fudan Micro Card; CPU Card |
| Identification distance | 2~3cm |
| Function | Support IC card configuring networking parameter,
setting password, room information, Authorizing to
report the loss of cards, opening or
closing door locks |
Sub-GHz | frequency | 470-525MHz |
| Information channel | About 220 communication channels can be chose |
| Receiving sensitivity | -95dBm |
| Transmit Power | +2.5dBm |
| Power handing peak | 10 dBm |
| RSSI Range | -95 dBm to -10 dBm |
| Output Impedance | 50Ω |
| communication distance | 500m range of visibility
|
| audible and visual indication | buzzer , Red Blue indicator light |
Incident
| alarm monitoring | Main lock tongue, mechanical key, Drawer switch
detection (avoid disturbance) |
| Low Battery Detection | Battery voltage monitoring |
| Door location State | Change of door location |
| Door Lock Switch | Reporting incident records by IC card |
| Remote Control | Open or close door lock by remote control, authorize
or revoke IC card by remote control |
| performance | Battery Life | 7200~8640 hours |
| mechanical endurance | Drawer cannot be open in the case of anti tongue
in the open state |
| Applicative door thickness | 38~55mm; |
| Drawer lock protection | Drawer cannot be open in the case of anti tongue
in the open state |
| secret key |
Double secret keys authentication including systematic
secret key and card secret key |
Changzhou Bonwin Technology Co., Ltd
Bonwin Technology Co., Ltd, founded in 2003, is located in the south of Yangtze River which is a picturesque place gathering many human talents. Since establishment, Bonwin has been focusing on the development and application of Hotel Room Intelligent Management System, intelligent locks and management software and concentrating on creating high-quality products. For almost 10 years, Bonwin has become the one of the leading manufacturers of hotel management system & intelligent locks in eastern China.
Our main products are:
1. Intelligent door locks: MIFARE card lock, EM card lock, IC card lock, Wireless Networking lock
2. Intelligent Cabinet locks: EM card cabinet lock, TM card cabinet lock
3. Hotel intelligent management system:
4. Electronic Safe box
5. Access Control System
6. Network lock system
7. Energy-saving Switch
Our goods are suitable for hotels, residential areas and business buildings
"Customer satisfaction" is our objective. We have established ISO9001 quality control system since 2007. Bonwin always insists on the policy "constantly striving for excellence". "The better the process is controlled, the better the outcome is" is our quality management principle.
Technology and innovation is the engine of Bonwin rapid development. As a high-tech enterprise of Jiangsu province, Bonwin has won more than 20 patents at this field, such as the national patent of invention, patent of utility model, etc., as well as a lot of honors, such as High-tech enterprise of Jiangsu province, ISO9001 quality certificate, security certificate of the Ministry of Public Security, CE certificate, FCC certificate, etc.
"Accurate, timely, careful, in place" is our consistent service standard. Perfect after-sales service is the fundamental guarantee to improve customer satisfaction. For 3 years in succession, clients' satisfactions have remained above 95%.
Bonwin people continue to forge ahead. The selling network has widely covered the whole country of China, and the products also sells good in more than 40 countries and regions from Europe, Asia, the America, Africa, and Oceania. Bonwin locks have serviced more than 7000 star-rated hotels and more than 10000 high-graded sauna/swimming centers.
Bonwin has built a good relationship with some international chain hotels, such as RAMADA, DAYS INN, GLORIA, Howard Johnson, etc. And is a long-term partner of more than 300 five-star hotels in China, for example: Jiangsu Jinling Hotel, Beijing Capital Tourism Jianguo Hotel, Zhejiang World Trade Jun LAN Hotel, , Shanxi Tourism Group, Jiangsu Blue Fast Boat hotel, etc.
In this fast-changing market competition, Bonwin keeps on challenge himself and make positive innovation. His eternal goal and pursuing is to form excellent teams, create national boutiques, and offer sincere services, marching to be a world famous brand!
