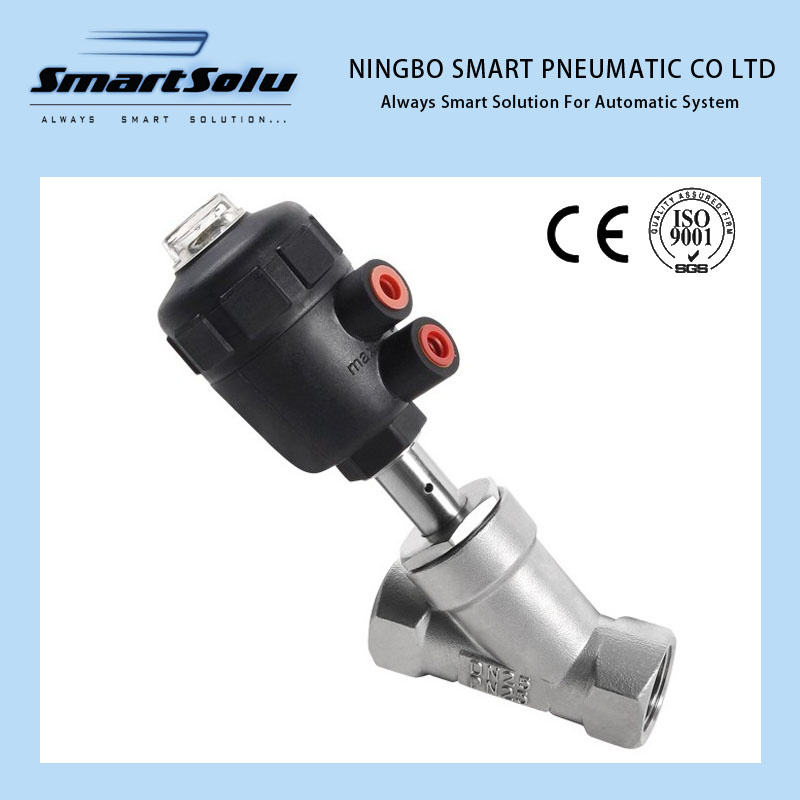

Stainless Steel Material Pneumatic Angle Seat Valve

Name: Stainless Steel Material Pneumatic Angle Seat Valve
Brand: tool-buy.com
SKU: 676301215
Availability: InStock
Rating: 4.9 (132 reviews)

Price:	US $ 10-15/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Ningbo Hi-Tech Smart Pneumatic Co., Ltd.

Showroom Product Company Profile

Prod Model:	angle seat valve
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Close Type:	Normal Open and Normal Close
Temperature:	0 to 180
Seal:	NBR, Viton, Ptfm
Usage:	Food Industry
Type:	Pneumatic Valve
Condition:	New

Product Description

Wide Application

Beer
Textile printing and dying
Pharmacy and mediacl equipment
Foodstuff processing
Rubber machinery
Organic and inorganic chemical
Industry
Washing, disinfection & high temperature killing bacteria
Water/sewage disposal

Standard type
The valve is closed with spring force, and opend when the actuator piston is pushed by compressed air.

Why choose us?

(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.

(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.

(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.

(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.

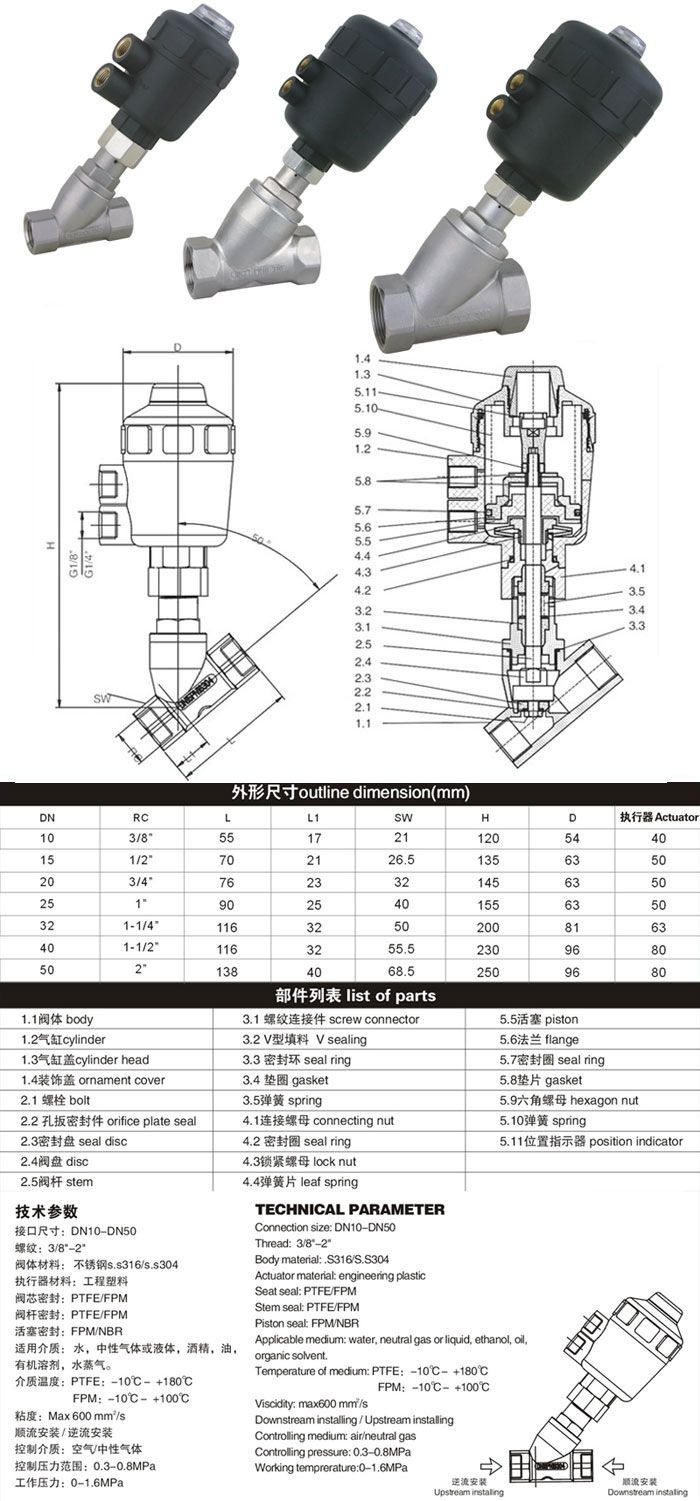

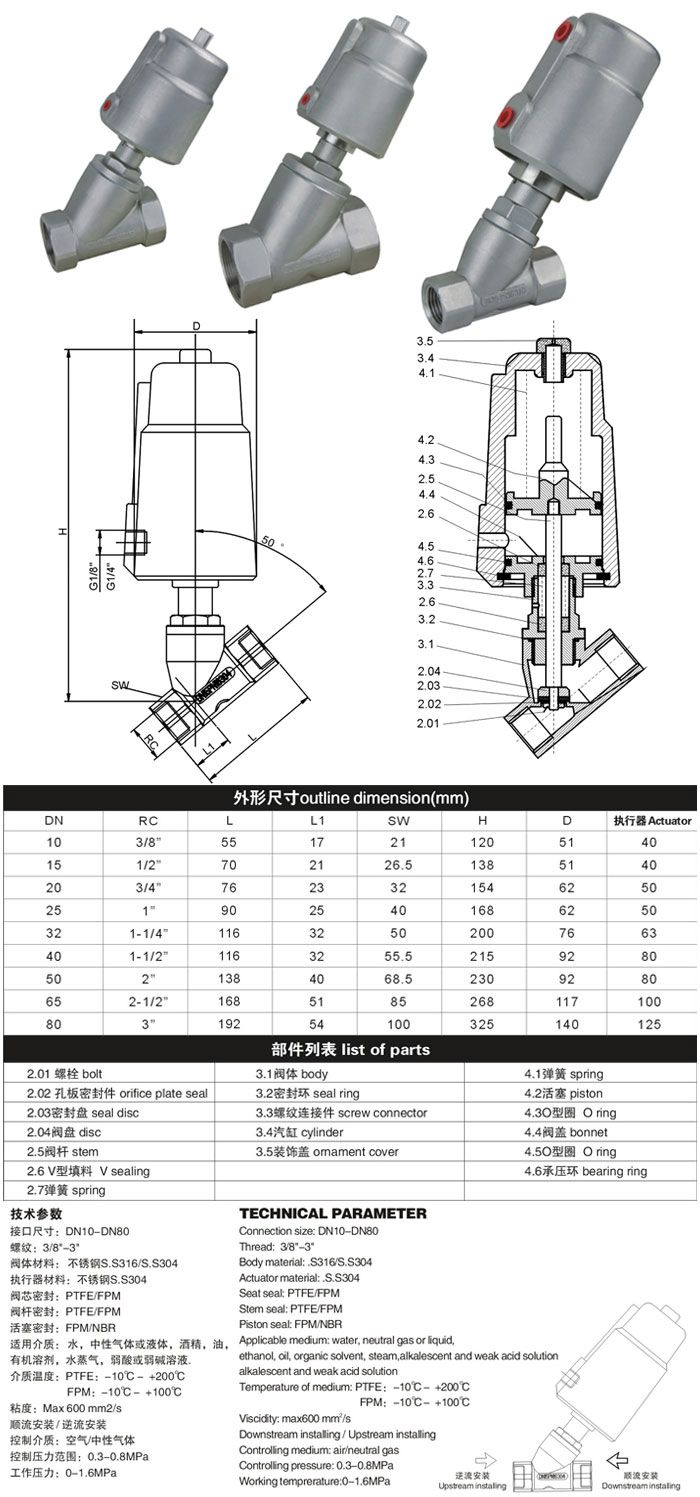

Connection Type& standard	Size DN	Actuator (mm)	Inner Dia. mm	KV m 3 /h	Working Pressure (MPa)	Control Pressure (MPa)	Size(mm)												Model No.
Connection Type& standard	Size DN	Actuator (mm)	Inner Dia. mm	KV m 3 /h	Working Pressure (MPa)	Control Pressure (MPa)	K	D	R	A	G	L	T	SW	LA	LB	S	O.D.	Normally Closed	Double Action
Threaded Connection Type	DN15	50	13	4.7	0-1.6	0.3-0.8	126	60	35	133	G1/2"	68	15	26.6	/	/	/	/	100104	200204
	DN20	50	18	9.5	0-1.6	0.3-0.8	131	60	35	137	G3/4"	75	16	32	/	/	/	/	100106	200206
	DN25	50	24	18.1	0-1.6	0.3-0.8	140	60	35	149	G1"	90	17	39.5	/	/	/	/	100108	200208
	DN25	63	24	18.1	0-1.6	0.3-0.8	165	77	43	174	G1"	90	17	39.5	/	/	/	/	100100	200210
	DN32	63	31	23.1	0-1.6	0.3-0.8	175	77	43	188	G1 1/4"	116	21	50	/	/	/	/	100110	200110
	DN42	63	35	32.9	0-1.6	0.3-0.8	178	77	43	190	G1 1/2"	126	20	55.3	/	/	/	/	100112	200212
	DN50	63	45	52.8	0-1.0	0.3-0.8	184	77	43	203	G2"	138	22	70	/	/	/	/	100116	200216
Weld Conection Type DIN11850.2	DN15	50	13	4.7	0-1.6	0.3-0.8	126	60	35	140	/	/	/	/	110	30	1.5	19	302104	302204
	DN20	50	18	9.5	0-1.6	0.3-0.8	131	60	35	136	/	/	/	/	108	30	1.5	23	302106	302206
	DN25	50	24	18.1	0-1.6	0.3-0.8	140	60	35	150	/	/	/	/	112	32	1.5	29	302108	302208
	DN25	63	24	18.1	0-1.6	0.3-0.8	165	77	43	175	/	/	/	/	112	32	1.5	29	302100	302200
	DN32	63	31	23.1	0-1.6	0.3-0.8	175	77	43	193	/	/	/	/	136	32	1.5	35	302110	302210
	DN40	63	35	32.9	0-1.6	0.3-0.8	178	77	43	193	/	/	/	/	146	40	1.5	41	302112	302212
	DN50	63	45	52.8	0-1.0	0.3-0.8	184	77	43	206	/	/	/	/	160	40	1.5	53	302116	302216
Weld Conection Type DIN11850.3	DN15	50	13	4.7	0-1.6	0.3-0.8	126	60	35	140	/	/	/	/	110	30	2	20	303104	303204
	DN20	50	18	9.5	0-1.6	0.3-0.8	131	60	35	136	/	/	/	/	108	30	2	24	303106	303206
	DN25	50	24	18.1	0-1.6	0.3-0.8	140	60	35	150	/	/	/	/	112	32	2	30	303108	303208
	DN25	63	24	18.1	0-1.6	0.3-0.8	165	77	43	175	/	/	/	/	112	32	2	30	303100	303200
	DN32	63	31	23.1	0-1.6	0.3-0.8	175	77	43	193	/	/	/	/	136	40	2	36	303110	303210
	DN40	63	35	32.9	0-1.6	0.3-0.8	178	77	43	193	/	/	/	/	146	40	2	42	303112	303212
	DN50	63	45	52.8	0-1.0	0.3-0.8	184	77	43	206	/	/	/	/	160	45	2	54	303116	303216
Weld Conection Type ISO2037	DN15	50	13	4.7	0-1.6	0.3-0.8	126	60	35	140	/	/	/	/	110	30	1.2	21.3	304104	304204
	DN20	50	18	9.5	0-1.6	0.3-0.8	131	60	35	136	/	/	/	/	108	30	1.2	25	304106	304206
	DN25	50	24	18.1	0-1.6	0.3-0.8	140	60	35	150	/	/	/	/	112	32	1.2	33.7	304108	304208
	DN25	63	24	18.1	0-1.6	0.3-0.8	165	77	43	175	/	/	/	/	112	32	1.2	33.7	304100	304200
	DN32	63	31	23.1	0-1.6	0.3-0.8	175	77	43	193	/	/	/	/	136	40	1.2	38	304110	304210
	DN40	63	35	32.9	0-1.6	0.3-0.8	178	77	43	193	/	/	/	/	146	40	1.2	40	304112	304212
	DN50	63	45	52.8	0-1.0	0.3-0.8	184	77	43	206	/	/	/	/	160	45	1.2	51	304116	304216
