| Prod Model: |
TPC |
| Type': |
Normal Open and Normal Close |
| Size: |
1/8 to 2" |
| Temperature: |
0 to 150 |
| Seal: |
NBR, Viton, Ptfm |
| Voltage: |
12, 24, 110, 220 |
| Connection Form: |
Thread |
| Type: |
Distribution of Direct Acting |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Power Supply: |
AC Solenoid Valve |
| Application: |
Industrial Usage |

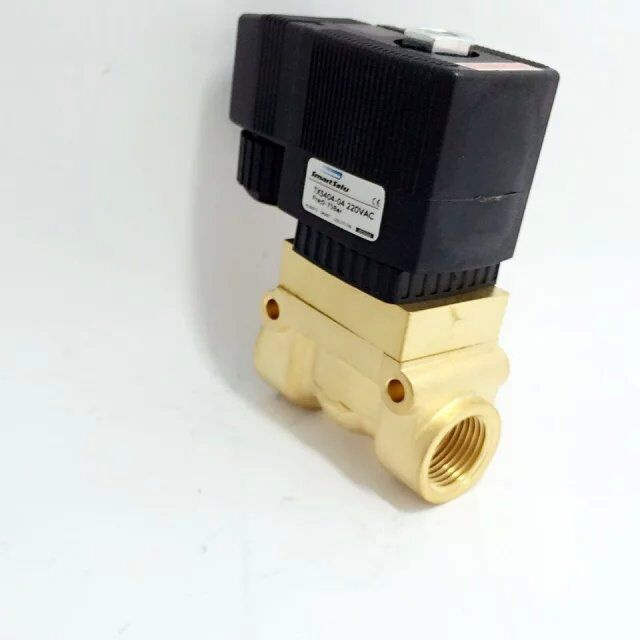

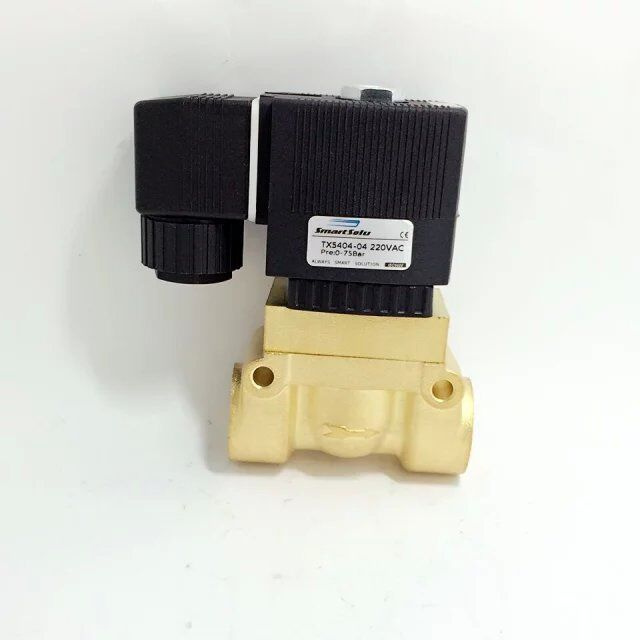

Product Description
Operated way: Pilot-operated
Control way: Nc(standard), no
Pipe size: G1/4~g2(standard)
Dn: Dn10~50mm
Pn: The highest pn: 1.6mpa
Medium: Neutral gas and liquid
Viscosity: ≤ 21mm2/s
Medium temperature: -10~+80(+130, )
Circumstance temperature: -10~+50
Material: Brass
Sealing material: NBR(standard), FPM\EPDM
Standard voltage: AC: 220V(50/60Hz)
DC: 24V
Changeable of the voltage: ± 10%
Working period: Coil can work continuously
Connecting: Junction box(plug), IP65
Installation: Head is up straight
Connecting: Junction box(plug), IP65
Installation: Head is up straight
| Standard: |
| Item no. | DN
(mm) | PIPE SIZE
(G) | PN
(MPa) | Kv
(m3/h) | circumstance temperature
(-) | medium temperature
(-) |
2231008B
2231008BT | 10 | 1/4 | 0.02-1.0 | 1.4 | -10-+50 | -10-+80 |
2231010B
2231010BT | 10 | 3/8 | 0.02-1.0 | 1.4 |
2231015B
2231015BT | 10 | 1/2 | 0.02-1.0 | 1.4 |
| 2231015-14B | 14 | 1/2 | 0.02-1.0 | 2.52 |
| 2231020B | 14 | 3/4 | 0.02-1.0 | 2.52 |
| 2231020-20B | 20 | 3/4 | 0.02-1.6 | 5.0 |
| 2231025B | 20 | 1 | 0.02-1.6 | 5.0 |
| 2231032B | 40 | 11/4 | 0.05-1.6 | 18 |
| 2231040B | 40 | 11/2 | 0.05-1.6 | 18 |
2231050B | 50 | 2 | 0.05-1.6 | 28 |
Why choose us?
(1) Quality, we only produce top-level quality products, we promise that all of our product's raw material are first class, and good quality system controls, so our goods' quality is very good.
(2) Price, our policy is that "Win-to-Win". That means in view of our long-standing business relationships, we only take small profit to help you for the marketing.
(3) Delivery, we alway have some products in stock, so we can complete the delivery within the time stipulated before.
(4) No MOQ, I think it is an attractive condition to some of you who have no big demands for each items temporarily.
Ningbo Hi-Tech Smart Pneumatic Co., Ltd. is specialized in manufacturing all kinds of hydro pneumatic components, aluminum parts and plastic parts. Our main products are including pneumatic cylinder, (air cylinder), solenoid valve, air filter, air regulator, air lubricator, pneumatic fitting, hydraulic fitting, tubes, muffler (silencer) etc.
SMART PNEUMATIC take the lead in passing ISO9001 quality system certification and UKAS system certification in this industry and equip with a complete set equipment (CNC machine, data control lathe, and all kinds of testing machines) and checkout system. Under the joint effort of all our members, SMART PNEUMATIC has already established a strong foundation today.
SMART PNEUMATICS' Sprit is to give you the best quality, the competitive price, the quick delivery, the perfect service. Our goal to customers is "Always Smart Solution for your Automatic System. "
SMART PNEUMATIC believes our profession and efficiency will make your international business easier and quicker.
SMART PNEUMATIC hopes to work together with you, developing in parallel!
