| Prod Model: |
MISCC-10-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Western Europe |
| One-Piece: |
with Keyway |
| Two-Piece: |
Easy Assembly |
| Clamping Type: |
Use on Hardened Shaft |
| Carbon Steel: |
Black Oxidized |
Product Description

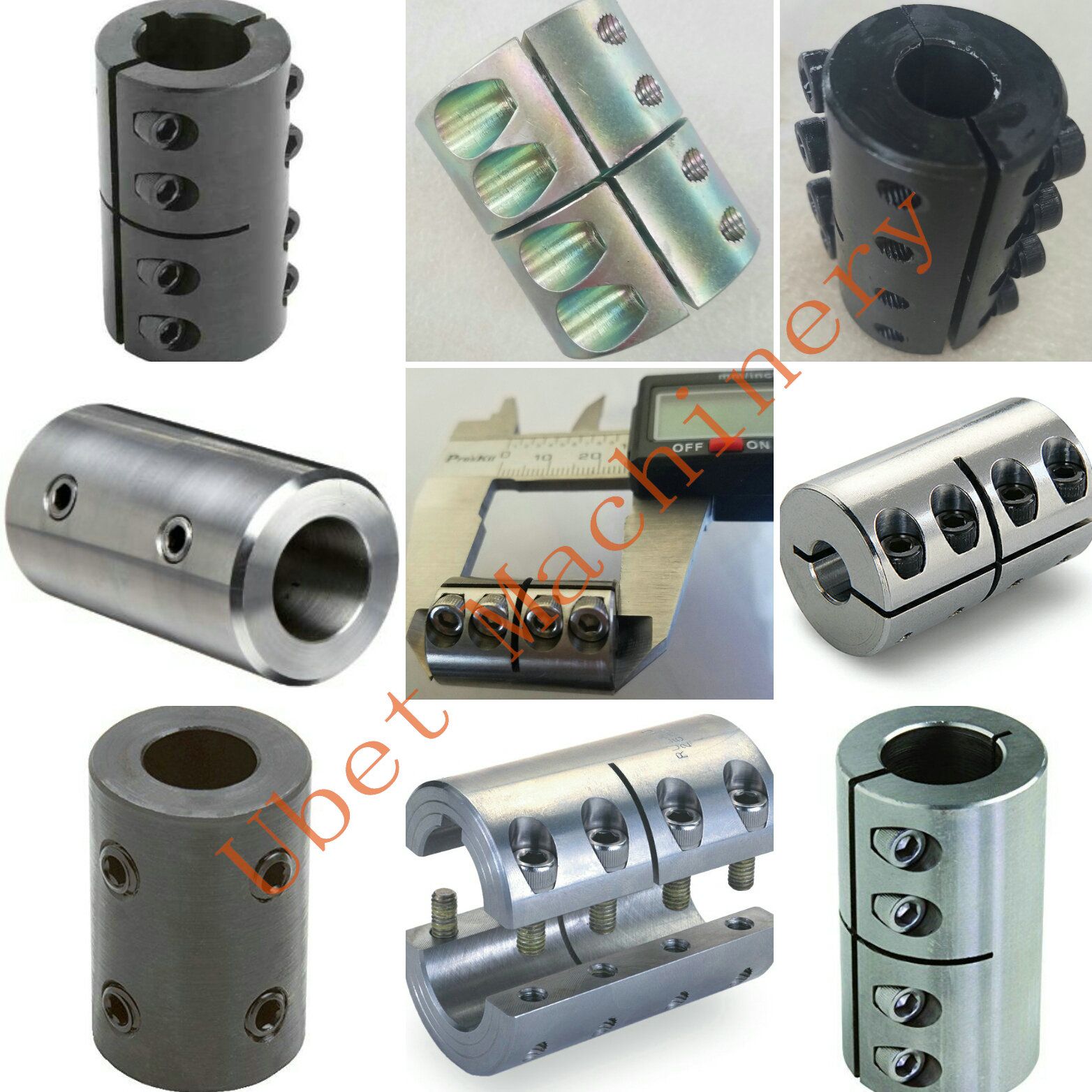

Ubet Rigid Shaft Coupling
Design available: one-piece or two-piece or set screw
With keyway or without keyway
Material available: Aluminum
Carbon Steel Black Oxidized
Stainless Steel
Size available: 6mm to 50mm shaft fit
1/4'' to 2'' shaft fit
Features: Cost saving for economy
High torque capacity
Zero backlash
Without the shaft damage and fretting
Misalignment free
Clamp Style Rigid Couplings for applications where alignment is critical, no backlash is desired, and flexibility is not required. The one-piece rigid coupling wraps around the shaft, providing high torsional holding power without the shaft damage and fretting. The two-piece rigid coupling has the additional benefit of allowing for disassembly and maintenance without removal of other components.
| Black Oxide Steel | Stainless Steel | Inner Dia mm | Outer Dia mm | Length mm | Clamp Screw | Weight g |
| RSC1-6-ST | RSC1-6-SS | 6 | 18 | 30 | M 3 x 8 | 47 |
| RSC1-8-ST | RSC1-8-SS | 8 | 24 | 35 | M 3 x 10 | 102 |
| RSC1-10-ST | RSC1-10-SS | 10 | 29 | 45 | M 4 x 12 | 185 |
| RSC1-12-ST | RSC1-12-SS | 12 | 29 | 45 | M 4 x 12 | 180 |
| RSC1-14-ST | RSC1-14-SS | 14 | 34 | 50 | M 5 x 16 | 272 |
| RSC1-15-ST | RSC1-15-SS | 15 | 34 | 50 | M 5 x 16 | 266 |
| RSC1-16-ST | RSC1-16-SS | 16 | 34 | 50 | M 5 x 16 | 261 |
| RSC1-20-ST | RSC1-20-SS | 20 | 42 | 65 | M 6 x 16 | 518 |
| RSC1-25-ST | RSC1-25-SS | 25 | 45 | 75 | M 6 x 16 | 623 |
| RSC1-30-ST | RSC1-30-SS | 30 | 53 | 83 | M 6 x 18 | 920 |
| RSC1-35-ST | RSC1-35-SS | 35 | 67 | 95 | M 8 x 25 | 1880 |
| RSC1-40-ST | RSC1-40-SS | 40 | 77 | 108 | M 8 x 25 | 2710 |
| RSC1-50-ST | RSC1-50-SS | 50 | 85 | 124 | M 10 x 25 | 3520 |
| Black Oxide Steel | Stainless Steel | Inner Dia mm | Outer Dia mm | Length mm | Clamp Screw | Weight g |
| RSC2-6-ST | RSC2-6-SS | 6 | 18 | 30 | M 3 x 8 | 47 |
| RSC2-8-ST | RSC2-8-SS | 8 | 24 | 35 | M 3 x 10 | 102 |
| RSC2-10-ST | RSC2-10-SS | 10 | 29 | 45 | M 4 x 12 | 185 |
| RSC2-12-ST | RSC2-12-SS | 12 | 29 | 45 | M 4 x 12 | 180 |
| RSC2-14-ST | RSC2-14-SS | 14 | 34 | 50 | M 5 x 16 | 272 |
| RSC2-15-ST | RSC2-15-SS | 15 | 34 | 50 | M 5 x 16 | 266 |
| RSC2-16-ST | RSC2-16-SS | 16 | 34 | 50 | M 5 x 16 | 261 |
| RSC2-20-ST | RSC2-20-SS | 20 | 42 | 65 | M 6 x 16 | 518 |
| RSC2-25-ST | RSC2-25-SS | 25 | 45 | 75 | M 6 x 16 | 623 |
| RSC2-30-ST | RSC2-30-SS | 30 | 53 | 83 | M 6 x 18 | 920 |
| RSC2-35-ST | RSC2-35-SS | 35 | 67 | 95 | M 8 x 25 | 1880 |
| RSC2-40-ST | RSC2-40-SS | 40 | 77 | 108 | M 8 x 25 | 2710 |
| RSC2-50-ST | RSC2-50-SS | 50 | 85 | 124 | M 10 x 25 | 3520 |
Ubet Machinery is also competetive on these power transmission components.
Ubet Machinery is a global supplier for Mechanical Power Transmission Parts. It is aimed to provide best quality products at best price. With many years of experience in this industry, it can offer customers practical value.
It focuses mainly on Keyless Locking Devices, Timing Belt Pulleys, Nylon Sleeve Couplings/ Curved-tooth Gear Couplings, Jaw Couplings, Gears and other parts. It boasts a team with rich experience in this industry, focusing on global market. Customers are mostly from Europ, North America, South America, Southeast Asia and other regions.
Hight standard quality, delivery punctuality, competitive price and reliability are it's core value for customer. Any of your inquires or comments will highly be appreciated.
