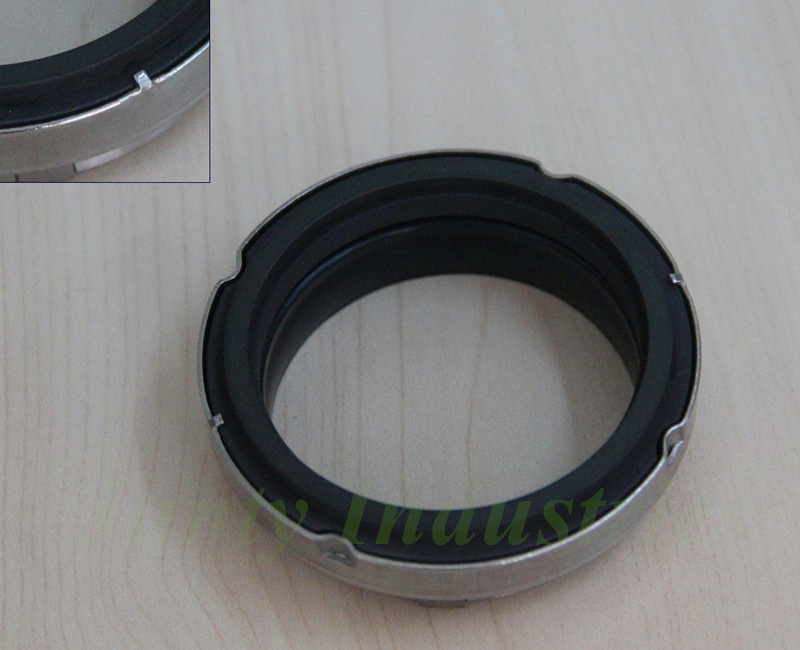

Standard Machinery Seal Rings for Pumps
| Price: |
US $ 1-100/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
SSIC SIC |
| Sizes: |
in mm |
| Original: |
China |
| Thickness: |
Standard |
| Compressive Strength: |
Standard |
| Standard: |
Nonstandard |
Product Description
We offer many kinds of Elastomer Bellows Seals in both metric sizes and inch sizes, according to several international standards.
Technical Features
l Single Seal
l Unbalanced
l Spring enclosed
l Elastomer bellows
Maximum Operating Limits
l d1=10-100 mm,
l p1=1.2 MPa
l t = -35 - 160 ºC
l Vg=10 m/s
Standard Material
l Rotary faces: carbon graphite, silicon carbide, carbon graphite
l Stationary seats: alumina ceramic, silicon carbide, carbon graphite, Cr-Mo steel
l Bellows, secondary seals: CR, EPDM, FPM, FEPM, HNBR, NBR
l Springs, other matel components: AISI 304, 316 | | | J1311 | J1312 | J1313 | GS60 |

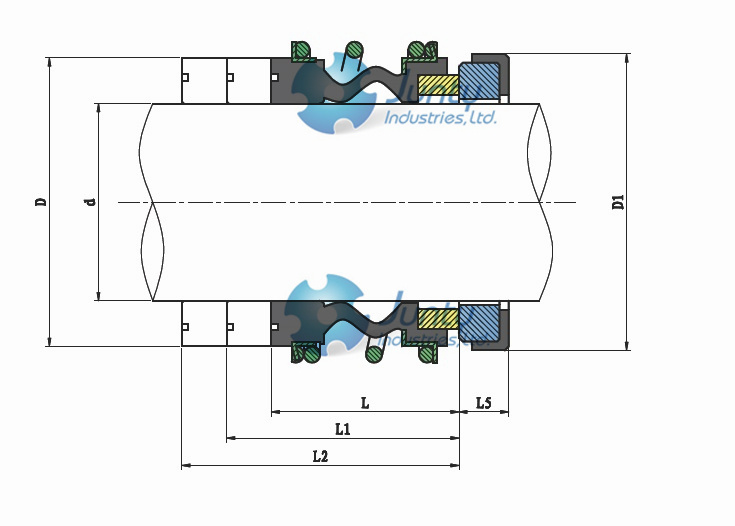

| Φd | ΦD | L | L1 | L2 | ΦD1 | L1 |
| 10 | 22.5 | 14.5 | 25.9 | 33.4 | 21 | 6.6 |
| 12 | 25.0 | 15.0 | 25.9 | 33.4 | 23 | 6.6 |
| 14 | 28.5 | 17.0 | 28.4 | 33.4 | 25 | 6.6 |
| 15 | 28.5 | 17.0 | 28.4 | 33.4 | 27 | 6.6 |
| 16 | 28.5 | 17.0 | 28.4 | 33.4 | 27 | 6.6 |
| 18 | 32.0 | 19.5 | 30.0 | 37.5 | 33 | 7.5 |
| 20 | 37.0 | 21.5 | 30.0 | 37.5 | 35 | 7.5 |
| 22 | 37.0 | 21.5 | 30.0 | 37.5 | 37 | 7.5 |
| 24 | 42.5 | 22.5 | 32.5 | 42.5 | 39 | 7.5 |
| 25 | 42.5 | 23.0 | 32.5 | 42.5 | 40 | 7.5 |
| 28 | 49.0 | 26.5 | 35.0 | 42.5 | 43 | 7.5 |
| 30 | 49.0 | 26.5 | 35.0 | 42.5 | 45 | 7.5 |
| 32 | 53.5 | 27.5 | 35.0 | 47.5 | 48 | 7.5 |
| 33 | 53.5 | 27.5 | 35.0 | 47.5 | 48 | 7.5 |
| 35 | 57.0 | 58.5 | 35.0 | 47.5 | 50 | 7.5 |
| 38 | 59.0 | 30.0 | 36.0 | 46.0 | 56 | 9.0 |
| 40 | 62.0 | 30.0 | 36.0 | 46.0 | 58 | 9.0 |
| 42 | 65.5 | 30.0 | 36.0 | 51.0 | 61 | 9.0 |
| 43 | 65.5 | 30.0 | 36.0 | 51.0 | 61 | 9.0 |
| 45 | 68.0 | 30.0 | 36.0 | 51.0 | 63 | 9.0 |
| 48 | 70.5 | 30.5 | 36.0 | 51.0 | 66 | 9.0 |
| 50 | 74.0 | 30.5 | 38.0 | 50.5 | 70 | 9.5 |
| 53 | 78.5 | 33.0 | 36.5 | 59.0 | 73 | 11.0 |
| 55 | 81.0 | 35.0 | 36.5 | 59.0 | 75 | 11.0 |
| 58 | 85.5 | 37.0 | 41.5 | 59.0 | 78 | 11.0 |
| 60 | 88.5 | 38.0 | 41.5 | 59.0 | 80 | 11.0 |
| 65 | 93.5 | 40.0 | 41.5 | 69.0 | 85 | 11.0 |
| 68 | 96.5 | 40.0 | 41.5 | 68.7 | 90 | 11.3 |
| 70 | 99.5 | 40.0 | 48.7 | 68.7 | 92 | 11.3 |
| 75 | 107.0 | 40.0 | 48.7 | 68.7 | 97 | 11.3 |
| 80 | 112.0 | 40.0 | 48.0 | 78.0 | 105 | 12.0 |
| 85 | 120.0 | 41.0 | 46.0 | 76.0 | 110 | 14.0 |
| 90 | 127.0 | 45.0 | 51.0 | 76.0 | 115 | 14.0 |
| 95 | 132.0 | 46.0 | 51.0 | 76.0 | 120 | 14.0 |
| 100 | 137.0 | 47.0 | 51.0 | 76.0 | 125 | 14.0 |
Junty Industries, Ltd.Specializes in supplying Sealing Products and Wear Resistant Components to the Fluid and Gas Control Industries worldwide.
The company is certified to ISO 9001:2008 quality management system by Lloyds' Register.Due to our strict adherence to the quality management system, and also through the hard work of all our dedicated employees, the company has been growing steadily with our products increasingly distributed all over the world.
We do not want to simply sell you a product, we'd rather wish to become your reliable partner by offering the following:
1.Products:

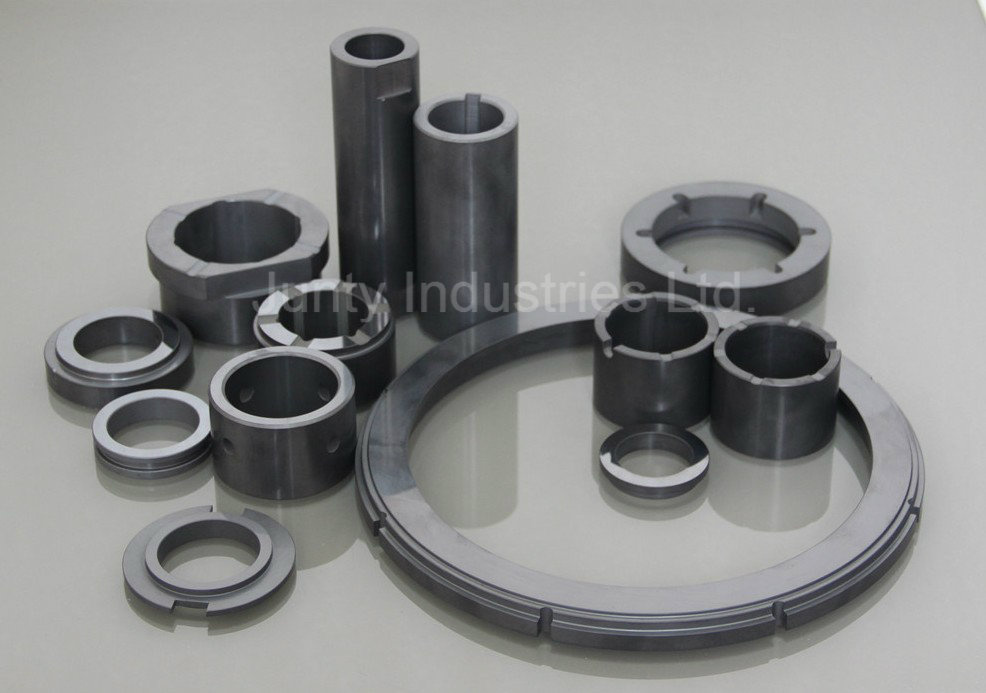

Seal Faces / Rings
Bushings / Washers
Mechanical Seals
Spray Nozzles
Rotary Unions
Tailor-made products (to your specifications)...
2.Materials
Silicon Carbide (both Reaction Bonded SiC and Sintered SiC)
Tungsten Carbide (both Cobalt bonded and Nickel bonded TC)
Carbon Graphite (both resin-impregnated and metal-impregnated)
Aluminum Oxide (Al2O3 Ceramic)
Zirconia (Zr2O3)
Stainless Steel (AISI 304, AISI 316, Alloy C, etc.)
Elastomers (Fluorcarbon, EPDM, NBR, H-NBR, Silicone, etc.)
PTFE
3.Quality Control
Converting customers' drawings into our manufacturing drawings
Manufacturing drawings verified prior to production
On-line inspection during production phases
Each product is inspected prior to dispatch
Applying Corrective Actions to customer complaints
4.Services
Timely response
On time delivery
Shipping arrangements
