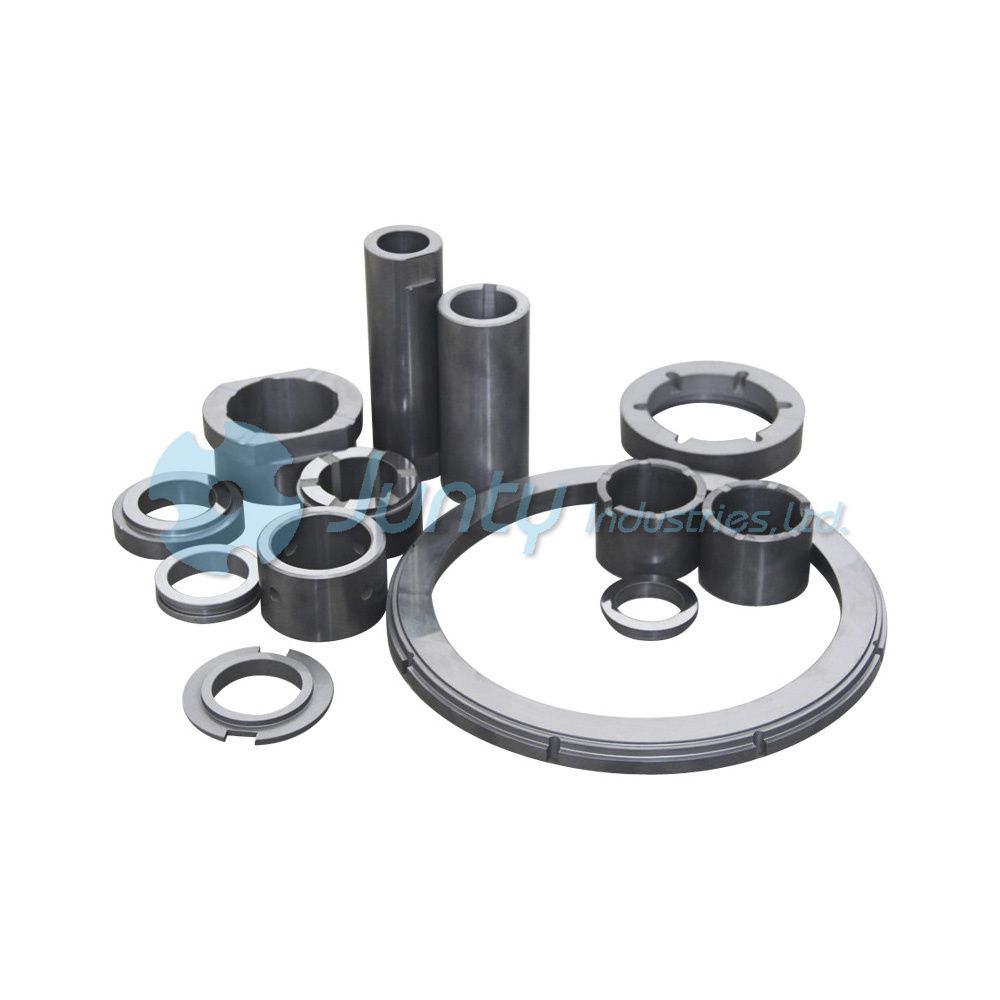

Various Sizes of Seal Rings Faces, Bushings and Wear Parts
| Price: |
US $ 5-2000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Tailored-made |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Style: |
Mechanical Seal |
| Shape (for Gasket): |
Ring |
| Function: |
Shaft Sealing |
| Shape: |
O-Ring |
| Standard: |
Nonstandard |
| Application: |
Pump Seal |
| Material: |
Silicon Carbide, Tungsten Carbide, Carbon, Alumina |
Product Description
Standard or non-standard bushing/sleeve/bearing, tailor-made parts according to the customers'drawings or samples.
Materials include:
-Silicon Carbide (SSIC, SIC+C, &RB SiC)
-Tungsten Carbide (6% Nickel TC ,6% Cobalt TC& 8% Cobalt TC )
-Carbon Graphite (Resin bonded carbon,Resin impregnated carbon,Metal impregnated carbon)
-Aluminum Oxide Ceramic (purity ranges from 95% up to 99.5%)
Technical data of our material is as below:| Parameter | Unit | 6% Ni - TC | 6% Co - TC |
| Density | g/cm 3 | 14.5 - 14.9 | 14.7 - 15.0 |
| Binder | | 6% Nickel | 6% Cobalt |
| Crystal Size | µ m | 1.2 | 1.2 |
| Hardness | Rockwell | HRA 89.5 | HRA 90 |
Minimum Transverse
Rupture Strength | MPa | 1800 | 1800 |
| psi | 261, 000 | 261, 000 |
| Parameter | Unit | RB SiC | SSiC |
| Density | g/cm3 | 3.0 - 3.05 | 3.1 |
| Free Silicon Content | - | 12% | - |
| Crystal Size | µm | 8 - 20 | 5 - 7 |
| Hardness | Rockwell | HRA 90 | HRA 93 |
| Compressive Strength | MPa | 2700 | 3000 |
| Flexural Strength | MPa | 400 | 400 |
| Fracture Toughness | MPa | 4.3 | 4.5 |
| Elastic Modulus | GPa | 390 | 410 |
| Poisson's Ratio | - | 0.15 | 0.15 |
| Coefficient of Thermal Expansion | 1 x 10-6 / K | 4.3 | 4.3 |
| Parameter | Unit | J1118F | J2163K | Resin Bonded Carbon |
| Density | g/cm 3 | 1.70 | 1.82 | 1.68 |
| Impregnation |
| Phenolic Resin | Furan Resin | Phenolic Resin |
| Hardness |
| HS 85 | HS 90 | HS 60 |
| Compressive Strength | MPa | 210 | 220 | 147 |
| psi | 30, 000 | 31, 800 | 21, 300 |
| Flexural Strength | MPa | 65 | 75 | 54 |
| psi | 9, 500 | 10, 100 | 7, 800 |
| Porosity | % | 1.0 - 2.0 | 1.0 - 2.0 | 0.3 |
Coefficient of
Thermal Expansion | 1 x 10 -6 / K | 5 | 5.5 | - |
| Maximum Working Temperature | o C | 200 | 200 | 200 |
| o F | 400 | 400 | 400 |
Junty Industries, Ltd.Specializes in supplying Sealing Products and Wear Resistant Components to the Fluid and Gas Control Industries worldwide.
The company is certified to ISO 9001:2008 quality management system by Lloyds' Register.Due to our strict adherence to the quality management system, and also through the hard work of all our dedicated employees, the company has been growing steadily with our products increasingly distributed all over the world.
We do not want to simply sell you a product, we'd rather wish to become your reliable partner by offering the following:

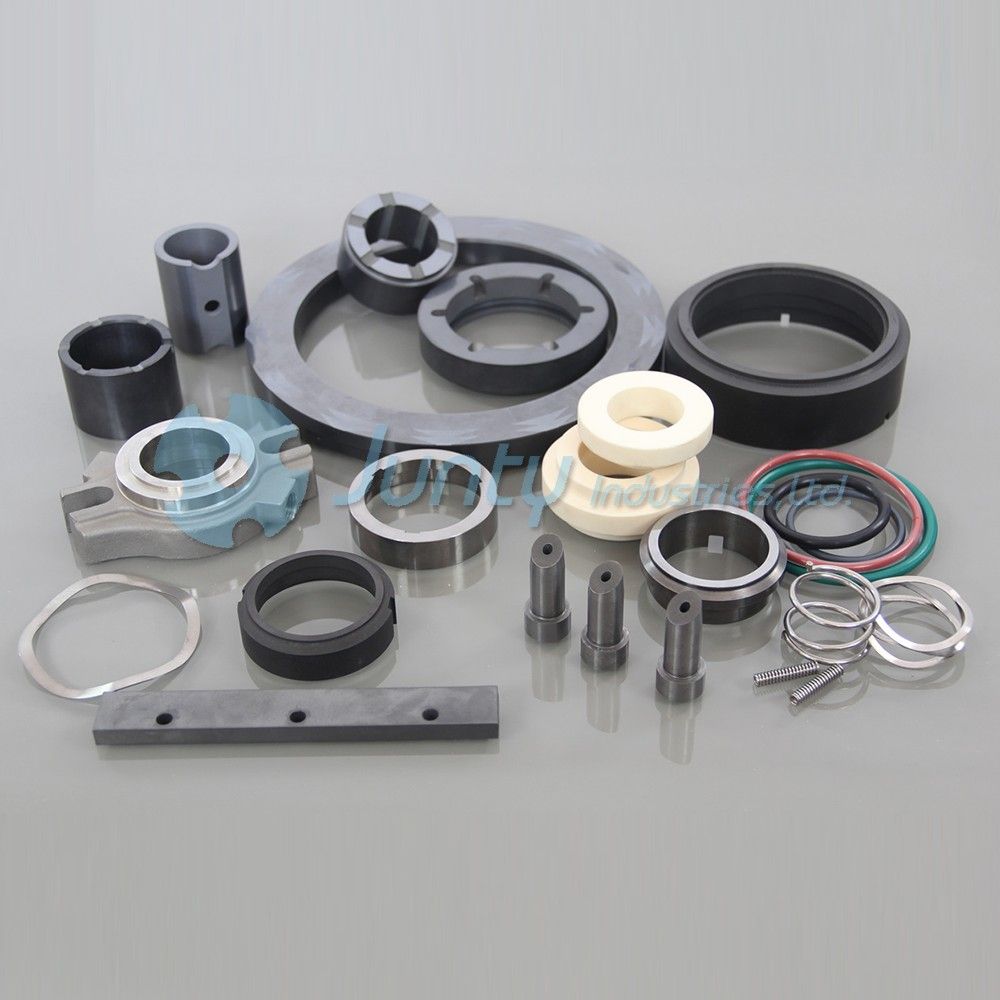

1.Products:
Seal Faces / Rings
Bushings / Washers
Mechanical Seals
Spray Nozzles
Rotary Unions
Tailor-made products (to your specifications)...
2.Materials
Silicon Carbide (both Reaction Bonded SiC and Sintered SiC)
Tungsten Carbide (both Cobalt bonded and Nickel bonded TC)
Carbon Graphite (both resin-impregnated and metal-impregnated)
Aluminum Oxide (Al2O3 Ceramic)
Zirconia (Zr2O3)
Stainless Steel (AISI 304, AISI 316, Alloy C, etc.)
Elastomers (Fluorcarbon, EPDM, NBR, H-NBR, Silicone, etc.)
PTFE
3.Quality Control
Converting customers' drawings into our manufacturing drawings
Manufacturing drawings verified prior to production
On-line inspection during production phases
Each product is inspected prior to dispatch
Applying Corrective Actions to customer complaints
4.Services
Timely response
On time delivery
Shipping arrangements
