| Prod Model: |
HB1010, HB1020, HB2020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: |
2mm |
| Pushing Power: |
300tons |
| MOQ: |
10PC |
| Usage: |
for Pushing Stone After Diamond Wire Cutting |
Product Description

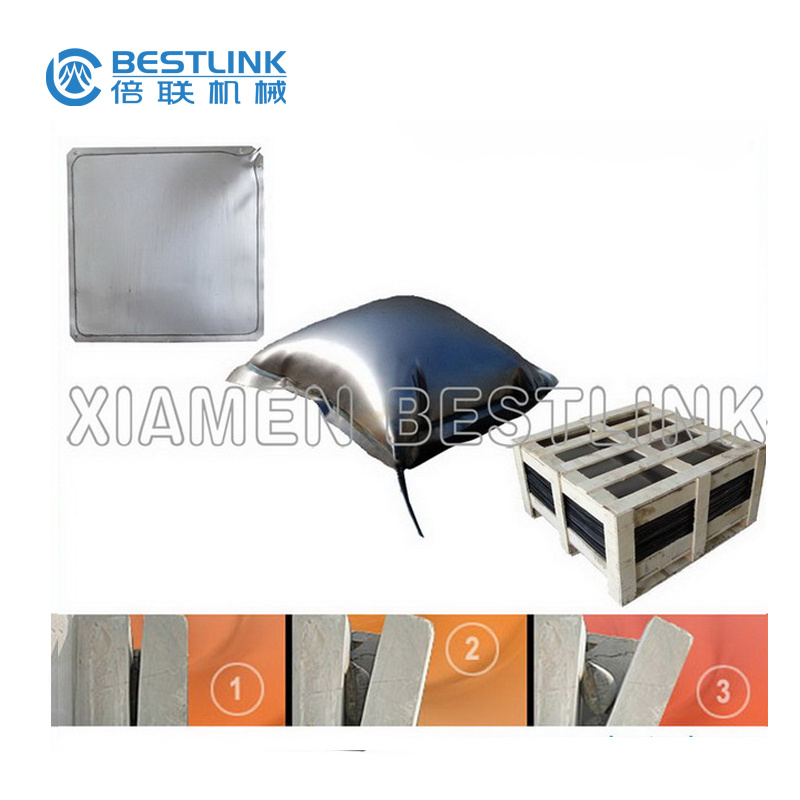

This has happened in the marble and stone quarrying industry, specifically for stripping blocks from the mountain. HYDRO-BAG has completely upset bench excavation in quarries.
The revolutionary aspect of the HYDRO-BAG equipment lies basically in the possibility of stripping blocks up to 1000 tons or more, without the need to prepare slots to house the
Jacks since the HYDRO-BAG has an original thickness of just 2 mm (0.08") and can be easily slipped into the wire saw cut.

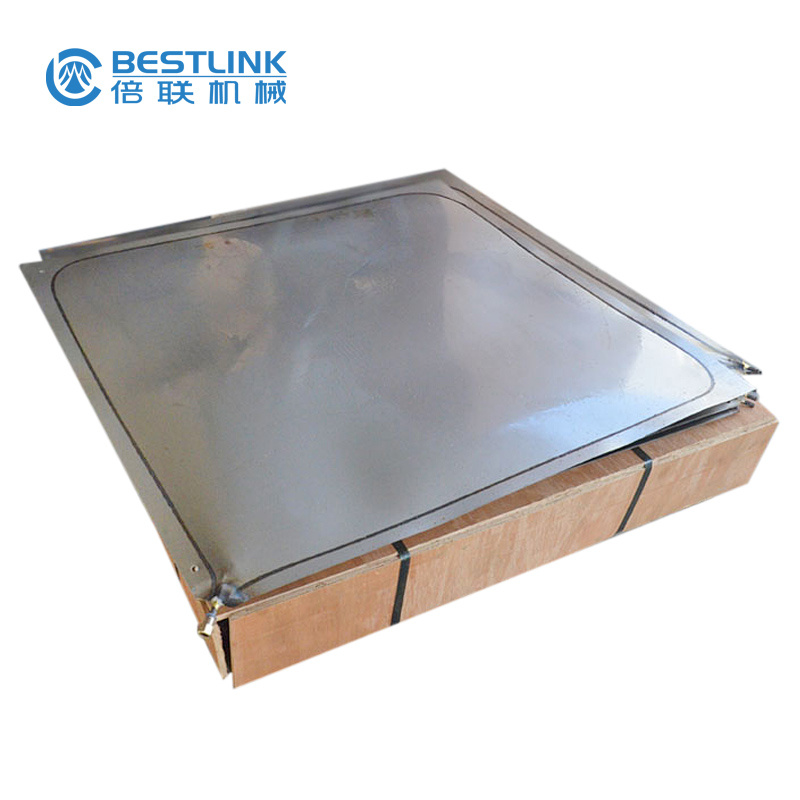

HYDRO-BAG is simply a dilatating hydraulic cushion that consists of two sheets of high tensile steel coupled with the most modern techniques (among which a LASER automatic unit,
See the picture left) and that expands, under the pressure of water pumped at a pressure of 30-40 bar, permitting a maximum dilatation of 25-30 cm (approx 1') and a thrust
Force up to 1000 tons.
Since HYDRO-BAG is, as mentioned before, 2 mm (0.08") thick only, it can be easily inserted into the wire saw cut, obtained by means of the well known diamond or helicoidally
Wire saws, of the marble block to be stripped.
It must be stressed that our equipment makes use only and exclusively of running water as a dilatation fluid, and not oil as for the hydraulic jacks, and therefore it is
Possible to say that HYDRO-BAG is environment-friendly too! Also from the safety point of view HYDRO-BAG offers the best guarantees: Even in the case the cushion blows due to
Excessive inflating pressure, there will never be any deflagration due to the use of water, and not air, as inflating media. Last but not least, HYDRO-BAG doesn't require any
Maintenance for the simple reason that after its use (often until it is broken) it can be finally thrown on the scrap heap without regret.
As mentioned before, the thrust force obtainable by a single cushion can reach up to 1000 tons, but by coupling two or more cushions it is possible to obtain higher
Performances, if the cushions are side by side or combined together in packs
To summarize, HYDRO-BAG is a simple, versatile and economical tool that has revolutionized quarry block stripping thanks to all the positive advantages as briefly described
Above.
All this means saving from the following points of view:
* Elimination of the time necessary for the preparation of the slots of the jacks;
* the blocks of stone are obtained with their sections intact, without the breaching deriving from the above mentioned

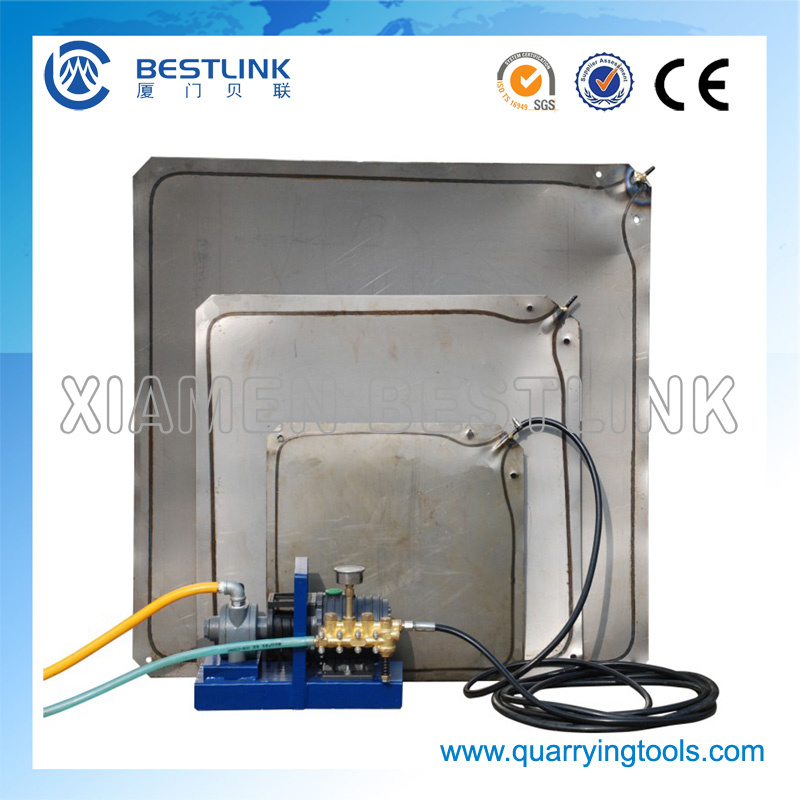

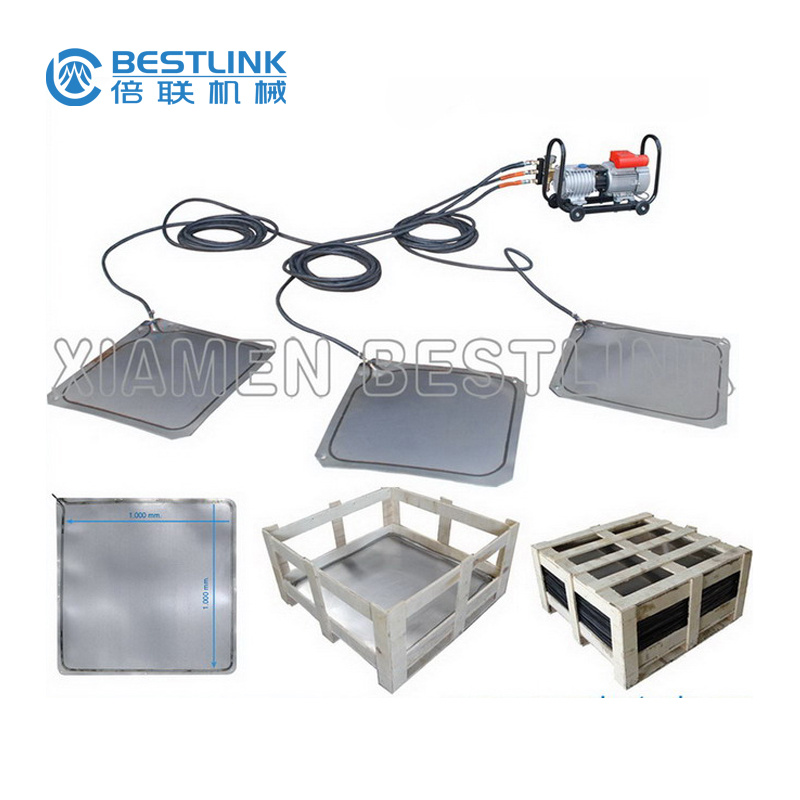

A complete HYDRO-BAG equipment consistsof:

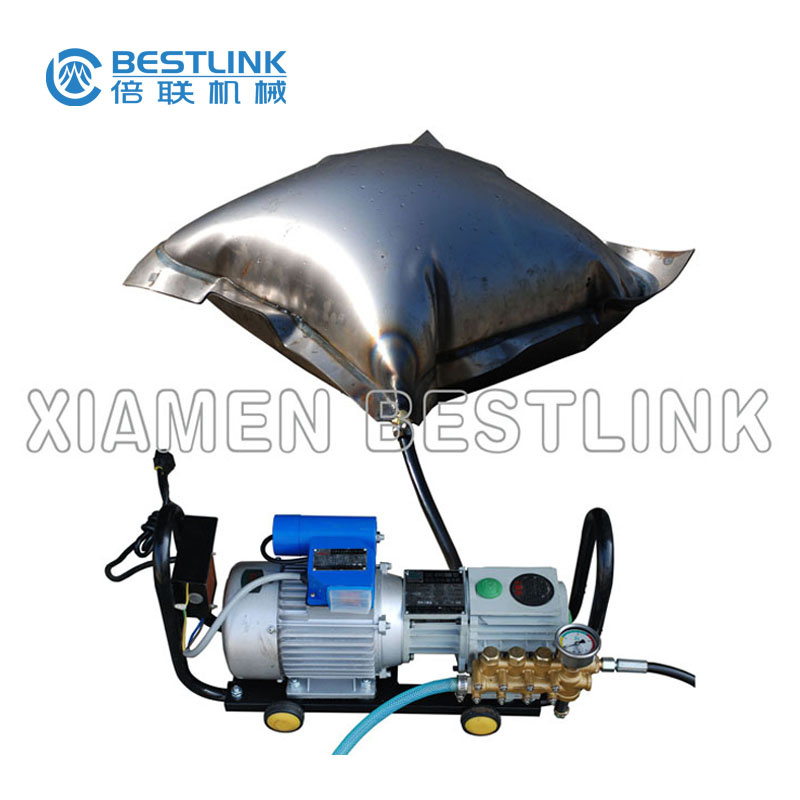

1. Electric pump HYDRO-BAG to create the pressure for the cushions
2. Safety valves and distribution valves;
3. Pipes, cocks and inlet filters;
4. Quick couplings
5. A series of HYDRO-BAG cushions.

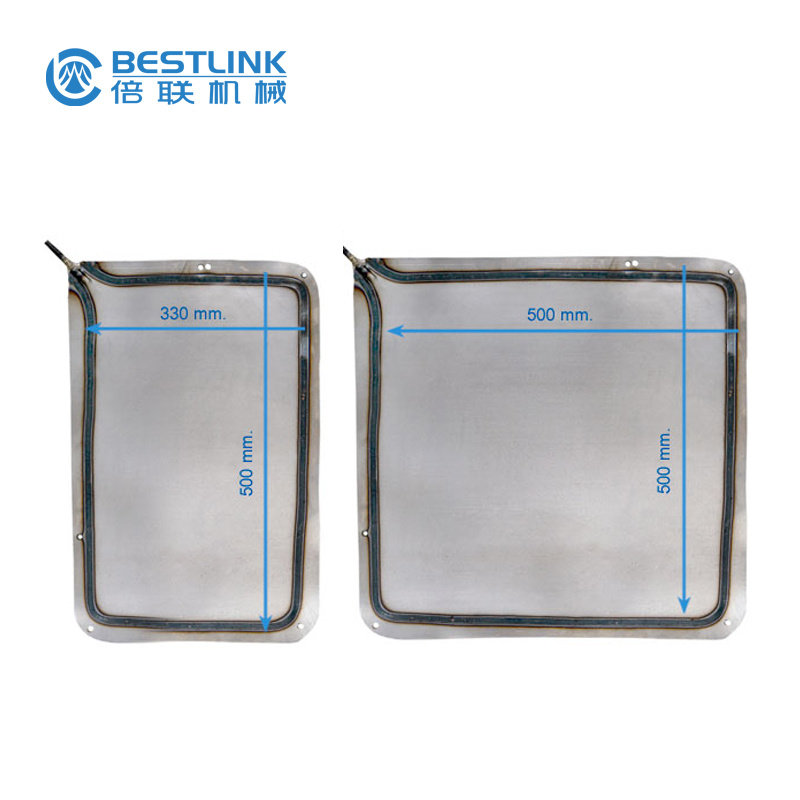

| Specification | Pushing capacity | Weight |
| 50 ×50 cm | 75 tons | 2.5 kg |
| 75 ×75 cm | 168 tons | 5.6 kg |
| 100 ×50 cm | 150 tons | 5.0 kg |
| 100 ×100 cm | 300 tons | 10.0 kg |
