| Prod Model: |
1.3.1.1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4" |
| Kind: |
Diamond Laser Saw Blade |
| Manufacturing Arts: |
Welding |
| Usage: |
Stone Cutting |
| Saw Blade External Diameter: |
105mm |
Product Description

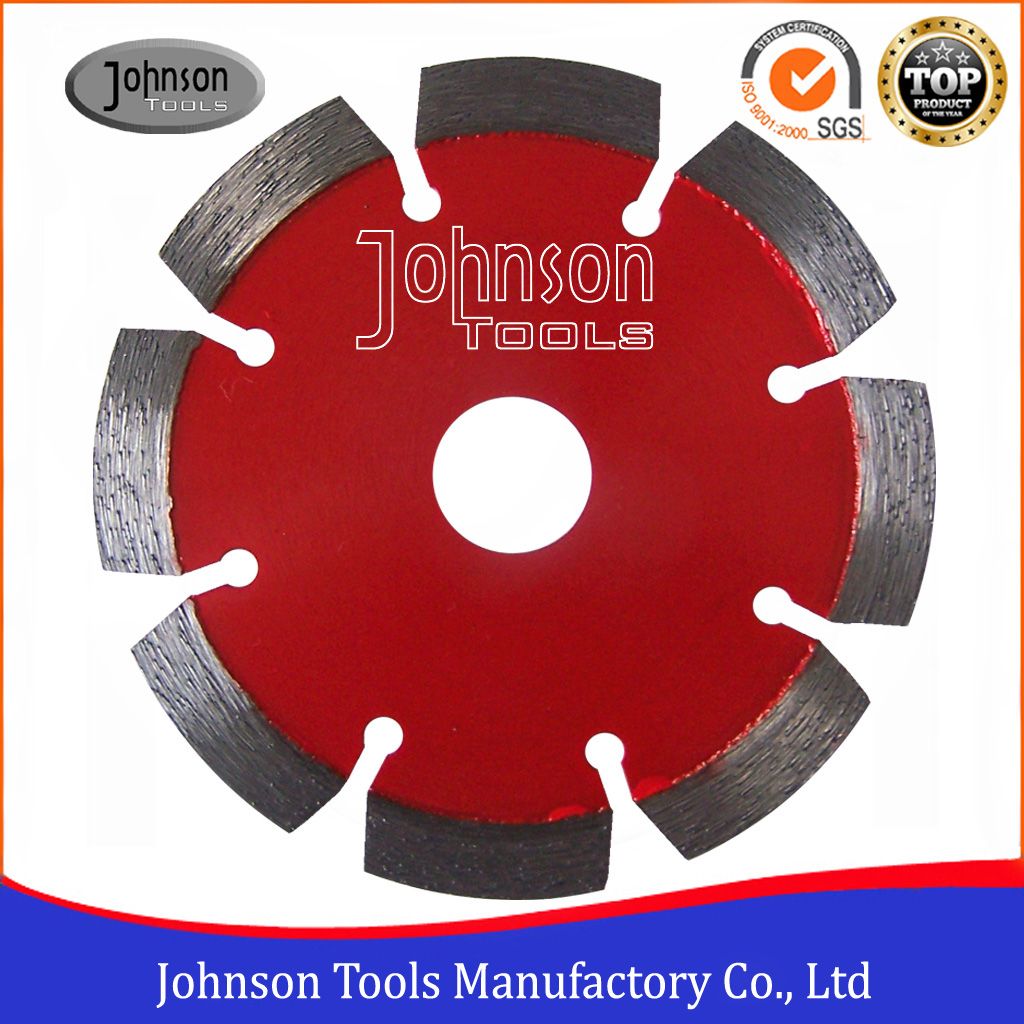

Stone Cutter: 105mm Diamond Laser Saw Blade
Why choose us?
Established in 2000year == Factroy==Quality Control ==Competitive price==OEM==Short delivery time
1.Description of Stone Cutter: 105mm Diamond Laser Saw Blade
a. Processing technology: Laser welded.
b. Specially used for stone cutting, such as marble, granite, gritstone, limestone, basalt, silestone, quartz, etc.
c. Professional, premium, standard quality grade available.
d. Various protection segment prevent abrasive materials from wearing and tearing steel core.
e. Maximum cutting performance and long life via tough wear-resistant segments.
f. Suitable for hand-held saws.
2.Features of Stone Cutter: 105mm Diamond Laser Saw Blade
a. Applied to cut various quartzite products.
b. No chipping.
c. Laser welding, superior aggressive and smoothly when cutting.
d. Suit to table cutting machine, bridge cutting machine, manual hand cutting machine etc.
e. Dry cutting, wet cutting would make lifetime longer.
f. Well exported to Asia, America, Africa, Australia, European market.
3.Specification information of Stone Cutter: 105mm Diamond Laser Saw Blade
Diameter:105mm
Segment thickness:2.2mm
Segment height: 7/8/10mm
Segment number:8nos
Segment type: Normal segment
Inner hole: 16mm,20mm,22.23mm, 25.4mm or as your request
Cutting Material: Stone
Manufacturing time: Around 7-30days
MOQ: 10pcs
| Diameter | Segment Thickness | Segment Height | Hole |
| 105mm | 2.2mm | 7/8/10mm | 16/20/22.23/25.4mm |
Other size we could do:
| Inch | Diameter
(mm) | Teeth length
(mm) | Teeth thickness
(mm) | Teeth height
(mm) | Teeth number
(nos) |
| 4" | 105 | 32 | 2.2 | 7/8/10 | 8 |
| 4.5" | 115 | 31 | 2.2 | 7/8/10 | 9 |
| 5" | 125 | 31 | 2.2 | 7/8/10 | 10 |
| 6" | 150 | 34 | 2.2 | 7/8/10 | 11 |
| 7" | 180 | 34 | 2.4 | 7/8/10 | 14 |
| 8" | 200 | 40 | 2.4 | 7/8/10 | 13 |
| 9" | 230 | 37 | 2.6 | 7/8/10 | 16 |
| 10" | 250 | 40 | 2.6 | 7/8/10 | 16 |
| 12" | 300 | 40 | 3.0 | 10/12/15 | 20 |
| 14" | 350 | 40 | 3.2 | 10/12/15 | 24 |
| 16" | 400 | 40 | 3.4 | 10/12/15 | 28 |
| 18" | 450 | 40 | 3.6 | 10/12/15 | 32 |
| 20" | 500 | 40 | 4.0 | 10/12/15 | 36 |
| 24" | 600 | 40 | 4.4 | 10/12/15 | 42 |
4.Packing and shipping of Stone Cutter: 105mm Diamond Laser Saw Blade
Each Laser welded saw blades are packed in white box, large quantity we could do plastic box or colour box, usually 10pieces per carton.
Shipping date: If we have steel body in our stock, normally shipment will be around 15days. If not, usually around 30 days
Delivery way: By sea, by air, by courier, by track, etc.
5.Payment term
T/T, Irrevocable L/C at sight, Paypal, Western Union, Credit Card, etc
6.Our Technology
We are processing advanced production equipment,modern checking system,strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond tools is our aim.
7.FAQ:
Q: How to place order to your company?
1. Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity? Nearest airport and seaport? Then we will give you best offer.
2. Proforma Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.
3. Production Process: Arrange production, based on the contract and PI description and mutual communication, we will follow closely the full production process; keep you informed of till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.
4. Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.
5. After-Sale Service: Track the goods, learn the products' performance.
6. Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.
