| Prod Model: |
HZ002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Western Europe |
| Technology: |
Sinter |
| Unique Feature: |
Sharpness |
| Export Area: |
American, European, Middle East, Southest Aisa etc |
| Specifications: |
as Required |
| Bond Ingredient: |
Diamod, Co, Cu, Fe etc |
| Shape: |
V Shape |
Product Description

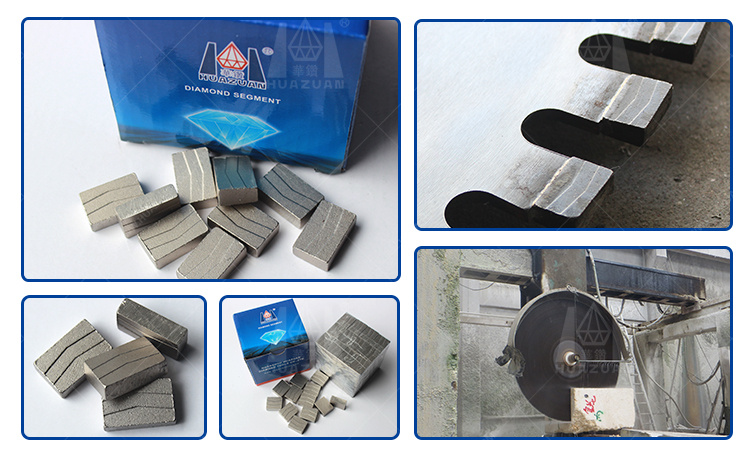

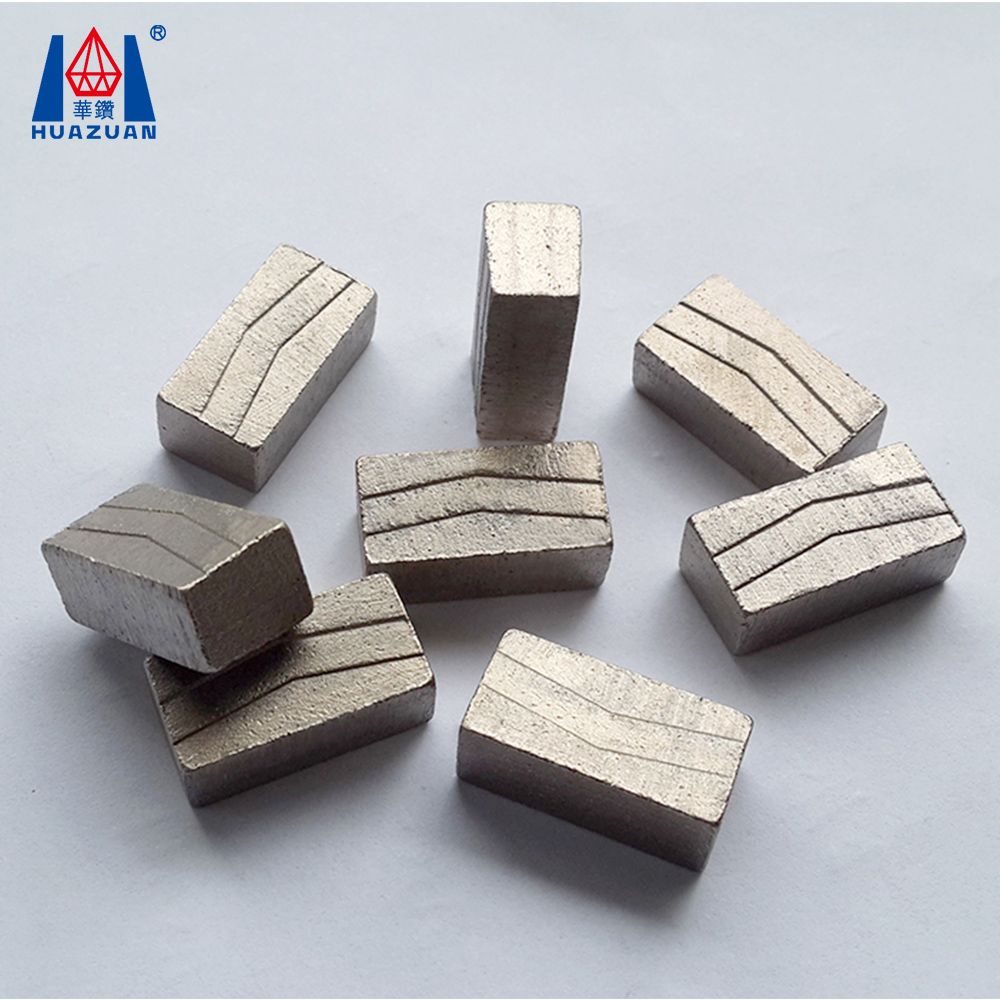

Stone cutting segment Diamond Tools for Marble Granite
1. Factory with producing experience over 20 years
2. Competitive price; Quality product
3. Excellent Team, Timely shipment
Diamond Tools (Diamond Segment)

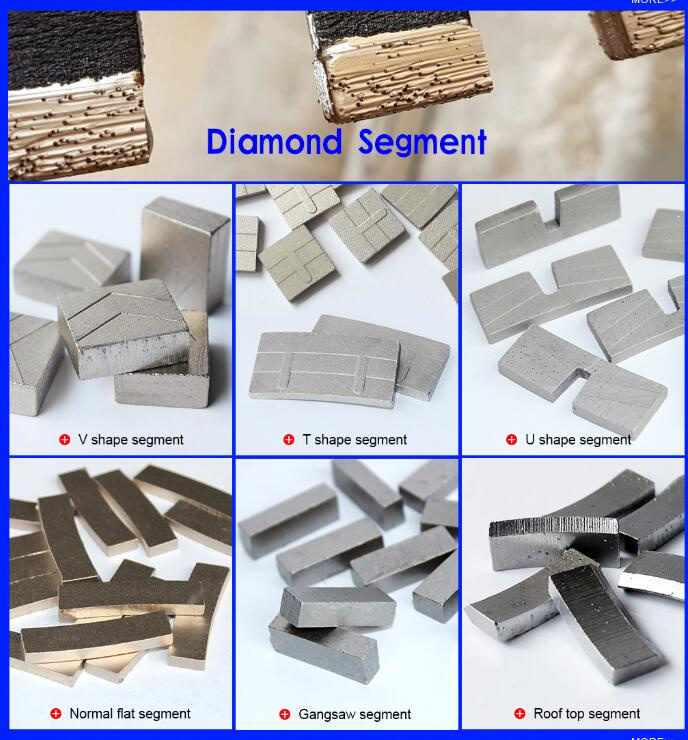

1. The various of diamond segments with different size and shape
2. For single blade and multiblade, cutting granite, marble, sandstone, concrete. Construction materials, etc
3. Fast cutting, long lifespan
4. Very competitive factory price
Available to match the diamond blades of various outer diameters from 250mm till 3500mm.
The size of diamond tool diamond segment as follows,
| Out Diameter | Inner Diameter | Dimension of segment | Number |
| Inch | MM | | Thickness | Height | |
| 12 | 300 | 50/60 | 2.8/3.0 | 8/10/12 | 21 |
| 14 | 350 | 50/60 | 3.0/3.2 | 8/10/12 | 24 |
| 16 | 400 | 50/60 | 3.4/3.6 | 8/10/12 | 28 |
| 18 | 450 | 50/60 | 3.8/4.2 | 8/10/12 | 32 |
| 20 | 500 | 50/60 | 4.0/4.2 | 8/10/12 | 36 |
| 24 | 600 | 50/60 | 4.6/4.8 | 8/10/12 | 42 |
| 28 | 700 | 50/60 | 5.0/5.2 | 8/10/12 | 50 |
| 30 | 750 | 50/60 | 5.2/5.6 | 8/10/12 | 54 |
| 32 | 800 | 50/60 | 5.5/6.0 | 8/10/12 | 57 |
| Diamter (mm) | Dimension of segment | Number |
| | L | H | W1 | W2 | |
| 1000 | 24 | 13/15 | 6.7 | 7.6 | 70 |
| 1200 | 24 | 13/15 | 6.7/6.5 | 7.8/7.5 | 80 |
| 1300 | 24 | 13/15 | 7.8 | 8.7 | 88 |
| 1600 | 24 | 13/15 | 8.4 | 9.0 | 108 |
| 1800 | 24 | 13/15 | 9.1 | 9.7 | 120 |
| 2000 | 24 | 13/15 | 10.5 | 11 | 128 |
The quality control of HUAZUAN diamond tool for diamond segment,
About us- HUAZUAN DIAMOND TOOLS:
Quanzhou Huazuan Diamond Tool Co., Ltd. Is a professional diamond tools manufacturer combining scientific research, production and sales. After more than 20 years' hard work, we accumulate abundant strength and veteran technicians. Our company specializes in manufacturing diamond cutting tools, diamond drilling tools and diamond grinding tools for construction industry. The products are increasingly used in processing hard materials such as marble, granite, concrete etc.
The Fair we attend for diamond tools diamond segment diamond saw blade as follows,
Contact Us
You can get the price or proposal after you give us the details or your requirement.
Any problem and advice, please feel free to contact us anytime.
