| Price: | US $ 12000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | JBP100B |
|---|---|
| Max High Horizontal Hole: | 2.8m |
| Max Low Horizontal Hole: | 2.2m |
| Walk Speed: | 2.5km/H |
| Rock Rigidity: | F=6-20 |
| Gradeability: | 30° |
| Rotation Torque: | 2300n.M |
| Rotary Speed: | 0-90rpm/Min |
| Feed Way: | Oil Cylinder-Chain |

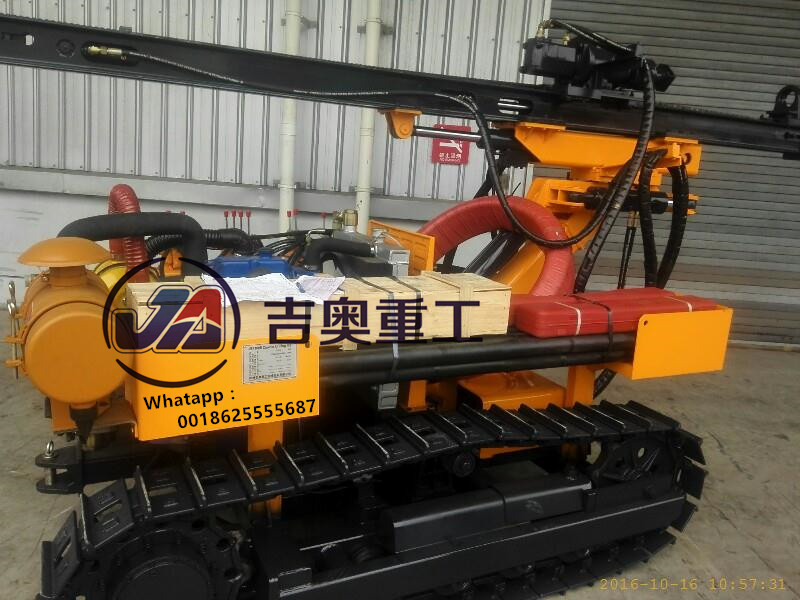

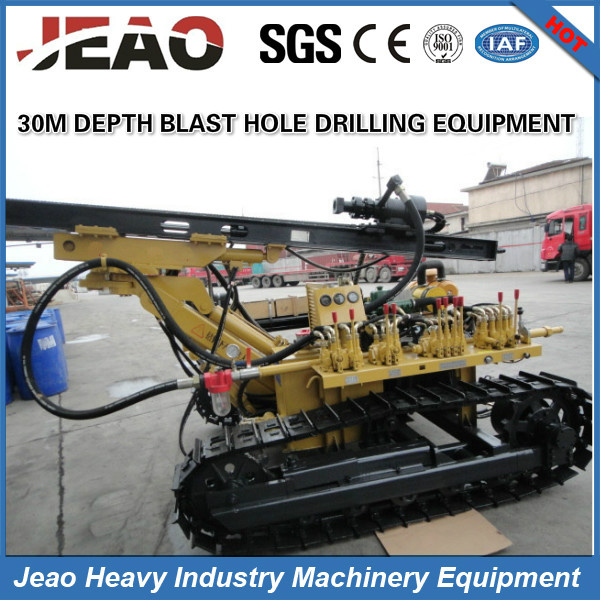

The Usage of Crawler Mining Portable Digging Hole Machines JBP100B
1. This series machine are used in a wide variety of Quarry ,Highway , Water and electricity , Surface mine and deep hole joint pipe drill work on the building project etc.
2. This series drilling rigs with air compressor,hammer together work , To blasting horizontal hole ,vertical holes ,inclines holes .
The Features of Crawler Mining Portable Digging Hole Machines JBP100B
---- Safe and stable traveling system of Crawler Drilling Rig
---- Powerful and reliable engine of Crawler Drilling Rig
---- Mew type boom of DTH Crawler Drilling Rig
---- Powerful feeding and rotating system of crawler drilling rig
---- Equiped with big tank diesel engine,ensuring continuous operation.
---- Vertical,linear,water cool,4 stroke ,direct injection.
---- Three stage filter,ensure clean,pure air.
---- Instrument box monitoring diesel,hydraulic system,ensure performance reliable.
Specification of Crawler Mining Portable Digging Hole Machines JBP100B
Rock rigidity | F=6-20 |
Diameter of hole | Φ80-105mm |
Optium drilling depth | 25-30m |
Max high horizontal hole | 2.8m |
Max low horizontal hole | 2.2m |
Walk speed | 2.5km/h |
Gradeability | 30° |
Rotary speed | 0-90rpm/min |
Rotation torque | 2300N.m |
Lift power | 15 KN |
Feed way | oil cylinder-chain |
Feed distance | 2000mm |
Carriage Compensation | 900mm |
Working pressure | 5-14bar |
Air consumption | 7-12m3/min |
Ground clearance | 284mm |
Sliding carriage pitch angle | 0-97° |
Sliding carriage swing angle | Left17°,righ32,total 49° |
Power | 33kw |
Dimension | 4100x2030x2020mm |
Weight | 3400kg |
Air Compressor for Crawler Mining Portable Digging Hole Machines JBP100B
| Model No | HG400M-13 |
| Compressor | |
| Style | Double screw, single stage compression, Portable |
| Air Delivery(m³/min) | 10 |
| Rated Working pressure (Bar) | 13 |
| Range of Working pressure(Bar) | 5-10 |
| Lube Capacity(L) | 60 |
| Interface Dimension,Quantity | R1.1/2" x 1,R1"x1 |
| Tire Specifications | 6.5-16x2 |
| Tire Pressure(Kpa) | 500-600 |
| Elevation Work Max.(m) | 3000 |
| L×W×H(mm) | 3220×1850×1850 |
| Weight | 2450 |
| Noise dB(A) | 80-85 |
| Diesel Engine | |
| Model | 6BT5.9 or YC6108ZG |
| Style | Cooled stroke 4 direct injection super charge |
| Rated Power(Kw/Hp) | 110/150 |
| Rated Speed(rpm) | 2500 or 2400 |
| Coolant Volume(L) | 25-28 |
| Engine Oil Capacity(L) | 12-18 |
| Fuel Tank Capacity(L) | 120-160 |
| 80% Load oil wear (L/h) | 17-18 |

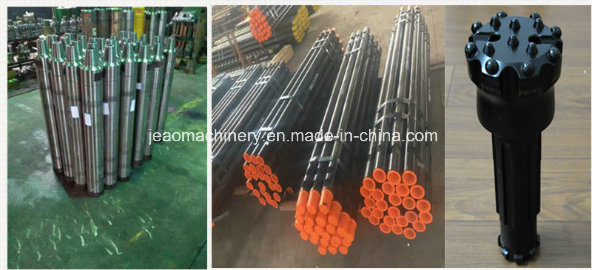

Parts for Crawler Mining Portable Digging Hole Machines JBP100B
JEAO MACHINERY currently manufactures a wide range of machineries, such as all kinds of piston air compressors, screw air compressors, pneumatic rock drills, pneumatic and hydraulic down hole drills, breakers, drilling wagons etc., more than 300 varies of items in 8 product lines. The annual production capacity is over 200,000 units. Having implemented a name brand strategy that emphasizes growing our trademark globally, we have built up extensive sales, service and promotion networks. We have over 800 wholesalers around China as well as overseas market, which have exported products to Europe, South America, Middle East, Southeast Asia, South Africa etc.
JEAO COMPANY ---- GLAD TO SERVES FOR YOU
