| Prod Model: |
XLCT Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Super Low Profile Hexagon Cassette Torque Wrench |
| Max. Torque Range: |
2328-41882nm |
| Min. Torque(N.M): |
232-2328nn.M |
| Nut Size (mm): |
24-55 to 110-165 |
| OEM: |
Yes |
| Color: |
Can Customer |
| Certificate: |
CE and ISO |
| Warranty: |
One Year |
| Certification: |
CE, ISO9001:2008 |
| Bolt Size(mm): |
16-36mm & 76-115mm |
| Type: |
Hex Wrench |
| Material: |
Aluminum Alloy |
| Standard: |
European Type |
| Surface Treatment: |
Titanizing |
| Feature: |
Ordinary |
| Brand: |
Kiet |
| Handle Color: |
Can Customize |
Product Description

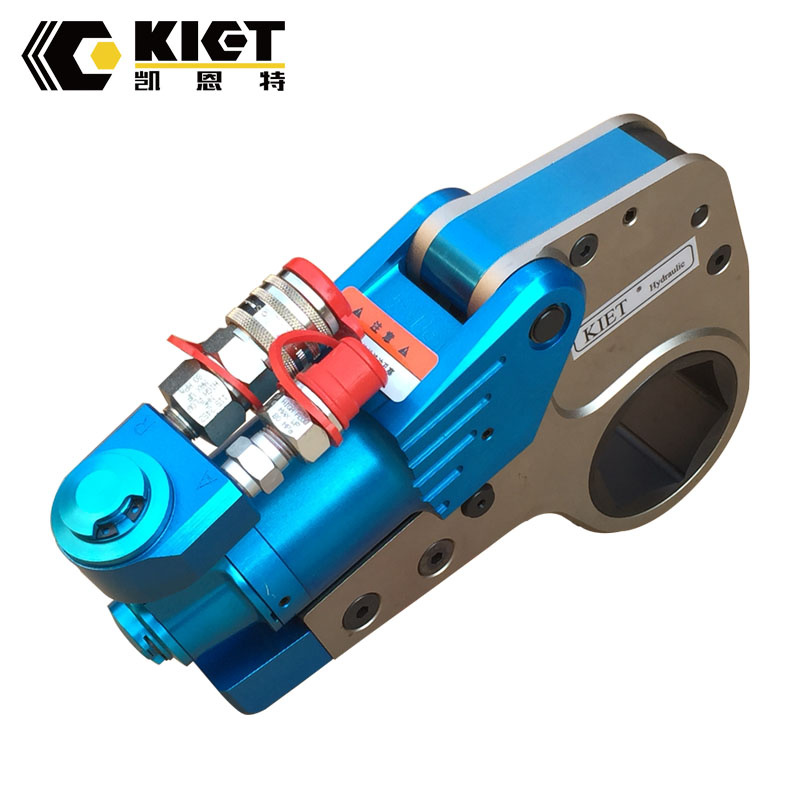

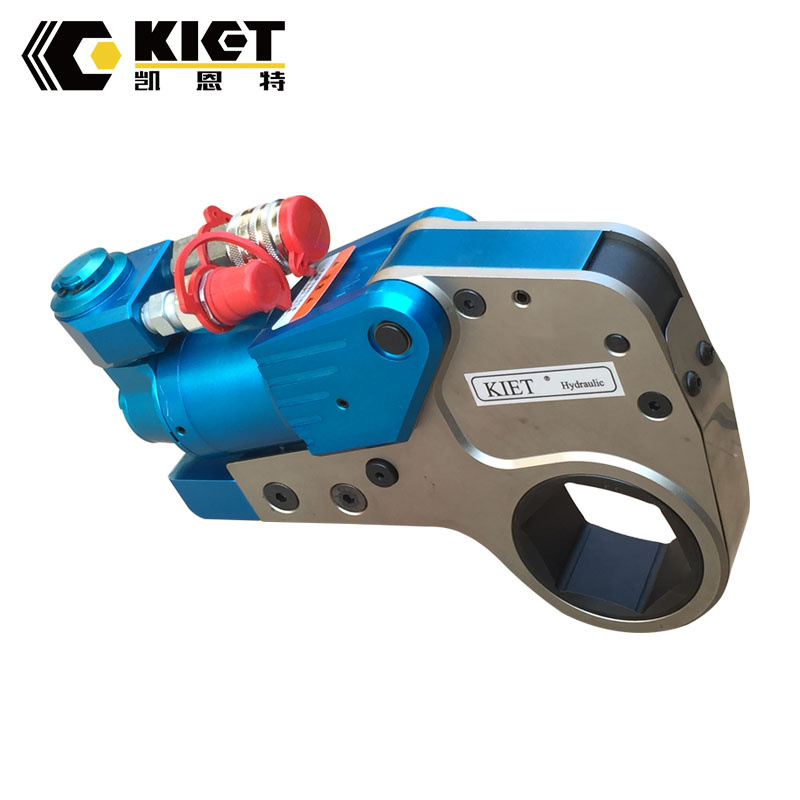

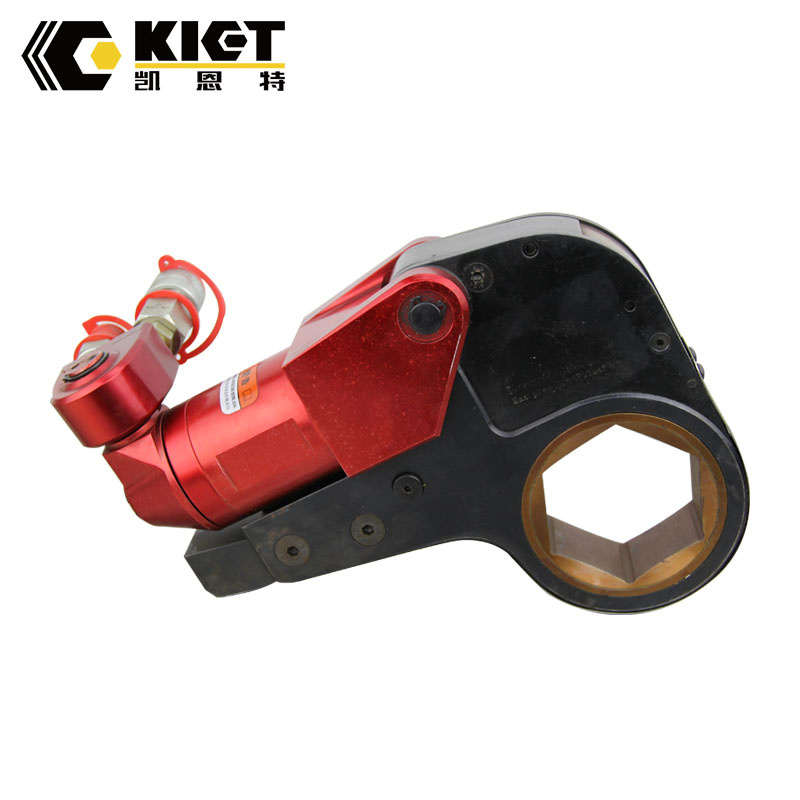

super Low Profile Hexagon Cassette Torque wrench
Specification:
1. Low profile hydraulic torque wrench
2.CE& ISO9001: 2008
3. Space materials, compact, light weight
4. High speed, double-acting
Low profile hydraulic torque wrench
Feiyao offers a variety of controlled tightening tools to best meet the requirements of your application. From mechanical torque multipliers to hydraulically driven square drive wrenches, and low profile torque wrenches. We offer the hydraulic torque tools you need for accurate and simultaneous tightening of multiple bolts
Model | KT-2XLCT | KT-4XLCT | KT-8XLCT | KT-14XLCT | KT-30XLCT |
| Torque Nm | 232~2328 | 585~5858 | 1094~ 10941 | 1852~ 18521 | 4188~ 41882 |
| Bolt Size M(mm) | 16-36 | 24-42 | 30-64 | 33-76 | 76-115 |
| Nut Size S(mm) | 24~55 | 36~65 | 46~95 | 50~110 | 110~165 |
| Rotary head Model | 2XLCT | 4XLCT | 8XLCT | 14XLCT | 30XLCT |
| Working head model | 2XLCTA-50 | 4XLCTA-65 | 8XLCTA-90 | 14XLCTA-115 | 30XLCTA- |
| Weight(kg) | 2.4 | 5.0 | 9.3 | 16.9 | 30.9 |
| L(mm) | 160 | 213 | 267 | 321 | 427 |
| H1(mm) | 130 | 183 | 273 | 246 | 303 |
| H2(mm) | 102 | 137 | 170 | 203 | 272 |
| W1(mm) | 32 | 41 | 53 | 64 | 85 |
| W2(mm) | 50 | 66 | 83 | 99 | 131
|
Low profile ratchet hydraulic wrench used in all industries in confined areas.
Packaging & Shipping:
We provide Aluminum Alloy Lightweight Box, which can perfectly protect, the shipping can be by express parcel, by air or by sea shipping.
Our Service:
KIET provide one year guarantee for all the hydraulic torque wrench. We promise if there is any dysfunction of the hydraulic torque wrench during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.
Company Information:
Jiangsu Canete Machinery Manufacturing Co., Ltd. Is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.
We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
