| Prod Model: |
Comflex |
| Product Name: |
SUS304/316 Convoluted Flexible Metal Hose |
| Usage: |
Pipeline Transport, Oil&Gas Well Drilling |
| Technique: |
Hot Rolled |
| No. Of Braids: |
Single or Double |
| Wall Thickness: |
Customized |
| Standard: |
Ce |
| Morphology: |
Gas |
| Cross-Section Shape: |
Round |
| Connection Type: |
Welding |
| Diameter: |
Dn8-Dn300 |
Product Description

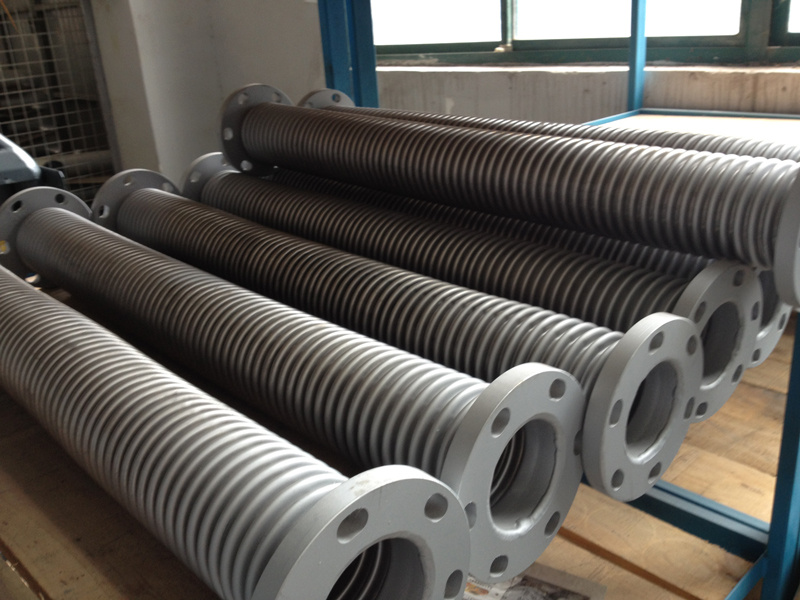

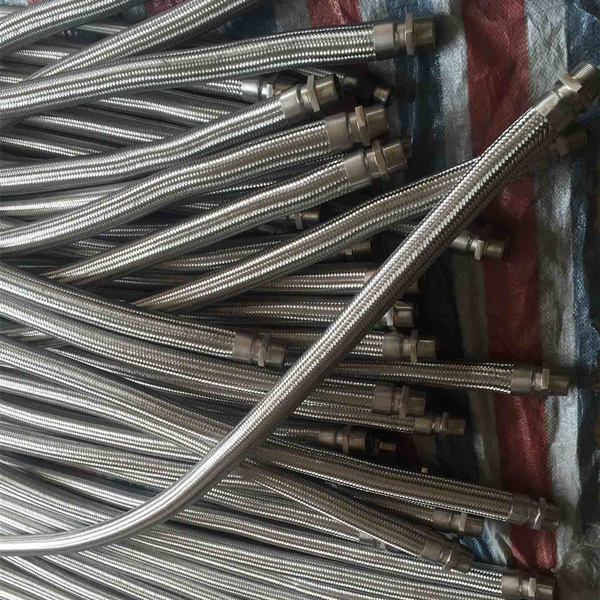

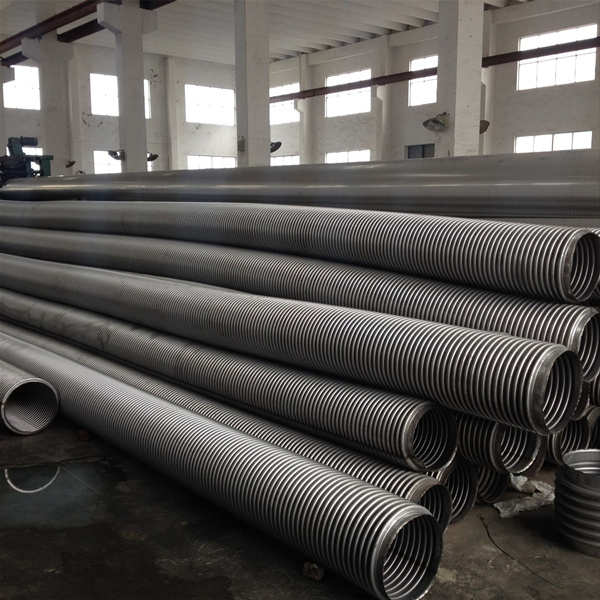

Sus304/316 Convoluted Flexible Metal Hose
We can supply stainless steel helical hoses from DN8 till DN50 with most competitive prices and high quality.
Material :sus304, 321 and 316L.
Wall thickness according to customer requirment.
Usage Fields: Structure Pipe, Fluid Pipe, Oil Pipe, Boiler Pipe, Gas Pipe, Hydraulic Pipe, Drill Pipe
| High Flexible hoses |
| DN | Corrugated hoses | Single Braid | Double Braid |
| ID | OD | Pitch Distance | Thickness | Working Press. | Test Press. | Working Press. | Test Press. |
|
I.D.
(mm) | Devi.
(mm) | O.D.
(mm) | Devi.
(mm) | I(mm) | Devi.
(mm) | S(mm) | Bar | Bar | Bar | Bar |
| 8 | 7.64 | ±0.10 | 12..3 | ±0.5 | 2.9±0.2 | ±0.2 | 0.2 | 80 | 120 | 140 | 210 |
| 10 | 9.64 | ±0.10 | 14.6 | ±0.5 | 2.8 | ±0.2 | 0.2 | 90 | 135 | 140 | 200 |
| 12 | 11.6 | ±0.10 | 18.6 | ±0.5 | 2.0 | ±0.5 | 0.2 | 80 | 125 | 120 | 180 |
| 15 | 14.4 | ±0.10 | 22.15 | ±0.5 | 2.3 | ±0.5 | 0.28 | 60 | 90 | 100 | 125 |
| 20 | 19.4 | ±0.10 | 27.7 | ±1 | 2.9 | ±1 | 0.28 | 60 | 90 | 80 | 100 |
| 25 | 24.4 | ±0.2 | 33.25 | ±1 | 3.3 | ±1 | 0.28 | 60 | 90 | 80 | 100 |
| 32 | 31.4 | ±0.2 | 40.8 | ±1 | 3.6 | ±1 | 0.28 | 50 | 80 | 70 | 90 |
| 40 | 39.4 | ±0.2 | 51 | ±1 | 3.9 | ±1 | 0.28 | 50 | 80 | 70 | 90 |
| 50 | 49.4 | ±0.2 | 64.3 | ±1 | 4.9 | ±1 | 0.3 | 40 | 70 | 60 | 80 |
| 65 | 64.4 | ±0.2 | 82.6 | ±1.5 | 5.9 | ±1 | 0.4 | 40 | 70 | 60 | 80 |
| 80 | 79.2 | ±0.2 | 99.8 | ±1.5 | 6.8 | ±1.5 | 0.4 | 30 | 60 | 50 | 70 |
| 100 | 99.2 | ±0.5 | 122 | ±1.5 | 8.5 | ±1.5 | 0.4 | 16 | 30 | 30 | 50 |
| 125 | 124 | ±0.5 | 152.5 | ±1.5 | 9.4 | ±1.5 | 0.5 | 16 | 30 | 30 | 50 |
| 150 | 149 | ±0.5 | 183 | ±1.5 | 11.4 | ±2 | 0.5 | 16 | 30 | 30 | 50 |
| 200 | 199 | ±0.5 | 244 | ±2 | 15.6 | ±2 | 0.6 | 16 | 30 | 30 | 50 |
| 250 | 248 | ±0.5 | 305 | ±2 | 18.2 | ±2 | 0.8 | 10 | 20 | 20 | 40 |
| 300 | 298 | ±0.5 | 360.5 | ±2 | 21.8 | ±2 | 0.8 | 8 | 16 | 16 | 30 |
Company information
We are professional manufacturer of all types of metal flexible metal hose and machinery, such as corrugated metal hose, square lock and interlock hose/ conduit with more than 25 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, etc..
The sizes are as follows:
Square lock hose and machinery:ID6-ID103
Interlock hose and machinery:ID3-ID350mm on different machine
Annular and corrugated metal hose: ID8 till ID600 on different machine
F&Q
Q: Why so many suppliers choose us?
A:Because we are one of most professional manufacturer of the metal hose with more than 25 years of experience
Q:What sizes can you make?
A: all sizes from DN8 up to DN300
Q: What kind of fittings can you supply with the metal hose?
A: nuts, adapter, nipple, with BSP or NPT thread, we can customerized our hose according to your requirement
We need to know following information to give you our best quotation for the hoses:
A: Technical drawings
B: Material of the hose :sus304,321 or 316L
C: Material of the fittings, are they flange or pipe ends? Flange code?
D:Length and Diameter
E:Working pressure and temperature of the hose
F: Application of the hose
We are most professional metal hose, metal bellow and related machineries manufacturer and exporter with more than 30 years of history. Our products exported and are exporting to many countries, such as Denmark, UK, USA, Russia, Ukraine, Iran, Australia, Zambuwae etc...Bellow and Hose machineries are exported to world wide, such as Turkey, India, Russia, Ukraine, Iran, Australia, Canada, USA, UK, etc...We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines, such as elastomer hose forming machine, hydraulic forming machine, wire braiding machine, rewinding machine, bellow forming machine, etc...We are lead manufacturer of flex-related products in China.
We supply metal hose and braid with the widest selection of products ranging from braided hose for value oriented customers to super flexible hoses to ultra-high pressure and high temperature hoses that satisfy industry's most demanding applications. Working closely with customers and suppliers helps us build quality products that meet or exceed compatibility and functional requirements, safety and environmental standards and deliver dependable, repeatable performance and value.
Our metal hose and braid is offered in a variety of different alloys that meet or exceed even the most stringent service conditions that industry demands.
All kinds of expansion joints for different applications are available, such as metal expansion joints, fabric expansion joint, rubber expansion joints. For details, please refer to our catalogue.
Our hoses are formed with TIG welded tubes with high quality.
Size: DN6-630mm
Forming Method: Hydraulic, mechanical and elastomer
Hose shape: Omega and U type
Material: Stainless steel 304, 321 and 316L, incoloy
Metal hose forming machine:
Elatomer metal hose forming machine: DN10-150mm
Hydraulic metal hose forming machine: DN16-630mm
Mechanical metal hose forming machine: DN6-50mm
Metal Bellow Forming machine
Vertical Hydraulic Presser: DN14-5000mm
Horizontal hydraulic presser: DN14-300mm
Mechanical mandrel punching machine: DN800-5000mm
Bellow Rolling & forming machine: DN800-5000mm
Testing Device:
Testing bench: DN6-150mm
Hose fitting welding machine: DN6-50mm
