| Prod Model: |
HL21000C, HL21250C, HL21400C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swing Over Bed: |
1000, 1500, 1400mm |
| Max. Length Of Workpiece (Two Centers): |
1.5/2/3/4/5/6/8/10/12m |
| Max. Workpiece Weight Between Centers: |
5000kgs |
| Main Motor: |
22kw |
| Type: |

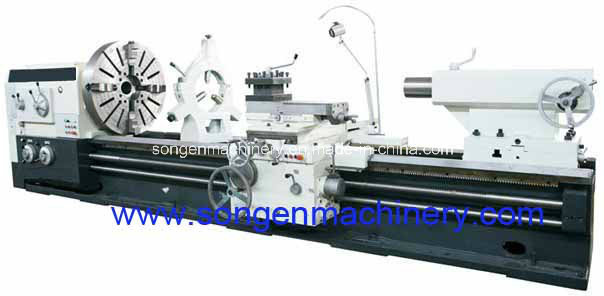

Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
| Precision: |
Precision |
Product Description
Gear-headed with high spindle speed for precision turning;
Wide very rigid machine bed is of double-wall ribbed structure and features superb rigidity;
Bed ways ultrasonic frequency quenched to hardness HRC 52 and precision ground to ensure a long accurate service life;
Removable gap section is provided for swing of workpieces with large diameters;
Gears in headstock and feed gearbox hardened and precision ground for low noise in running;
Three-point-mounting spindle mounted on high-precision tapered roller bearings and high-precision angular contact ball bearings for high-speed accurate revolutions;
Automatic feeds and threading operations are fully interlocked;
Maximum accuracy and quiet operation even at high speed;
High machining capacity with high power main motor;
Large spindle bore diameter for machining of long bars;
Feed gearbox well sealed to eliminate leakage;
The machine can turn enough kinds of metric threads, inch threads, whitworth threads, diametral pitch threads and module threads;
Tailstock locked by thread and cam lock;
Tailstock is adjustable in the cross direction for turning tapers on workpieces;
Electric system is reliable and safe. The main power supply is shut off automatically when the electricity cabinet is opened or the change gearbox's hood is opened;
Longitudinal mechanical stop provides quick and effective start or stop during the operation of the machine, thus decreases the standby time and improves the productivity;
Digital readout (2-Axis) is mounted on this machine;
Taper turning attachment is supplied with this machine;
One-piece casting base provides enhanced rigidity for the whole machine;
Machine color is coated at buyer option.
Standard Accessories:
4 jaw chuck Φ 1000mm
Morse reduction metric 80/M. T. NO. 6
Morse reduction metric 140/M. T. NO. 6
Wrenches
Centers M. T. NO. 6
Operation manual
Optional Accessories:
4 jaw chuck Φ 1250mm
Follow rest
Steady rest
| Specification |
| Model | HL21000C | HL21250C | HL21400C |
| Max.swing diameter | Over bed | Φ1000 mm | Φ1250 mm | Φ1400 mm |
| Over carriage | Φ600 mm | Φ865 mm | Φ1015 mm |
| Over gap | Φ1380 mm | Φ1750 mm | Φ1900 mm |
| Width of bed | 755 mm |
| Effective length of gap | 590 mm |
| Max.length of workpiece (two centers) | 1.5/2/3/4/5/6/8/10/12 m |
| Maxi. turning lengh | 1.35/1.85/2.85/3.85/4.85/5.85/7.85/9.85/11.85 m |
| Max.weight of workpiece between centers | 5000 kg |
| Spindle | Spindle nose | A2-15 |
| Spindle bore | Φ130mm |
| Taper hole | Metric Φ140 1:20 |
| Number of speeds | 24 (normal) 12 (reverse) |
| Spindle speed scope | 2.5~250rpm(normal) 3.15~250rpm(reverse) |
| Pitch of longitudinla ball screw/diameter | 12mm / Φ70mm |
| Number of cross feeds | 97 |
| Feed range of tool post for per rev. of spindle | Longitudinal | 0.1~12 mm/r |
| Cross | 0.05~6 mm/r |
| Middle tool post | 0.025~3 mm/r |
| Rapid traverse | Longitudinal | 3740 mm/min |
| Cross | 1870 mm/min |
| Middle tool post | 935 mm/min |
| Thread cutting&range | Metric pitch threads | 1~120 mm/45 |
| Whit-worth threads | 30~1/4 TPI/42 |
| Module threads | 0.5~60 mm/46 |
| D.P.threads | 1/2~60 DP/48 |
| Vertical distance from spindle center to installing basis | 41mm | 51mm | 51mm |
| Size of tool shank | 40 x 40 mm | 50 x 50 mm | 50 x 50 mm |
| Swing angle of tool post | ±90º |
| Max.travel of top slide | 200 mm |
| Max.travel of middle tool post | 400 mm |
| Tailstock sleeve | Taper of bore | M.T.No.6 |
| Max.traverse | 300 mm |
| External diameter | Φ160 mm |
| Power of main motor | 22 kw |
| Rapid feed motor power | 1.5 kw |
| Coolant pump power | 0.25 kw |
| 3m Overall dimensions (L x W x H) (mm) | 6000 x `1860 x 1700 | 6100 x 1860 x 1900 |
| Net weight (3m) | 11200 kg | 12500 kg |
| Note: For each additional machine length of 1m, there will be additional net weight of 1000kg. |
