| Prod Model: |
HLD2410x1000/1500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swing Over Bed: |
410mm |
| Distance Between Centers: |
1000mm, 1500mm |
| Spindle Speed: |
45-1800rpm, 16 Steps |
| Spindle Nose: |
D1-6 |
| Spindle Bore Diameter: |
52mm |
| Spindle Nose Taper: |
Mt #6 |
| Main Motor: |
2.8 or 3.3kw |
| Type: |
Horizontal Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Setting Mode: |
Floor-type |
Product Description

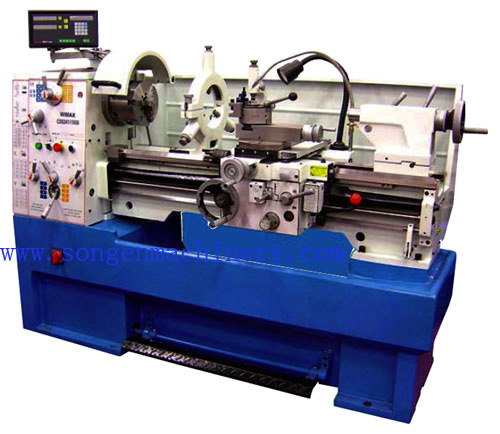

[1] Gear-headed gap-bed engine lathe with high spindle speed for precision turning;
[2] Very rigid machine bedways with heavy ribbing;
[3] Guideways ultrasonic frequency quenched and precision ground to ensure a long accurate service life on this gear headed high speed precision engine lathe;
[4] Removable gap for large swing on this lathe;
[5] Gears in headstock of this high-precision engine lathe and feed gearbox hardened and precision ground for low noise in running;
[6] Spindle mounted on high-precision tapered roller bearings for high-speed and accurate revolutions;
[7] Maximum accuracy and quiet operation even at high speeds on this engine lathe;
[8] Clutch in apron for safety and for changing feed direction without having to reverse the spindle revolution;
[9] Large spindle capacity for machining of long bars on this precision engine lathe;
[10] Feed gearbox well sealed to eliminate leakage;
[11] Kinds of metric threads, inch threads, diametral pitch threads and module threads;
[12] Tailstock locked by thread and camlock;
[13] Electric system is reliable and safe;
[14] CE-conformity electromagnetic brake at users option;
[15] Digital readout, taper turning attachment can be mounted as options to extend the working scope of this lathe;
[16] Machine color at buyer option.
Standard Accessories:
[1] 3-Jaw chuck and adapter 200mm
[2] 4-Jaw chuck and adapter 320mm
[3] Face plate 300mm
[4] Steady and follow rest
[5] Thread chasing dial indicator
[6] Change gears set
[7] Reduction sleeve
[8] MT #4, MT #6 dead centers
[9] Full-length splash guard
[10] Removable chip tray
[11] Oil gun
[12] Wrenches
[13] Operation manual
Optional Accessories:
[1] Taper turning attachment
[2] Driving plate 200mm
[3] Quick change tool post
[4] Live centers
[5] Work light
[6] Lead screw guard
[7] Chuck guard
[8] Digital read-out
[9] Drill chuck and drill arbor
| Specification | HLD2410 |
| Capacity |
| Swing over bed | 410 mm |
| Swing over cross slide | 255 mm |
| Swing in gap | 580 mm |
| Length of gap | 250 mm |
| Distance between centers | 1000 mm or 1500 mm |
| Width of bed | 250 mm |
| Headstock |
| Spindle nose | D1-6 |
| Spindle bore | 52 mm |
| Taper of spindle bore | No.6 Morse |
| Range of spindle speed | 16 changes 45-1800 r/min |
| Feeds and Threads |
| Max.travel of compound rest | 102 mm |
| Max.travel of cross slide | 210 mm |
| Leadscrew pitch | 4T.P.I. |
| Max.Section of tool | 20 × 20 mm |
| Longitudinal feeds range | 0.05-1.7mm/rev |
| Cross feeds range | 0.025-0.85 mm |
| Metric threads range | 39 kinds 0.2-14 mm |
| Inch threads range | 45 kinds 2-72T.P.I. |
| Diametrical pitches range | 21 kinds 8-44 D.P. |
| Module pitches range | 18 kinds 0.3-3.5 M.P. |
| Tailstock |
| Dia.of tailstock sleeve | 50 mm |
| Travel of tailstock sleeve | 120 mm |
| Morse taper of tailstock sleeve | No.4 Morse |
| Cross adjustment | ±13 mm |
| Motor |
| Power of main motor | 2.8/3.3kw( 3.8/4.5HP) 3PH or 5HP |
| Power of coolant pump | 0.1kw (1/8HP), 3PH |
| Dimension and Weight |
| Overall Dimension (L × W × H) | 1940 × 850 × 1320 mm |
| Packing size (L × W × H) | 2060 × 900 × 1640 mm |
| Net weight / Goss weight | for D.B.C. 1000mm lathe: 1550 / 1800 kg
for D.B.C. 1500mm lathe: 1600 / 1850 kg |
