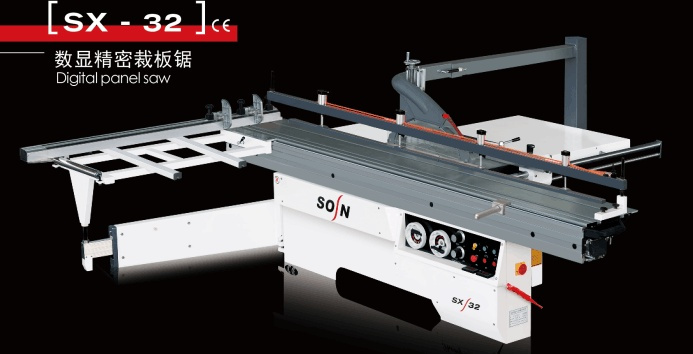

| Prod Model: |
SX- 32 |
| Dimension Of Sliding Table: |
3200*400mm |
| Certification: |
ISO |
Product Description
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and others with wood structure and similiar hardness.
Movable table guide track is plating chromium steel bar structure, exact and durable.
Made of high-stenth extruded aluminum alloy, movable table is high in stength and won't bend.
With oxidation treatment, movable table surface is beautiful and hardwearing.
Electric control of main saw blade, digital display of tilting angle and rip fence position.
NOTEWe can arrange shipment for your if need.
We guarantee the machine body for one year, three months for easy-broken parts.
Package:standtard export wooden cast package
Delivery time:20 days after getting the deposit(depends the quantity)
Should you have any question, contact us freely
Best regards
Amy
Qingdao SOSN Machinery Co.,Ltd
www.sosnmachinery.com
| Dimension of sliding table |
3200×400mm | tilting saw blade | 0-45° |
| Gross cut capacity |
3200mm | Main motor | 5.5kw |
| Width of cut between saw blade and rip fence |
1250mm | Scoring saw blade diamter | 120mm |
| Saw blade diameter |
300mm(250-400) | Speed of scoring saw blade | 7000-8000rpm |
| Height of cut (300mm) |
80mm | Scoring spindle diameter | 20mm |
| Height of cut with saw blade 300mm at 45° |
60mm | Scoring motor | 1.1kw |
| Speed of main saw spindle |
4500/600rpm | Gross weight | 850kg |
| Main spindle diameter |
30mm | Overall dimension | 3250χ3350χ900mm |
