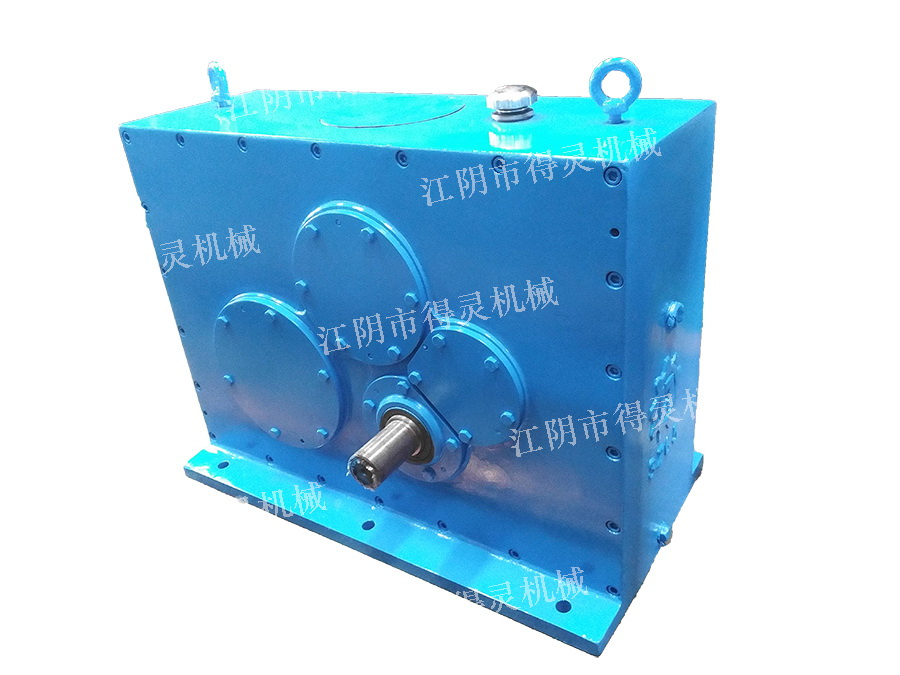

Sz Series Conical Twin Screw Extruder Reducer for Plastic Machine
| Price: |
US $ 1000-9000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Material: |
High Strength Alloy Steel |
Product Description
Company show:
Exhibition experience:
Cooperation company:
The main products have the following characteristics:1.The series product is hard tooth-faced gearing that produced according to the ZBJ-9009-88 standard.
2.Gear of reducer is high strength alloy carburizing steel material ,goes through carburizing and quenching gear grinding,with six-grade precision,high strength and low noise.
3.Distribution box small taper angle spiral wheel use 380CrM, Al material,goes through gear cutting by CNC gear hobbing machine and nitrogen treatment,with high precision and high hardness.
4.Use globular graphite cast iron box and high strength self-aligning trust roller bearings, can bear larger axial thrust.
5.Both reduction gearbox and distribution box are equipped with cooling installations,with reliable operation.
6.All that through cutting machining have plain and beautiful appearance.Besides existing specifications,it also can design and manufacture other products with different specifications according to the user's requuirements.
Main technical parameters| Size | Power (KW) | Input speed(RPM) | Ratio(i) |
Output Speed
(RPM) | Single Shaft Torque(N.m) | Single Axie Allowable Thrust(KN) |
| SZ35 | 11 | 1500 | 31.6 | 47.4 | 1108 | 90 |
| SZ45 | 18.5 | 33.5 | 44.8 | 1972 | 100 |
| SZ50 | 22 | 39.7 | 37.8 | 2779 | 120 |
| SZ55 | 30 | 37.5 | 37.5 | 3820 | 130 |
| SZ65 | 37 | 39.1 | 39.1 | 4518 | 165 |
| SZ80 | 55 | 38.8 | 38.7 | 6786 | 210 |
| SZ92 | 110 | 37.1 | 40.4 | 13130 | 295 |
Finally,our company will be engaged in product quality,delivery fast development cycle,reasonable price, considerate after sale service, user service. Wormly welcome to contact us!
Jiangyin Ya Kai Trade Co., Ltd., is under Jiangyin De Ling Machinery Co., Ltd., which has own export license. We are Industrial and trading company.
Jiangyin De Ling Machinery Co., Ltd., is located in Qiaoqi town Industrial Park, the Beijing Shanghai high way along the River interchange Qiaoqi exit, is the appointed enterprise specializing in the production of hardened gearbox.
Our company was established in 2002. From its very first day of operation to now, It has been concentrating in developing and manufacturing the gearbox especially for rubber and plastic machinery. Deling is a professional producer of gearboxes and well qualified for ISO 9001. By means of purchasing precised fabricating equipments consistently and continuously investigating and innovating, all of the gearboxes made by Deling are qualified with the features as high torque, low noise dB. Less trouble and longer lifetime, which was appreciated by the machinery makers. Our main products are SZ and SZL series conical twin-screw gearboxes, ZLYJ series single screw extruder gearboxes, ZJY series shaft mounted hardened gear speed reducers, SJZ new double screw extruder gearboxes, and YPS incongruous parallel double screw extruder gearboxes and other main parts of industrial reducers.
Deling will take the advantage of the experience accumulated from nearly twenty years and hundreds of thousands of gearboxes being made and to be always look at the demands of the customers to creat the most innovative models. Deling group would promote ourselves to the rubber and plastic machinery field of world and creat a new brand future. Our aim: Integrity, efficient, innovation and quality.
