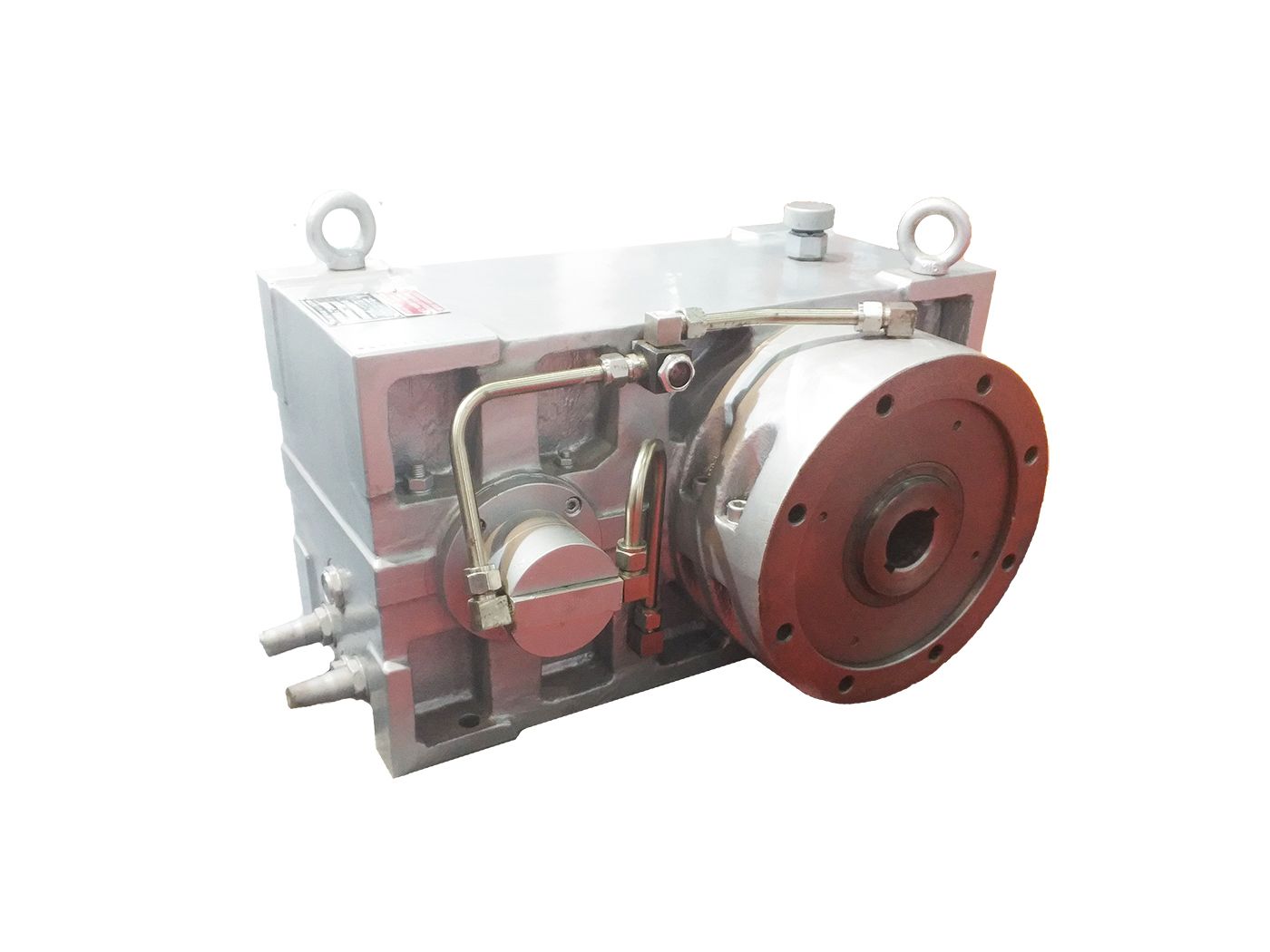

Zlyj Series Single Screw Reducer for Plastic Machine
| Price: |
US $ 365-2000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Material: |
High Strength Alloy Steel |
Product Description

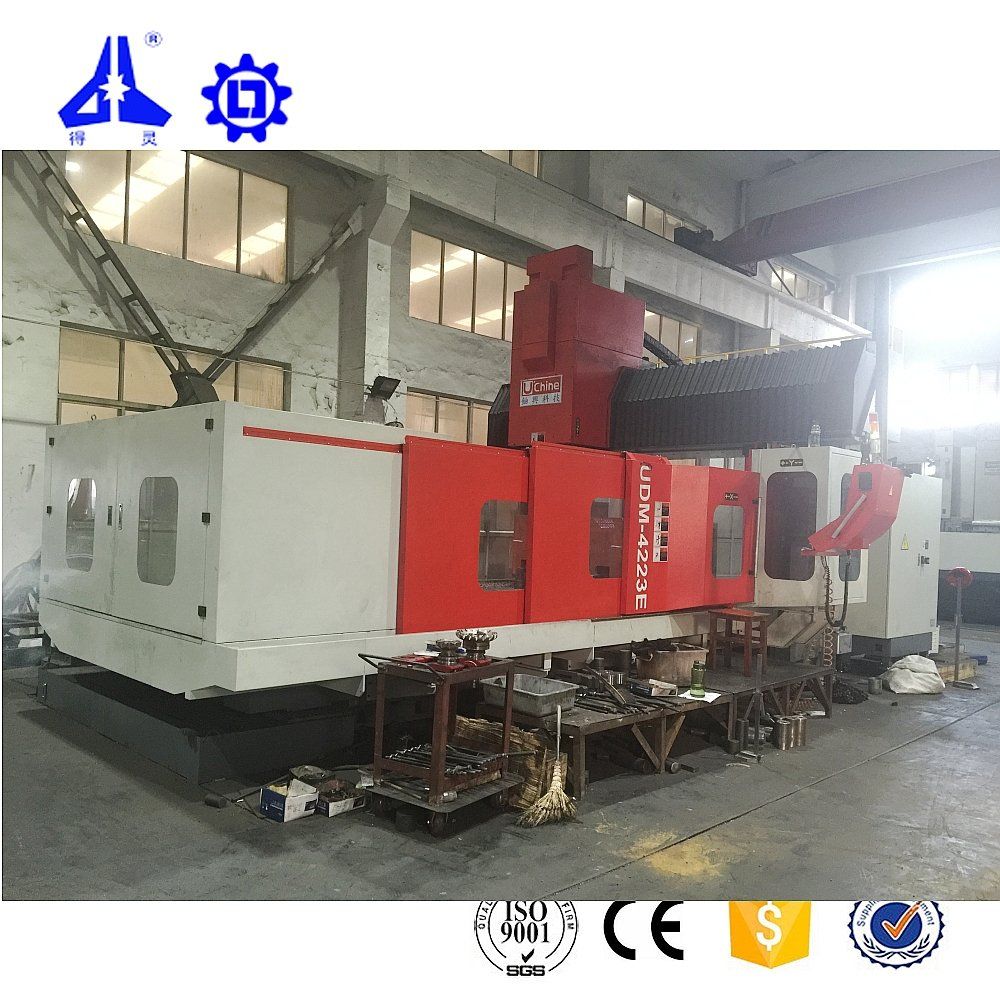

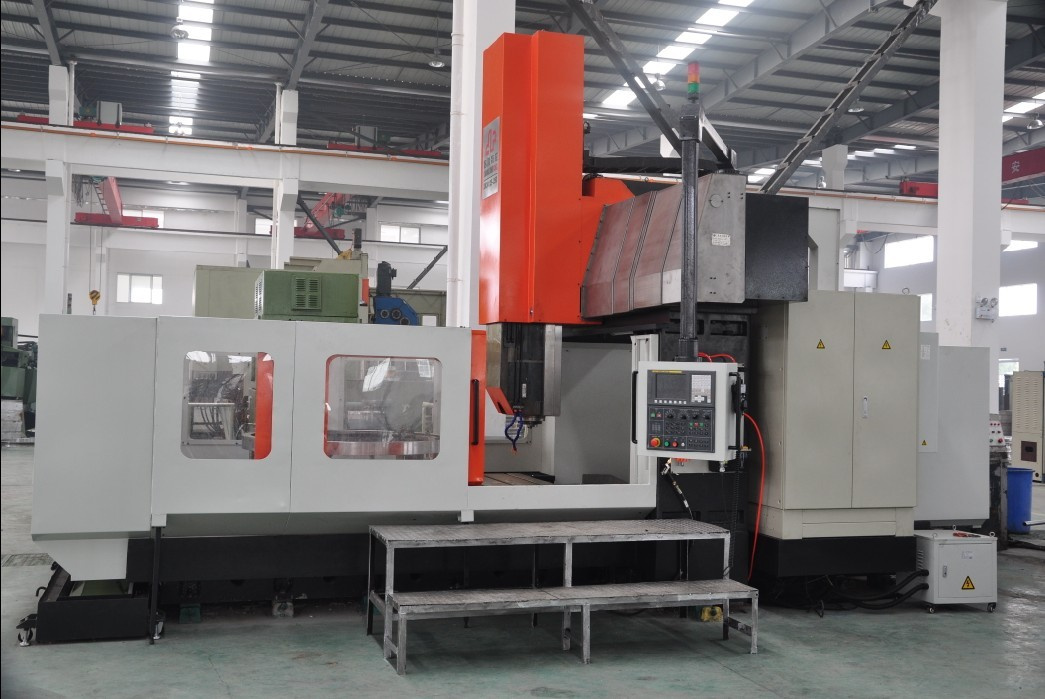

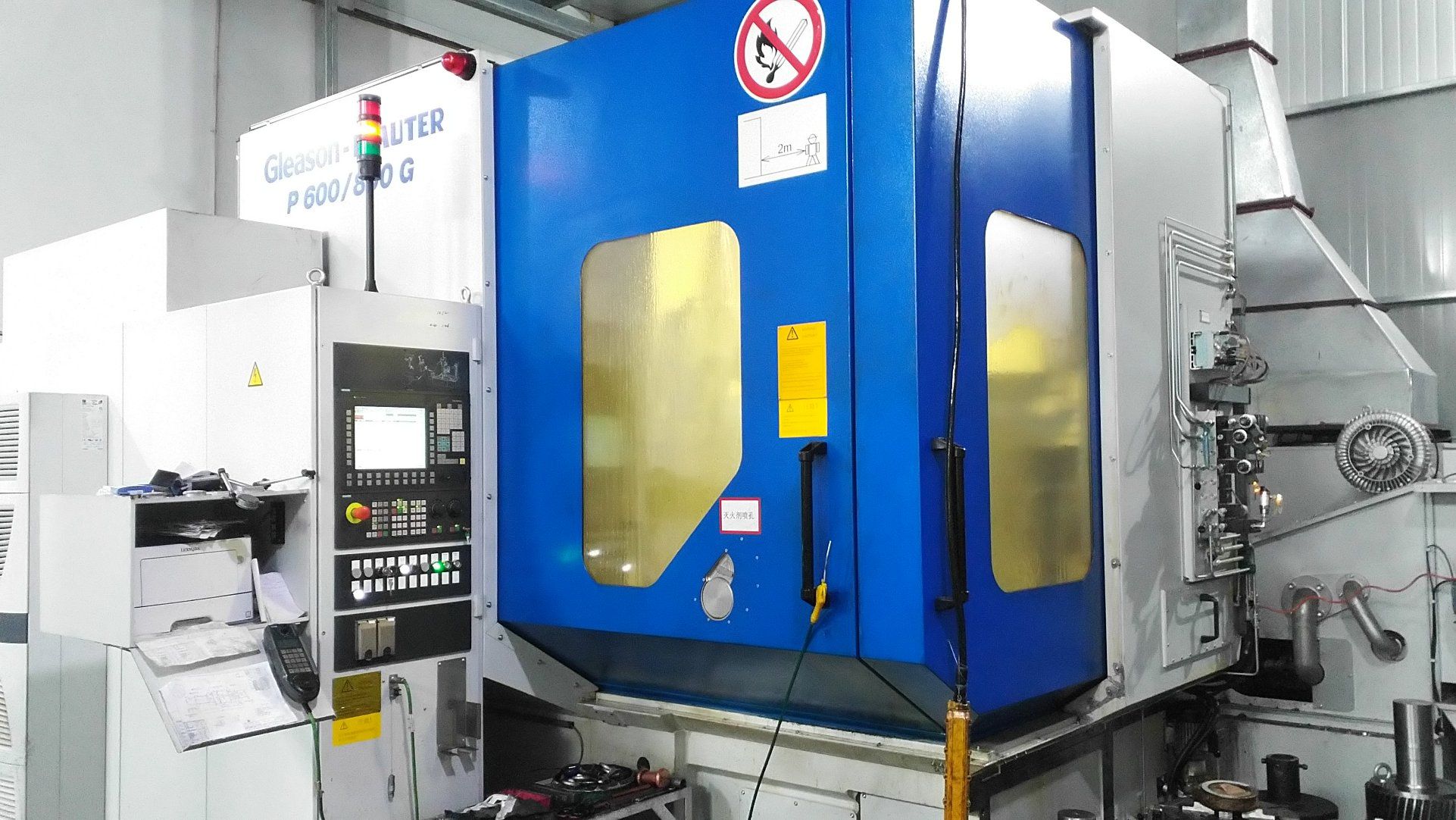

Company show:
Cooperation company:
The mian products have the following characteristics:1.Product design uses all technical specifications that provides by JB/T9095.1-1999, which is characterized by using high strength HRC54-62.
2.The front end of hollow output shaft is equipped with super-specification thrust bearing, and bears working recoil of screw.
3.The main standard components of bearings and oil seal use domestic high quality products, and also can be equipped with imported products according to customer demands.
4.The complete machine has the features of small volume, high loading capacity, steady transmission, low noise and high efficiency.Working Condition1.Gearbox normal ambient temperture is -10°C~50°C, ambient humidity is ≤80%, outside the normal range, please consult the company.
2.The working environment should be no dust, and air exchange place, no corrosive gas, or vapor.

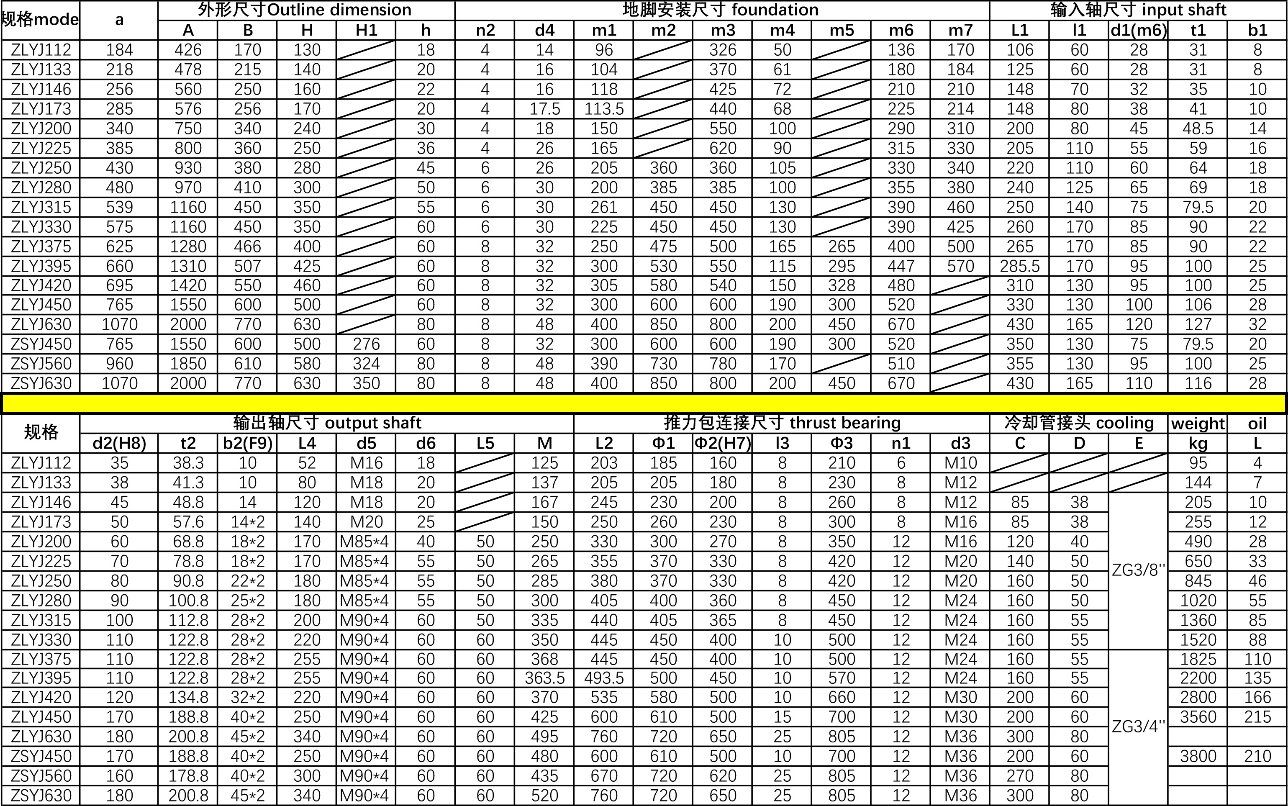

3.Gearbox input speed is generally not more than 1500r/min;Gears peripheral speed is not more than 20m/s.technical parameters:| Model | ZLYJ 112 | ZLYJ 133 | ZLYJ 146 | ZLYJ 173 | ZLYJ 200 | ZLYJ 225 | ZLYJ 250 |
| Power(Kw) | 5.5-4P | 8-4P | 11-4P | 18.5-4P | 26-4P | 45-4P | 45-4P |
| Ratio(standard) | 8 | 8 | 10 | 10 | 12.5 | 12.5 | 16 |
|
| screw diameter(mm) | Φ35 | Φ45/50 | Φ55 | Φ65 | Φ75 | Φ90 | Φ100 |
| Model | ZLYJ 280 | ZLYJ 315 | ZLYJ 330 | ZLYJ 375 | ZLYJ 420 | ZLYJ 450 | ZLYJ 560 |
| Power(Kw) | 55-6P | 75-6P | 132-6P | 132-6P | 160-6P | 213-6P | 440-6P |
| Ratio | 16 | 16 | 16 | 20 | 20 | 20 | 20 |
|
| screw diameter(mm) | Φ100/105 | Φ120 | Φ150/160 | Φ150/160 | Φ165 | Φ165 | Φ190 |
Finally,our company will be engaged in product quality,delivery fast development cycle,reasonable price, considerate after sale service, user service. Wormly welcome to contact us!
Jiangyin Ya Kai Trade Co., Ltd., is under Jiangyin De Ling Machinery Co., Ltd., which has own export license. We are Industrial and trading company.
Jiangyin De Ling Machinery Co., Ltd., is located in Qiaoqi town Industrial Park, the Beijing Shanghai high way along the River interchange Qiaoqi exit, is the appointed enterprise specializing in the production of hardened gearbox.
Our company was established in 2002. From its very first day of operation to now, It has been concentrating in developing and manufacturing the gearbox especially for rubber and plastic machinery. Deling is a professional producer of gearboxes and well qualified for ISO 9001. By means of purchasing precised fabricating equipments consistently and continuously investigating and innovating, all of the gearboxes made by Deling are qualified with the features as high torque, low noise dB. Less trouble and longer lifetime, which was appreciated by the machinery makers. Our main products are SZ and SZL series conical twin-screw gearboxes, ZLYJ series single screw extruder gearboxes, ZJY series shaft mounted hardened gear speed reducers, SJZ new double screw extruder gearboxes, and YPS incongruous parallel double screw extruder gearboxes and other main parts of industrial reducers.
Deling will take the advantage of the experience accumulated from nearly twenty years and hundreds of thousands of gearboxes being made and to be always look at the demands of the customers to creat the most innovative models. Deling group would promote ourselves to the rubber and plastic machinery field of world and creat a new brand future. Our aim: Integrity, efficient, innovation and quality.
