Tct Magnetic Drill Annular Cutter 35mm Depth Universal Shank
| Price: |
US $ 12-36/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DNTC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutter: |
Annular Cutter |
| Cutter Type: |
Core Drill Bit |
| Use: |
Metal Drilling |
| Shank Type: |
Universal Shank Cutter |
| Treatment: |
All-Ground |
| Performance: |
Better Endurance |
Product Description

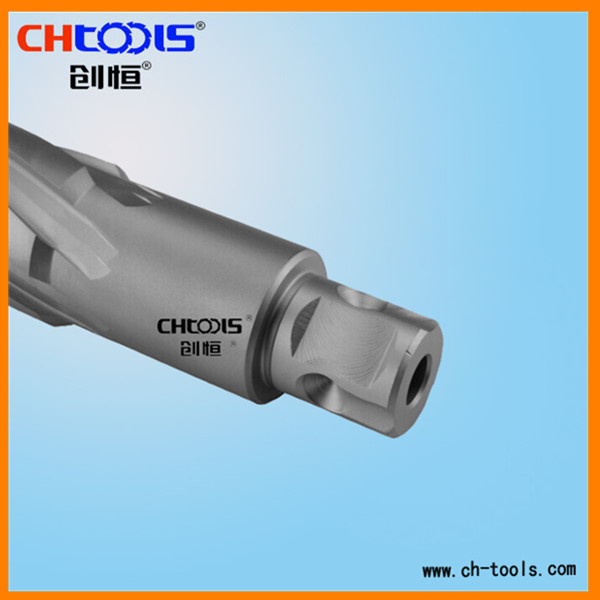

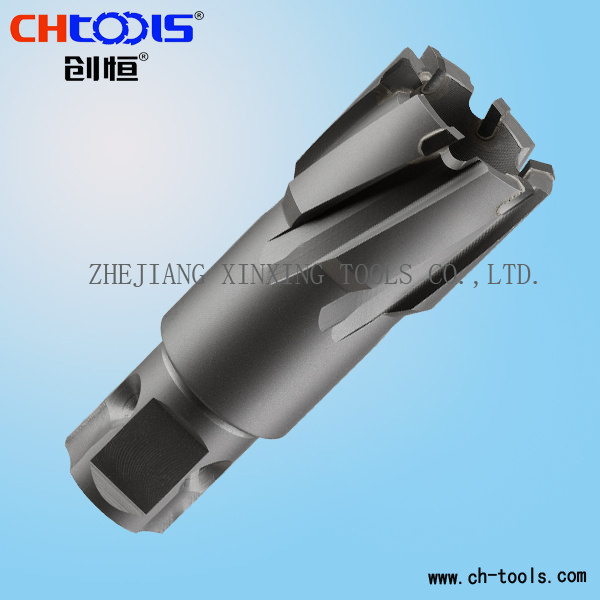

1. T. C. T. Annular cutter range with C type Universal shank (also called Multi- shank), The diameter of shank is 19.05mm, which is suitable for Quick-change arbor connector with 120° Three-point positioning and arbor connector with 90° Two-point perpendicular positioning. It fits various brands of magnetic drills imported from Japan, Europe, USA as well as magnetic drills Made in China and other drilling facilities like drill press, radial drilling press( Normal machine tools should be assembled with Morse Taper arbors)
2. Made of special imported tungsten carbide tips, with stratified chip geometry and design of low friction on cutting edges, with the advantage of anti-chipping and longer tool life.
3. Special production lines with CNC precision equipments and scientific quality control system, which provide product accuracy and consistency. Model | Size | Type | Size |
DNTC-30120 | 12*35 | DNTC-C0500 | 1/2"* 1-3/8" |
DNTC-30130 | 13*35 | DNTC-C0562 | 9/16" * 1-3/8" |
DNTC-30140 | 14*35 | DNTC-C0625 | 5/8" * 1-3/8" |
DNTC-30150 | 15*35 | DNTC-C0687 | 11/16" * 1-3/8" |
DNTC-30160 | 16*35 | DNTC-C0750 | 3/4" * 1-3/8" |
DNTC-30170 | 17*35 | DNTC-C0812 | 13/16" * 1-3/8" |
DNTC-30180 | 18*35 | DNTC-C0875 | 7/8" * 1-3/8" |
DNTC-30185 | 18.5*35 | DNTC-C0937 | 15/16" * 1-3/8" |
DNTC-30190 | 19*35 | DNTC-C1000 | 1" * 1-3/8" |
DNTC-30200 | 20*35 | DNTC-C1062 | 1-1/16" * 1-3/8" |
DNTC-30205 | 20.5*35 | DNTC-C1125 | 1-1/8" * 1-3/8" |
DNTC-30210 | 21*35 | DNTC-C1187 | 1-3/16" * 1-3/8" |
DNTC-30215 | 21.5*35 | DNTC-C1250 | 1-1/4" * 1-3/8" |
DNTC-30220 | 22*35 | DNTC-C1312 | 1-5/16" * 1-3/8" |
DNTC-30225 | 22.5*35 | DNTC-C1375 | 1-3/8" * 1-3/8" |
DNTC-30230 | 23*35 | DNTC-C1437 | 1-7/16" * 1-3/8" |
DNTC-30240 | 24*35 | DNTC-C1500 | 1-1/2" * 1-3/8" |
DNTC-30245 | 24.5*35 | DNTC-C1562 | 1-9/16" * 1-3/8" |
DNTC-30250 | 25*35 | DNTC-C1625 | 1-5/8" * 1-3/8" |
DNTC-30260 | 26*35 | DNTC-C1687 | 1-11/16" * 1-3/8" |
DNTC-30265 | 26.5*35 | DNTC-C1750 | 1-3/4" * 1-3/8" |
DNTC-30270 | 27*35 | DNTC-C1812 | 1-13/16" * 1-3/8" |
DNTC-30280 | 28*35 | DNTC-C1875 | 1-7/8" * 1-3/8" |
DNTC-30290 | 29*35 | DNTC-C1937 | 1-15/16" * 1-3/8" |
DNTC-30300 | 30*35 | DNTC-C2000 | 2" * 1-3/8" |
DNTC-30310 | 31*35 | DNTC-C2062 | 2-1/16" * 1-3/8" |
DNTC-30320 | 32*35 | DNTC-C2125 | 2-1/8" * 1-3/8" |
DNTC-30330 | 33*35 | DNTC-C2187 | 2-3/16" * 1-3/8" |
DNTC-30340 | 34*35 | DNTC-C2250 | 2-1/4" * 1-3/8" |
DNTC-30350 | 35*35 | DNTC-C2312 | 2-5/16" *1-3/8" |
DNTC-30360 | 36*35 | DNTC-C2375 | 2-3/8" *1"-3/8" |
...... | ...... | | |
DNTC-30600 | 60*35 | | |
Zhejiang Xinxing Tools Co., Ltd. Established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. It is the worldwide leader in annular cutter industry.
Our products include: Annular cutter, rail cutter, hole saw, spade drill, step drill, countersink, solid carbide cutter, magnetic drill machine, diamond drilling bit, deep hole drill, etc.
We concentrate on manufacturing high-quality cutting tools, normalize ISO9001: 2008 quality control system under operation strictly, and ensure unified high standard quality requirements. Staying with hardwork and perseverance, CHTOOLS Brand has been created and widely acknowledged resulting from the valuable trust of all esteemed customers.

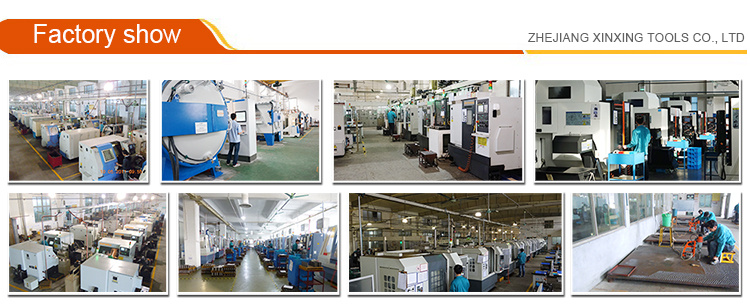

We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, and all the production processes are completed by our own factory. We also own top detecting instrument in the world, conducting a series of detections to raw materials, heat treatment, and cutting tools. For you, which means: The most reliable products supply and the fastest delivery time.
For 25 years, the company has won over one hundred honors successively.
In future, we will continue to devote to be an international leading cutting tools manufacturer, to provide you with more effective and excellent service, be a designated cutting tools supplier who you can rely on from your deep heart.
