Telescopic Hydraulic Cylinder Used for Heavy Machine

Name: Telescopic Hydraulic Cylinder Used for Heavy Machine
Brand: tool-buy.com
SKU: 817604015
Availability: InStock
Rating: 4.7 (96 reviews)

Price:	US $ 200-1000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Jiangsu Feiyao Machinery Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	FY Series
Product Name:	Telescopic Hydraulic Cylinder for Heavy Machine
Body Material:	Steel
Capacity:	10-128ton
Stroke:	135-600mm
Oil Capacity:	810-6803mm
Effective Area:	15.9-201mm
Certificate:	Ce, ISO9001:2008
Weight:	17-106kg
Shipping:	by Sea, Air, Express
Payment:	T/T

Product Description

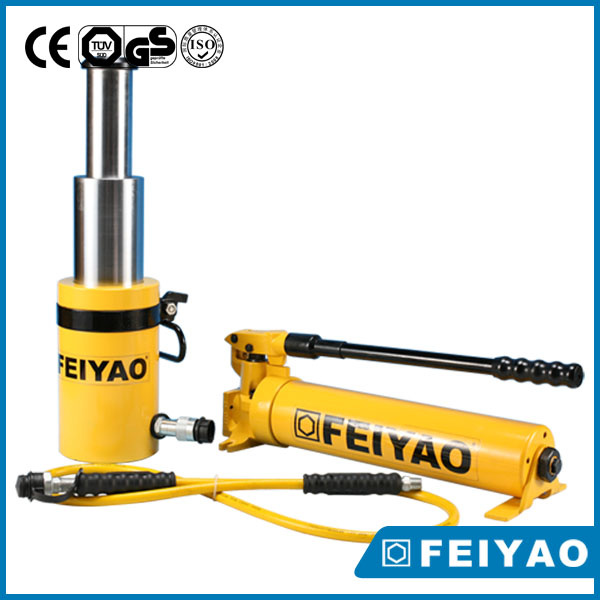

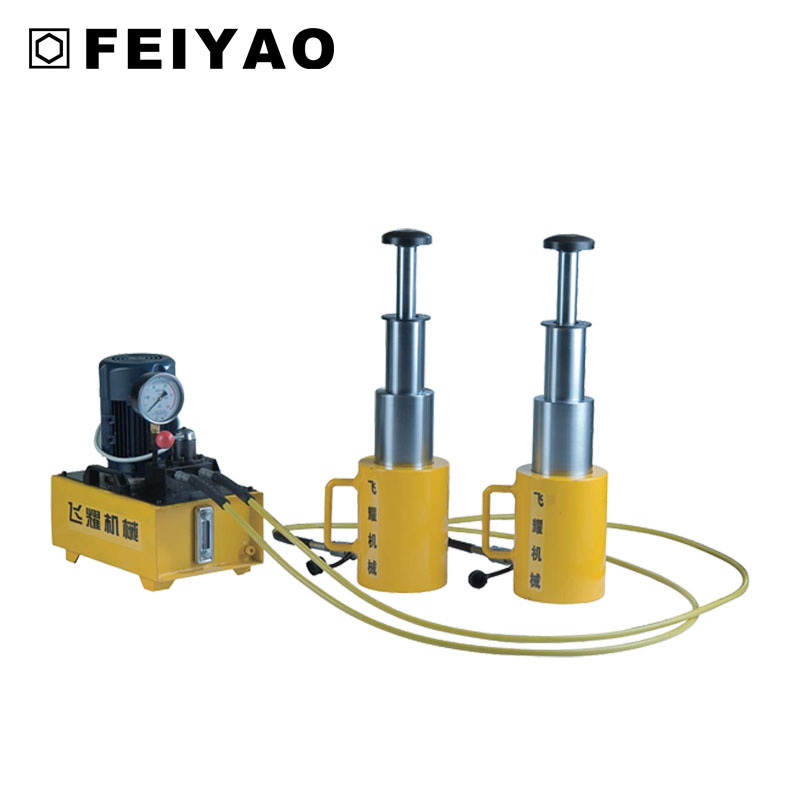

Telescopic hydraulic cylinder for heavy machine

Features:
◊ telescopic and multi rams design, low height, long stroke, single acting.

◊ compact design for widely use load return as per customer requirement.

◊ plunger wiper reduces contamination, extending cylinder life

◊ CR 400 coupler and dustcap included on all models

◊ baked enamel finish for increased corrosion resistance

Product Parameter

Model	Tonnage (ton)	Ram	Stroke (mm)	Effective Area (cm 2 )	Oil capacity (cm 3 )	A (mm)	B (mm)	D (mm)	E (mm)	E1 (mm)	F (mm)	F1 (mm)	H (mm)	K (mm)	L (mm)	Weight (kg)
FY-30	10	2	270	15.9	810	250	520	110	45	75	36	68	20	16	50	17
	30	1	135	44.15
FY-65	10	3	435	15.9	2250	280	715	152	45	110	36	95	21	19	75	39
	30	2	290	44.15
	65	1	145	95
FY-43	16	2	300	23.7	1308	280	580	125	55	90	50	80	25	16	66	26
	43	1	150	63.5
FY-84	16	3	500	23.7	3543	320	820	175	55	125	50	110	25	19	95	60
	43	2	340	63.5
	84	1	170	122.6
FY-65	30	2	300	44.15	2088	304	604	152	75	110	68	100	27	18	89	43
	65	1	150	95
FY-128	30	3	600	44.15	6803	366	966	220	75	160	68	150	27	20	123	106
	65	2	400	95
	128	1	200	201

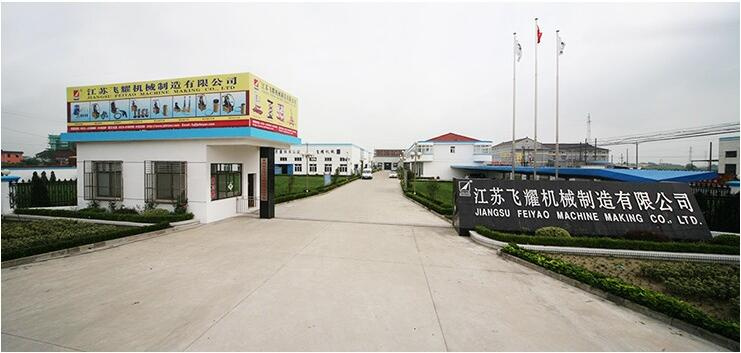

Company Introduction

Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.

Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:

Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;

Hydraulic torque wrenches(100-72000Nm);

PLC synchronous lifting system;

Hydraulic lifting pumps, manual and electric type;

Hydraulic pullers, manual and hydraulic type;

Hydraulic bolt tensioners;

Hydraulic flange spreader, manual and hydraulic type;

Hydraulic steel wire rope press machine

Hydraulic accessories(hoses, couplers, oil distributors, etc.)

Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.

We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.

IF YOU ARE LOOKING FOR SOME HYDRAULI JACKS BUT DO NOT HAVE WHOLE SPECS, PLEASE AT LEAST TELL US THREE FACTORS: 1. TONNAGE; 2. STROKE; 3. CLOSED HEIGHT. WE WILL RECOMMEND THE MOST SUITABLE TYPE FOR YOU.

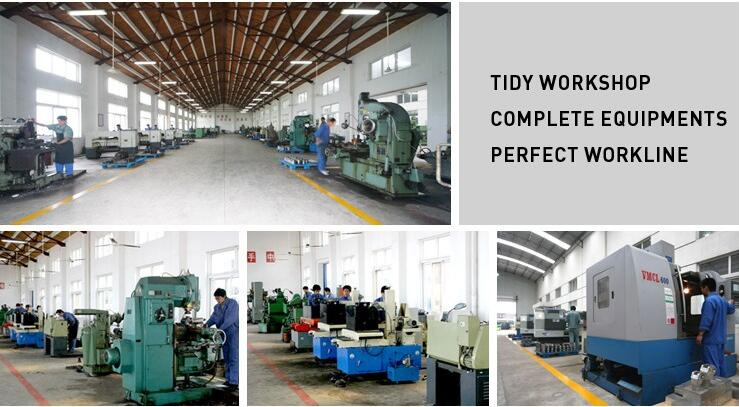

Factory Show

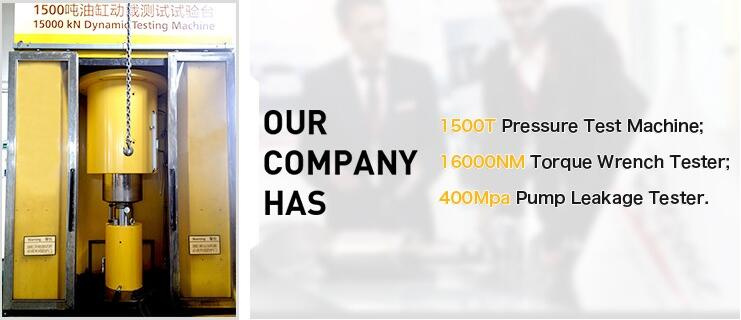

Quality Control

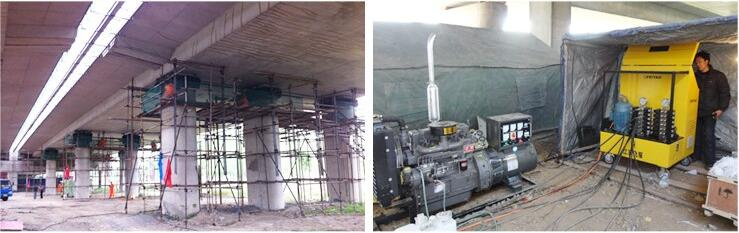

Successful Project

FAQ
Q1: How to contact sales?

A1: Please call: +86-132-7079-5135 for pre-sales.

Q2: How to make payment?

A2: Once order confirmed, we will prepare proforma invoice with our banking details.

Q3: How long does it take to process orders?

A3: It usually takes 10-14 business days to process most orders for no stock. If stock available, it only takes 2-3 business days.

Q4: What is the packing method?

A4: For small piece, we use carton box; for big piece, we use exporting grade plywood case.

Q5: How to ship?

A5: Sea freight, Air freight or International express(DHL, FEDEX,UPS...) all are available.

Q6: What is the warranty?

A6: 12 months against B/L date.
