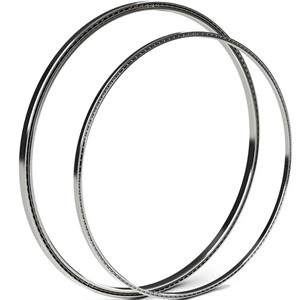

Thin Section Bearing for Welding Machinery (CSCG140)
| Price: |
US $ 320-350/Piece |
| Trade Terms: |
FOB,CIF,CIP |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
CSCG140 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Kaydon Replaced |
| Dimension: |
355.6*406.4*25.4mm |
| Operating Temperatures: |
-30 to +120 |
| Company History: |
Since 1993 |
| Testing: |
in House |
| Rolling Body: |
Ball Bearings |
| The Number Of Rows: |
Single |
| Outer Dimension: |
Medium and Large(',120-190mm) |
| Material: |
Bearing Steel |
| Load Direction: |
Radial Bearing |
| Separated: |
Separated |
Product Description
Specification for CSCG140 thin section bearings1.Material: Chrome steel Gcr15
2.Outer Diameter:406.4mm
3.Inner Diameter:355.6mm
4.Height:25.4mm
5.Application: welding machinery
Introduction to LYHY thin section bearing Thin section bearing are bearings with very small ring cross-section that can be used to save on design envelope and mass, as the name implies, the inside and outside diameters of the rings have been minimized. These thin section ball bearings are available as
deep groove ball bearings, angular contact ball bearings, four point contact ball bearings and crossed roller bearing, and can be divided into different types according the working condition, such as open type
bearings, shield type
bearings, and sealed type
bearings, they are also called
slim ball bearings, thin type bearings, thin bearing, thin wall bearings.LYHY is a professional manufacturer of all kinds of ball bearings, roller bearing, and precision bearing since 1993. Our bearings products and design solutions will enhance your product performance; make your company more competitive, and make your job easier.
2. Structure Kaydon Thin Section Bearing (cross section thin bearings)618/619 Thin Section Bearings (deep groove ball bearings)62/63/64/67/67/69 Thin Section Bearings (deep groove ball bearings)RB/RE/CRBC/CRBH/SX Thin Section Bearings (slewing ring bearings)
3. FeaturesThin section bearing have high precision, and very quiet and have high load carrying capacity, features of thin section bearings can be summarized as followingExcellent running accuracySpaces saveLow frictionHigh precisionLong lifeLow noise and vibration 4. ApplicationThin section ball bearings were developed for applications where space limitations are of the utmost importance. These kind of bearings are widely used for aviation, astronomical instruments, glass manufacturing machinery, medical instrument, optical and scanning instrument, satellite communication devices, textile machinery, large welding equipment, robot, semiconductor manufacturing equipment etc.print machinery

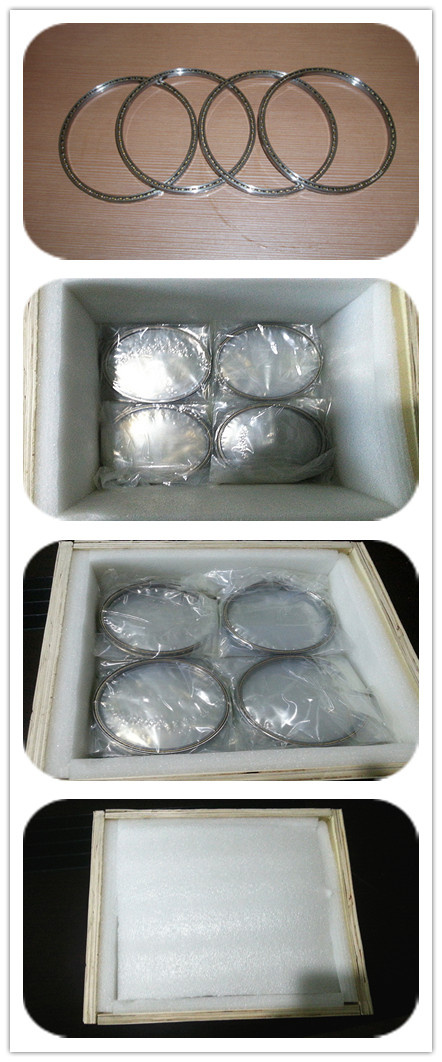

5. PackingWooden box

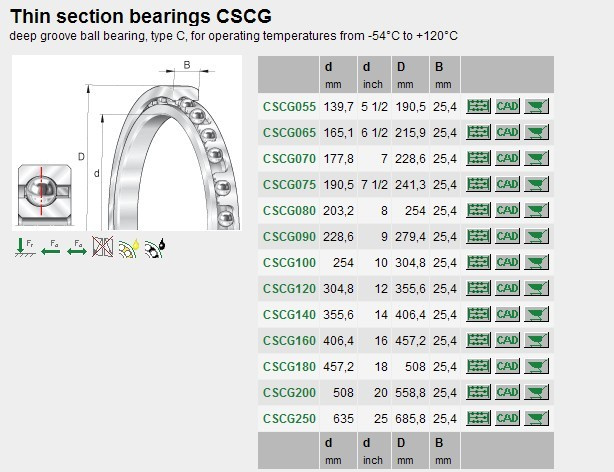

| Model | Dimension |
| d | D | Width |
|
| mm |
| CSCG055 | 139.700 | 190.500 | 25.4 |
| CSCG065 | 165.100 | 215.900 | 25.4 |
| CSCG070 | 177.800 | 228.600 | 25.4 |
| CSCG075 | 190.500 | 241.300 | 25.4 |
| CSCG080 | 203.200 | 254.000 | 25.4 |
| CSCG090 | 228.600 | 279.400 | 25.4 |
| CSCG100 | 254.000 | 304.800 | 25.4 |
| CSCG120 | 304.800 | 355.600 | 25.4 |
| CSCG140 | 355.6 | 406.4 | 25.4 |
| CSCG160 | 406.4 | 457.2 | 25.4 |
| CSCG180 | 457.2 | 508 | 25.4 |
| CSCG200 | 508 | 558.8 | 25.4 |
| CSCG250 | 635 | 685.8 | 25.4 |
Who we are?
We (Luoyang huayang special heavy-duty and large bearing manufacturing Co., Ltd) are a professional bearing manufacturer in the world. Established in 2000, has been specializing in bearings' design, production, sales, marketing and service. For 11 years experiences, our bearings have flied to USA, Europe, Middle East, Asia and Africa.
Our technical team:
We have 250 employees, with 10 experienced engineers and 30 professional technicists. All our bearings are designed by CAD-programs, made according to customers' special demands. Our technical team can also verify safety & reliability depending on the load case and the strength of raceway as well as gear and bolt connections.
Manufacturing:
Equipped with advanced manufacturing equipments and test instruments, all bearings are of uniform marking and packing with superior quality, reasonable price and perfect services. Our bearings cover 10 main kinds with thousands of types, including slewing bearings, split bearings, rolling mill bearings, deep groove ball bearings, spherical ball bearings, cylindrical roller bearings, spherical roller bearings, needle bearings, taper roller bearings, thrust ball bearings, thrust roller bearings, self-aligning bearings, thin-section bearings, YRT bearings, spherical plain bearing, etc.
Quality:
We have been certificated by ISO9001: 2008, and we are also aligned to international quality standards from application consulting and engineering to productions, examinations, documentations and dispatch.
We will prepare additional test reports if customers need.
Position advantage:
Depending on strong heavy-duty industrial base of Luoyang, this is one of the hometowns of Chinese bearing. We can also design and develop special bearings as per customers' demands, we aim at providing customers with best products and prompt & perfect services.
