Thin Wall Bearings-Slim Ball Bearings for Semiconductor Machinery

Name: Thin Wall Bearings-Slim Ball Bearings for Semiconductor Machinery
Brand: tool-buy.com
SKU: 686962382
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	US $ 75-110/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Luoyang Huayang Special Heavy-Duty and Large Bearing Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	KA042AR0
Markets:	North America,Southeast Asia,Mid East
Company History:	Since 1993
Brand:	Kaydon
Ring Material:	Chrome Steel Gcr15
Cage Material:	Brass
Internal Diameter:	4.25inch
External Diameter:	4.75inch
Height:	0.25inch
Performance:	High
Testing:	in House
Precision:	Abec1

Product Description

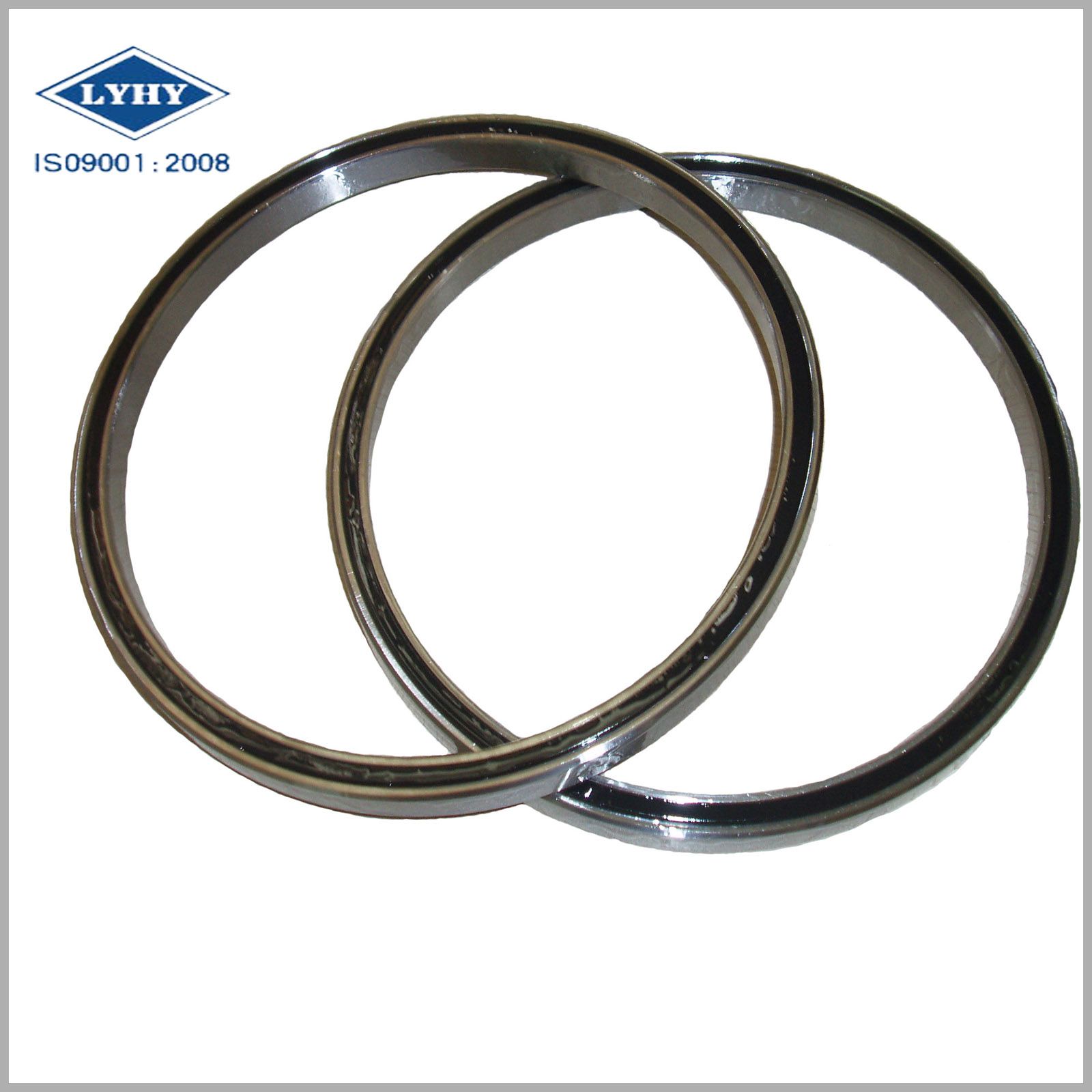

Specifications for KAYDON KA042ARO thin section bearing / slim ball bearings
Model: KA042ARO
Structure: Angular contact ball thin section bearings
Material: Chrome steel Gcr15
Cage: Brass
Internal diameter: 4.25inch
External diameter: 4.75inch
Height: 0.25inch
Precision: ABEC1
Tolerance for outer and inner ring: 0.02

Brief introduction to Kaydon thin section bearings
LYHY bearings are a professional manufacturer of substitution of imported brand thin section bearings, which includes seven open series and five sealed series, inner hole diameter of these slim ball bearings range from 1 to 40 inches, cross-sectional dimension is from 0.1875X0.1875 to 1.000X1.000. These ball bearings have an extremely small, predominantly square cross-section, within each series, the cross-section remains constant even for larger shaft diameters and housing bores. Except the standard models, we can also design and manufacture as per customers' requirements. With rich experience and a large collection of products, we have confidence we are able to meet customers' requirements.

Structure
Open type deep groove ball bearing thin section bearing
Open type angular contact bearing thin section bearing
Open type four point contact bearing thin section ball bearing
Sealed type deep groove ball bearing slim bearing
Sealed four point contact ball bearing slim ball bearing

Feature
1. Compact structure, light weight, low vibration and friction
2. High precision,
3. Space and cost saving
4. Best quality, long life

Application
Aviation, astronomical instruments, glass manufacturing machinery, medical instrument, optical and scanning instrument, satellite communication devices, textile machinery, large welding equipment, robot, semiconductor manufacturing equipment etc. Print machinery.

Packing:
1. A single or couple of thin section bearings into a PE bag
2. All into a wooden box

Model	Dimension
	d	D	Width	L1	L2	L3
	d	D	Width
	inch
KA020AR0	2.000	2.500	0.250	2.186	2.314	2.369
KA025AR0	2.500	3.000	0.250	2.686	2.814	2.869
KA030AR0	3.000	3.500	0.250	3.186	3.314	3.367
KA035AR0	3.500	4.000	0.250	3.686	3.814	3.867
KA040AR0	4.000	4.500	0.250	4.186	4.314	4.367
KA042AR0	4.250	4.750	0.250	4.436	4.564	4.615
KA045AR0	4.500	5.000	0.250	4.686	4.814	4.865
KA047AR0	4.750	5.250	0.250	4.936	5.064	5.115
KA050AR0	5.000	5.500	0.250	5.186	5.314	5.365
KA055AR0	5.500	6.000	0.250	5.686	5.814	5.863
KA060AR0	6.000	6.500	0.250	6.186	6.314	6.363
KA065AR0	6.500	7.000	0.250	6.686	6.814	6.861
KA070AR0	7.000	7.500	0.250	7.186	7.314	7.361
KA075AR0	7.500	8.000	0.250	7.686	7.814	7.861
KA080AR0	8.000	8.500	0.250	8.186	8.314	8.359
KA090AR0	9.000	9.500	0.250	9.186	9.314	9.357
KA100AR0	10.000	10.500	0.250	10.186	10.314	10.355
KA110AR0	11.000	11.500	0.250	11.186	11.314	11.353
KA120AR0	12.000	12.500	0.250	12.186	12.314	12.349
KB020AR0	2.000	2.625	0.3125	2.231	2.393	2.464
KB025AR0	2.500	3.125	0.3125	2.731	2.893	2.964
KB030AR0	3.000	3.625	0.3125	3.231	3.393	3.462
KB035AR0	3.500	4.125	0.3125	3.731	3.893	3.962
KB040AR0	4.000	4.625	0.3125	4.231	4.393	4.460
KB042AR0	4.250	4.875	0.3125	4.481	4.643	4.710
KB045AR0	4.500	5.125	0.3125	4.731	4.893	4.960
KB047AR0	4.750	5.375	0.3125	4.981	5.143	5.210
KB050AR0	5.000	5.625	0.3125	5.231	5.393	5.460
KB055AR0	5.500	6.125	0.3125	5.731	5.893	5.958
KB060AR0	6.000	6.625	0.3125	6.231	6.393	6.458
KB065AR0	6.500	7.125	0.3125	6.731	6.893	6.958
KB070AR0	7.000	7.625	0.3125	7.231	7.393	7.456
KB075AR0	7.500	8.125	0.3125	7.731	7.893	7.955
KB080AR0	8.000	8.625	0.3125	8.231	8.393	8.453
KB090AR0	9.000	9.625	0.3125	9.231	9.393	9.451
KB100AR0	10.000	10.625	0.3125	10.231	10.393	10.449
KB110AR0	11.000	11.625	0.3125	11.231	11.393	11.447
KB120AR0	12.000	12.625	0.3125	12.231	12.393	12.445
KB140AR0	14.000	14.625	0.3125	14.231	14.393	14.439
KB160AR0	16.000	16.625	0.3125	16.231	16.393	16.433
KB180AR0	18.000	18.625	0.3125	18.231	18.393	18.425
KB200AR0	20.000	20.625	0.3125	20.231	20.393	20.416
KC040AR0	4.000	4.750	0.375	4.277	4.473	4.554
KC042AR0	4.250	5.000	0.375	4.527	4.723	4.804
KC045AR0	4.500	5.250	0.375	4.777	4.973	5.052
KC047AR0	4.750	5.000	0.375	5.027	5.223	5.302
KC050AR0	5.000	5.750	0.375	5.277	5.473	5.552
KC055AR0	5.500	6.250	0.375	5.777	5.973	6.052
KC060AR0	6.000	6.750	0.375	6.277	6.473	6.550
KC065AR0	6.500	7.250	0.375	6.777	6.973	7.050
KC070AR0	7.000	7.750	0.375	7.277	7.473	7.550
KC075AR0	7.500	8.250	0.375	7.777	7.793	8.048
KC080AR0	8.000	8.750	0.375	8.277	8.473	8.548
KC090AR0	9.000	9.750	0.375	9.277	9.473	9.546
KC100AR0	10.000	10.750	0.375	10.277	10.473	10.544
KC110AR0	11.000	11.750	0.375	11.277	11.473	11.542
KC120AR0	12.000	12.750	0.375	12.277	12.473	12.540
KC140AR0	14.000	14.750	0.375	14.277	14.473	14.535
KC160AR0	16.000	16.750	0.375	16.277	16.473	16.529
KC180AR0	18.000	18.750	0.375	18.277	18.473	18.523
KC200AR0	20.000	20.750	0.375	20.277	20.473	20.517
KD040AR0	4.000	5.000	0.500	4.370	4.630	4.741
KD042AR0	4.250	5.250	0.500	4.620	4.880	4.991
KD045AR0	4.500	5.500	0.500	4.870	5.130	5.241
KD047AR0	4.750	5.750	0.500	5.120	5.380	5.490
KD050AR0	5.000	6.000	0.500	5.370	5.630	5.740
KD055AR0	5.500	6.500	0.500	5.870	6.130	6.238
KD060AR0	6.000	7.000	0.500	6.370	6.630	6.738
KD065AR0	6.500	7.500	0.500	6.870	7.130	7.236
KD070AR0	7.000	8.000	0.500	7.370	7.630	7.736
KD075AR0	7.500	8.500	0.500	7.870	8.130	8.236
KD080AR0	8.000	9.000	0.500	8.370	8.630	8.734
KD090AR0	9.000	10.000	0.500	9.370	9.630	9.732
KD100AR0	10.000	11.000	0.500	10.370	10.630	10.732
KD110AR0	11.000	12.000	0.500	11.370	11.630	11.730
KD120AR0	12.000	13.000	0.500	12.370	12.630	12.728
KD140AR0	14.000	15.000	0.500	14.370	14.630	14.724
KD160AR0	16.000	17.000	0.500	16.370	16.630	16.718
KD180AR0	18.000	19.000	0.500	18.370	18.630	18.712
KD200AR0	20.000	21.000	0.500	20.370	20.630	20.705
KF040AR0	4.000	5.500	0.750	4.555	4.945	5.115
KF042AR0	4.250	5.750	0.750	4.805	5.195	5.365
KF045AR0	4.500	6.000	0.750	5.005	5.445	5.615
KF047AR0	4.750	6.250	0.750	5.305	5.695	5.865
KF050AR0	5.000	6.500	0.750	5.555	5.945	6.115
KF055AR0	5.500	7.000	0.750	6.005	6.445	6.613
KF060AR0	6.000	7.500	0.750	6.555	6.945	7.113
KF065AR0	6.500	8.000	0.750	7.055	7.445	7.613
KF070AR0	7.000	8.500	0.750	7.555	7.845	8.113
KF075AR0	7.500	9.000	0.750	8.055	8.445	8.610
KF080AR0	8.000	9.500	0.750	8.555	8.945	9.110
KF090AR0	9.000	10.500	0.750	9.555	9.945	10.108
KF100AR0	10.000	11.500	0.750	10.555	10.945	11.106
KF110AR0	11.000	12.500	0.750	11.555	11.945	12.106
KF120AR0	12.000	13.500	0.750	12.555	12.945	13.104
KF140AR0	14.000	15.500	0.750	14.555	14.945	15.102
KF160AR0	16.000	17.500	0.750	16.555	16.945	17.098
KF180AR0	18.000	19.500	0.750	18.555	18.945	19.096
KF200AR0	20.000	21.500	0.750	20.555	20.945	21.092
KG040AR0	4.000	6.000	1.000	4.742	5.258	5.491
KG042AR0	4.250	6.250	1.000	4.992	5.508	5.741
KG045AR0	4.500	6.500	1.000	5.242	5.758	5.989
KG047AR0	4.750	6.750	1.000	5.492	6.008	6.239
KG050AR0	5.000	7.000	1.000	5.472	6.258	6.489
KG055AR0	5.500	7.500	1.000	6.242	6.758	6.989
KG060AR0	6.000	8.000	1.000	6.742	7.258	7.489
KG065AR0	6.500	8.500	1.000	7.242	7.758	7.987
KG070AR0	7.000	9.000	1.000	7.742	8.258	8.487
KG075AR0	7.500	9.500	1.000	8.242	8.758	8.987
KG080AR0	8.000	10.000	1.000	8.742	9.258	9.485
KG090AR0	9.000	11.000	1.000	9.742	10.258	10.485
KG100AR0	10.000	12.000	1.000	10.742	11.258	11.483
KG110AR0	11.000	13.000	1.000	11.742	12.258	12.481
KG120AR0	12.000	14.000	1.000	12.742	13.258	13.481
KG140AR0	14.000	15.000	1.000	14.742	15.258	15.478
KG160AR0	16.000	18.000	1.000	16.742	17.258	17.474
KG180AR0	18.000	20.000	1.000	18.742	19.258	19.472
KG200AR0	20.000	22.000	1.000	20.742	21.258	21.468

Who we are?
We (Luoyang huayang special heavy-duty and large bearing manufacturing Co., Ltd) are a professional bearing manufacturer in the world. Established in 2000, has been specializing in bearings' design, production, sales, marketing and service. For 11 years experiences, our bearings have flied to USA, Europe, Middle East, Asia and Africa.

Our technical team:
We have 250 employees, with 10 experienced engineers and 30 professional technicists. All our bearings are designed by CAD-programs, made according to customers' special demands. Our technical team can also verify safety & reliability depending on the load case and the strength of raceway as well as gear and bolt connections.

Manufacturing:
Equipped with advanced manufacturing equipments and test instruments, all bearings are of uniform marking and packing with superior quality, reasonable price and perfect services. Our bearings cover 10 main kinds with thousands of types, including slewing bearings, split bearings, rolling mill bearings, deep groove ball bearings, spherical ball bearings, cylindrical roller bearings, spherical roller bearings, needle bearings, taper roller bearings, thrust ball bearings, thrust roller bearings, self-aligning bearings, thin-section bearings, YRT bearings, spherical plain bearing, etc.

Quality:
We have been certificated by ISO9001: 2008, and we are also aligned to international quality standards from application consulting and engineering to productions, examinations, documentations and dispatch.
We will prepare additional test reports if customers need.

Position advantage:
Depending on strong heavy-duty industrial base of Luoyang, this is one of the hometowns of Chinese bearing. We can also design and develop special bearings as per customers' demands, we aim at providing customers with best products and prompt & perfect services.
