Thread Shank HSS Magnetic Drill Bit Tool
| Price: |
US $ 5-45/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DNHL |
| Cutter Type: |
Core Drill Bit |
| Cutter Material: |
High Speed Steel |
| Shank Type: |
Thread Shank Cutter Surfance |
| Treatment: |
All-Ground |
| Performance: |
Better Endurance |
Product Description

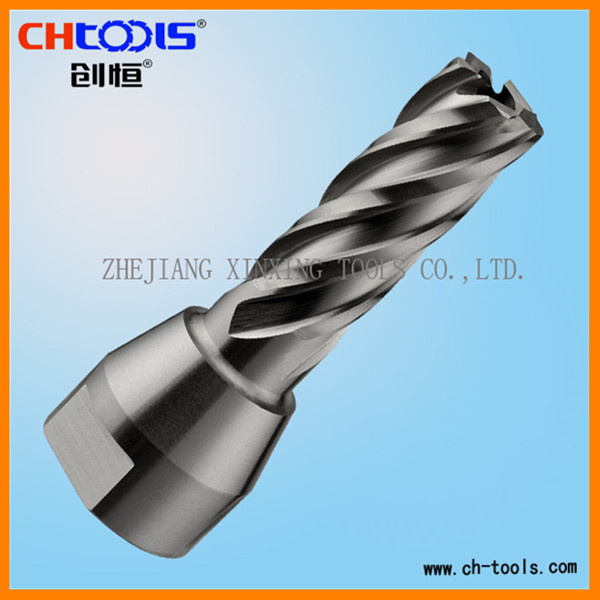

Thread shank HSS drill bit tool
1. M18*6/P1.5 thread shank(inside). Suitable on Fein Magnetic drills.
2. Made of super tough high speed steel., e. G. M2, M2AL, M35, M42, ASP2030 etc. And can be used on various materials, like steel plate, Copper, aluminium, cast iron, stainless steel and plastic. Multi-ply cutting end edge geometry, to improve removal of chips and keep less resistance.
The specifications from the Φ 12mm ~ Φ 65mm, depth of cutting 8mm, 25mm, 35mm, 50mm, 75mm, 100mm, series. Can be customized Φ 66mm ~ Φ 130mm, depth can be extended to 150mm according the needs of special occasions
4. TiN or TiAIN coating are available upon request.
5. The product is mainly used to process the hole of steel component, such as steel structure project, railway traffic, bridging, shipbuilding, machine manufacture, aviation and spaceflight.| Type | Size | Type | Size |
| DNHL-40120 | 12*50 | DNHL-40370 | 37*50 |
| DNHL-40130 | 13*50 | DNHL-40380 | 38*50 |
| DNHL-40140 | 14*50 | DNHL-40390 | 39*50 |
| DNHL-40150 | 15*50 | DNHL-40400 | 40*50 |
| DNHL-40160 | 16*50 | DNHL-40410 | 41*50 |
| DNHL-40170 | 17*50 | DNHL-40420 | 42*50 |
| DNHL-40180 | 18*50 | DNHL-40430 | 43*50 |
| DNHL-40190 | 19*50 | DNHL-40440 | 44*50 |
| DNHL-40200 | 20*50 | DNHL-40450 | 45*50 |
| DNHL-40210 | 21*50 | DNHL-40460 | 46*50 |
| DNHL-40220 | 22*50 | DNHL-40470 | 47*50 |
| DNHL-40230 | 23*50 | DNHL-40480 | 48*50 |
| DNHL-40240 | 24*50 | DNHL-40490 | 49*50 |
| DNHL-40250 | 25*50 | DNHL-40500 | 50*50 |
| DNHL-40260 | 26*50 | | |
| DNHL-40270 | 27*50 | | |
| DNHL-40280 | 28*50 | | |
| DNHL-40290 | 29*50 | | |
| DNHL-40300 | 30*50 | | |
| DNHL-40310 | 31*50 | | |
| DNHL-40320 | 32*50 | | |
| DNHL-40330 | 33*50 | | |
| DNHL-40340 | 34*50 | | |
| DNHL-40350 | 35*50 | | |
| DNHL-40360 | 36*50 | | |
Zhejiang Xinxing Tools Co., Ltd. Established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. It is the worldwide leader in annular cutter industry.

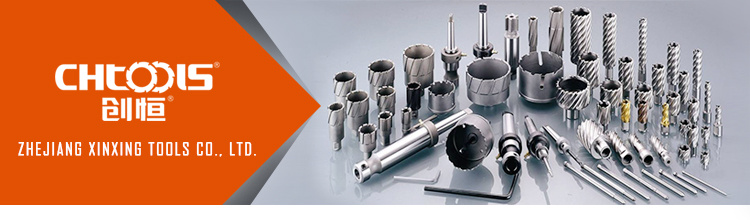

Our products include: Annular cutter, rail cutter, hole saw, spade drill, step drill, countersink, solid carbide cutter, magnetic drill machine, diamond drilling bit, deep hole drill, etc.
We concentrate on manufacturing high-quality cutting tools, normalize ISO9001: 2008 quality control system under operation strictly, and ensure unified high standard quality requirements. Staying with hardwork and perseverance, CHTOOLS Brand has been created and widely acknowledged resulting from the valuable trust of all esteemed customers.

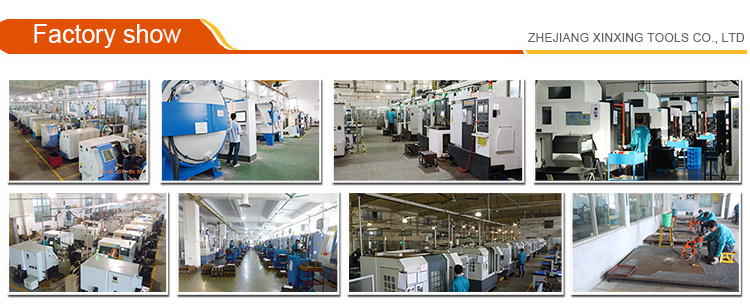

We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, and all the production processes are completed by our own factory. We also own top detecting instrument in the world, conducting a series of detections to raw materials, heat treatment, and cutting tools. For you, which means: The most reliable products supply and the fastest delivery time.
For 25 years, the company has won over one hundred honors successively.
In future, we will continue to devote to be an international leading cutting tools manufacturer, to provide you with more effective and excellent service, be a designated cutting tools supplier who you can rely on from your deep heart.
