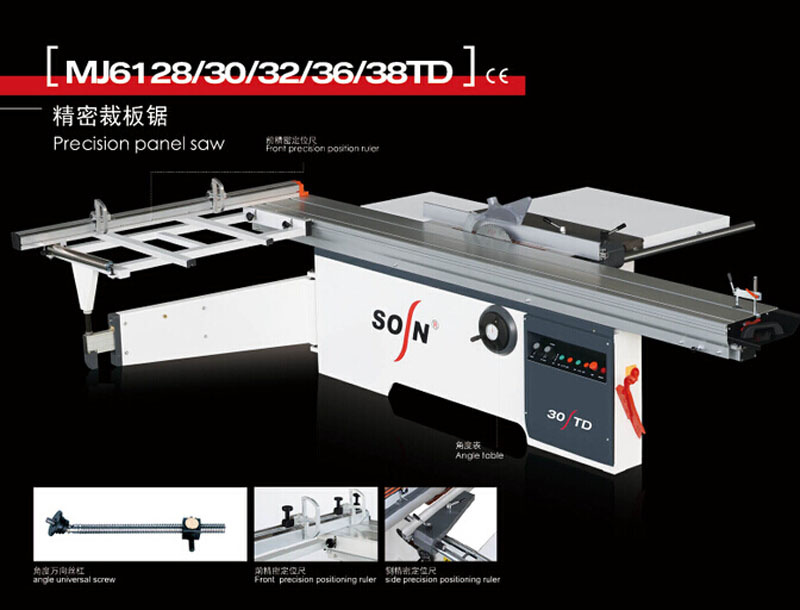

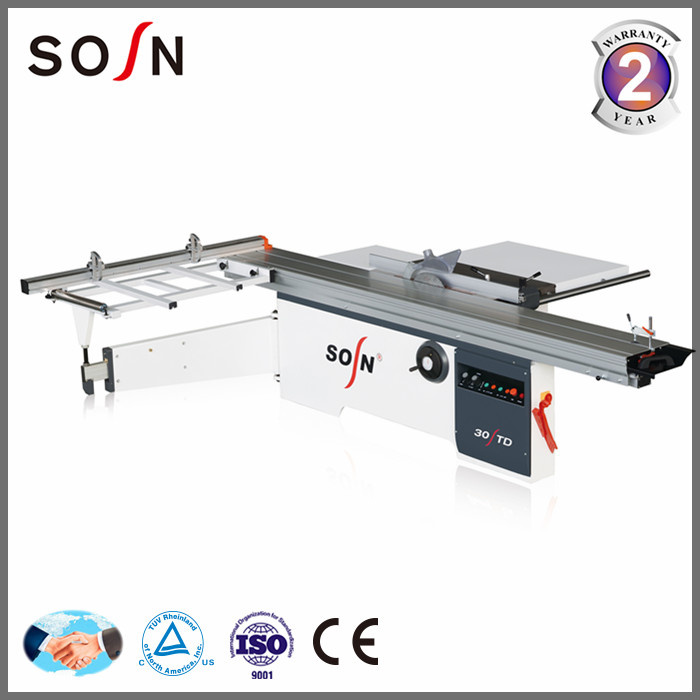

Tilting Woodworking Sliding Table Panel Saw for Sale
| Price: |
US $ 1000-3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
MJ6132TD |
| Sliding Table Structure: |
Manual Double and Thickness Sliding Table |
| Panel Length: |
3200mm |
| Saw Blade Diameter: |
250-400mm |
| Motor: |
5.5+1.1kw |
| Weight: |
850kg |
| Control Of Saw Blade Up & Down: |
Manual |
| Tilting Degree: |
45 Degree |
| Structure: |
New Design Inner Structure |
| Using: |
Cutting All Kinds of Boards |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description
Machine parameters| Model(Manual control) | MJ6132TD |
| Sliding table size(mm) | 3200*375 |
| Gross cut capacity(mm) | 3200 |
| Width between saw blade&rip fence(mm) | 1250 |
| Saw blade diameter(mm) | 300(250-400) |
| Height of cut (300mm) | 80 |
| main saw spindle Speed rpm | 4500/6000 |
| Main spindle diameter(mm) | 30 |
| Tilting saw blade | 0-45& 90° |
| Motor Power(kw) | 5.5 |
| Scoring motor(kw) | 1.1 |
| Scoring saw blade dia (mm) | 120 |
| scoring saw blade speed rpm | 8000 |
| Scoring saw diameter (mm) | 20 |
| Weight(kgs) | 850 |
Advantages of sosn panel saw Steel bar sliding table,with inner lock, more rigidity and strength,smooth movement.
|
For saw spindle, every axis has been tested for perfect balance.
|
Perfect inner structure, to make sure the machine work precision, easy-operation.
|
Static spray paint technology for machine, never paint off,
|
thick metal sheet,high stiffness of the frame prevents the emergence of vibration during operation in severe cutting conditions.
|
Fine micro adjustment,stable and precision.
|
Auto power off saw blade cover added the working safety
|
5.5kw +1.1kw big power motor, national standard, cooper wire, aluminum shells
|
European quality button
|
Aluminum extruded fence with large stopper
|
Big ruler with high quality
|
Big saw blade tilt degree is digital show, very convenient for operator, also with high precision.
|
Welcome to sosn

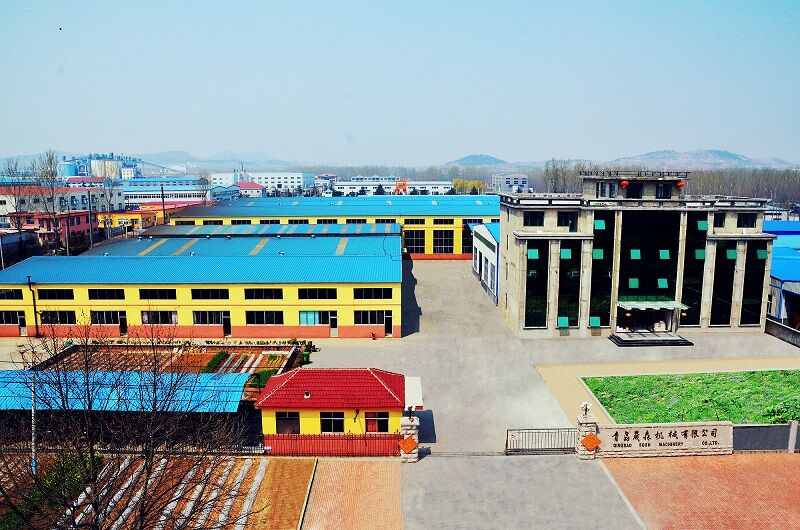

Factory historySOSN Woodworking Machine is focus on design and manufacture of professional
woodworking machines over 30 years. The Main products of SOSN Woodworking Machine are precision panel saw, edge banding machine,
drilling machine and CNC router. We have mare than 70 sales agents in China domestic market, and
21 sales agents in 12 foreign countries of oversea market. Our customers and agents are from
Southeast Asia, The Middle East, America, Europe, and so on.Professional design, Lean manufacturing, 24 hours on line service ensure we supply high quality
product to customer on time.In 2015, Holzer Company from Iran joined us to be a partner. With the powerful help of our Iran
technical Engineers, we design and manufacture new electronic panel saw and edge banding

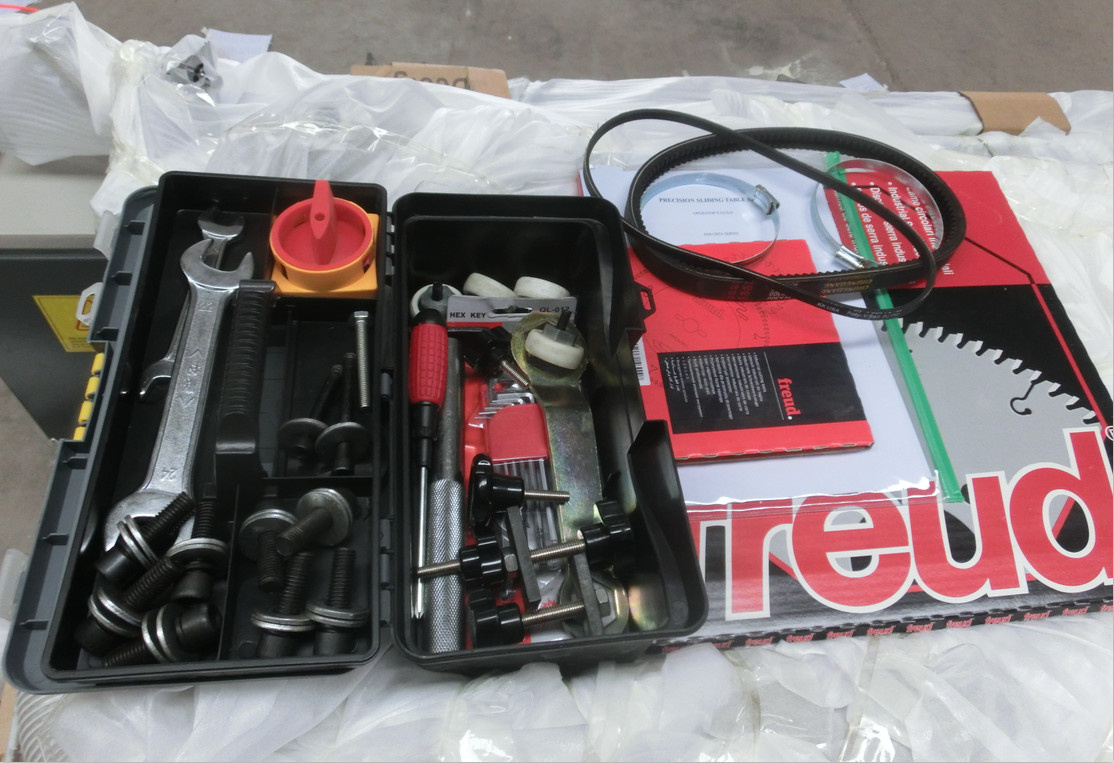

machine.SOSN Woodworking Machine are always researching and manufacturing professional and economical woodworking machines to our customers.Spare parts of panel saw

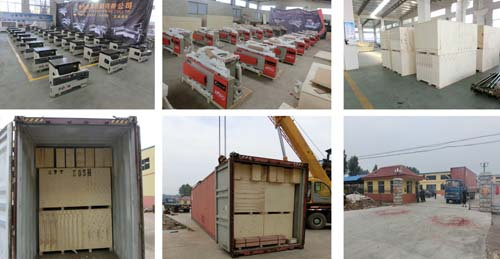

How machine packaging and loading
Features:1. Apply to processing all kinds of density boards, shaving boards, wood-based
panels, ABS panels, PVC panels, organic glass plates and solid wood and
others with wood structure and similar hardness. 2. Movable table guide track is plating chromium steel bars structure, exact and durable.3. With oxidation treatment, movable table surface is beautiful and hardwearing.4. Made of high-strength extruded aluminum alloy, movable table is high in strength and would not bend.machine available for using
Sosn advantages
1.professional manufacture with more than 20 years production experience in woodworking machines.
2.11,000 square meter workshop,first class skilled workers,near qingdao port,
3.5steps strict quality control,CE &ISO certificates
4.timely delivery with short production period
5.professional after-sale service available,email and calling is available in 24 hours.
6.more than 70 countries customers have enjoyed SOSN machines.Should you have any need of the machine , please feel free to contact with me.
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
