| Prod Model: |
Hex22*108 |
| Shank: |
228108 |
| Taper Angel A: |
4 / 6 / 7 / 11 / 12 |
| Brand Name: |
Bestlink |
| MOQ: |
50PCS |
| Layout: |
Horizontal |
| Control: |
Artificial |
| Precision: |
High Precision |
| Application: |
Stone Industry |
| Drilling Speed: |
No |
| Automation: |
No |
Product Description
Product Description
1) taper angle(degree): 4.46, 6, 7, 11, 12
2) shank size: Hex 22mm*108mm/25mm*159mm
3) length: 0.4m-10m high quality

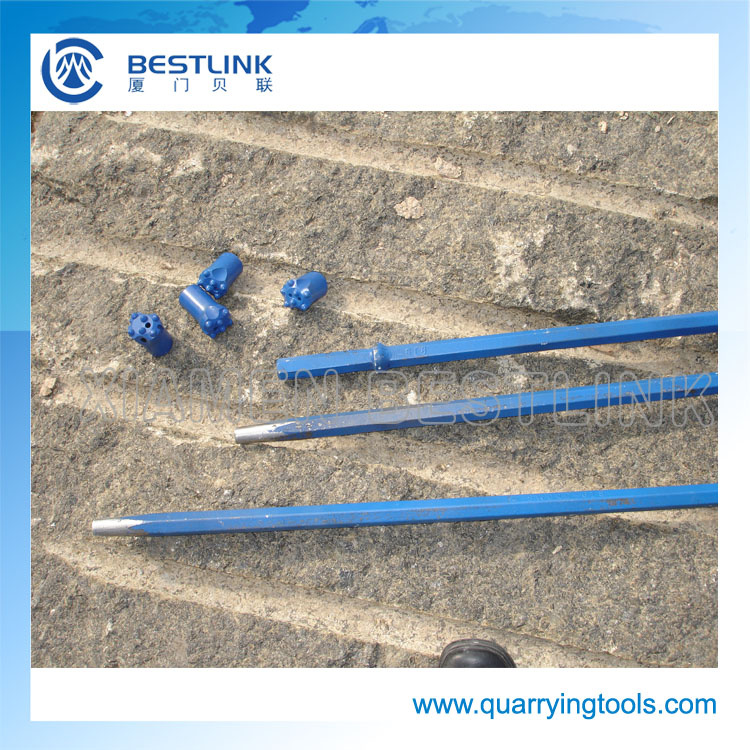

He tapered drill rod is used for rock drilling, blasting holes and other drilling works in the quarries, coal mines, traffic and other constructions.
Tapered steel rod work with taper drill bits which are usually hexagonal. When it comes to the small-hole drillingtools equipped with pneumatic & hydraulic rock drills, Taper drill equipments is prevailingly used for rock drilling, blasting holes and other drillingworks especially in the mining application and dimensional stone industry.
Taper steel rod are the same as integral drill rods which havedifferent length to fit different drilling applications in mining, quarrying, road building etc. Taper drill rods need tapered drill bits to work, such as tapered chisel bits, tapered cross bits and tapered button bits.
Specifications
| 22mm 7 / 8 " hex rod. 108mm 4 1 / 4 " shank. |
| 4°46' taper |
| Length (mm) | Part No. | Weight (kg) |
| 800 | 578-0108,11 | 2.9 |
| 1600 | 578-0116,11 | 5.4 |
| 2000 | 578-0120,11 | 6.6 |
| 2200 | 578-0122,11 | 7.1 |
| 2400 | 578-0124,11 | 7.8 |
| 3200 | 578-0132,11 | 10.2 |
| 3500 | 578-0135,11 | 11.1 |
| 4000 | 578-0140,11 | 12.7 |
| | | |
| | | |
| 7° taper |
| Length (mm) | Part No. | Weight (kg) |
| 400 | 573-0104,11 | 1.7 |
| 800 | 573-0108,11 | 2.9 |
| 1830 | 573-0118,11 | 6 |
| 2000 | 573-0120,11 | 6.5 |
| 2435 | 573-0124,11 | 7.8 |
| 3050 | 573-0131,11 | 9.9 |
| 3200 | 573-0132,11 | 10.1 |
| 4000 | 573-0140,11 | 12.7 |
| | | |
| | | |
| 11° taper |
| Length (mm) | Part No. | Weight (kg) |
| 610 | 579-0106,11 | 2.4 |
| 1220 | 579-0112,11 | 4.2 |
| 1525 | 579-0115,11 | 5 |
| 1830 | 579-0118,11 | 6.1 |
| 2000 | 579-0120,11 | 6.6 |
| 2435 | 579-0124,11 | 7.9 |
| 2600 | 579-0126,11 | 8.4 |
| 3200 | 579-0132,11 | 10.3 |
| 3655 | 579-0137,11 | 11.7 |
| 4000 | 579-0140,11 | 12.8 |
| 4800 | 579-0148,11 | 15.1 |
| 5600 | 579-0156,11 | 17.5 |
| 6400 | 579-0164,11 | 20 |
| 7200 | 579-0172,11 | 22.4 |
| 8000 | 579-0180,11 | 24.9 |
| | | |
| | | |
| 12° taper |
| Length (mm) | Part No. | Weight (kg) |
| 1220 | 577-0106,11 | 2.3 |
| 1525 | 577-0112,11 | 4.2 |
| 1830 | 577-0115,11 | 5.1 |
| 2000 | 577-0118,11 | 6.1 |
| 2435 | 577-0120,11 | 6.6 |
| 3050 | 577-0124,11 | 7.9 |
| 3200 | 577-0131,11 | 9.8 |
| 3655 | 577-0132,11 | 10.2 |
| 3965 | 577-0137,11 | 11.7 |
| 4800 | 577-0140,11 | 12.8 |
| 5600 | 577-0148,11 | 15.2 |
| 6400 | 577-0156,11 | 18.4 |
| 7200 | 577-0164,11 | 20 |
| 8000 | 577-0172,11 | 22 |
| | 577-0180,11 | 24.8
|
