| Prod Model: |
SOV-FDB Series |
| Product Name: |
Torque Multiplier Wheel Nut Wrench |
| Max. Torque: |
1500-20000 Nm |
| Transmission Ratio: |
4.8-96.8 |
| Input Square: |
12.7 mm |
| Output Square: |
25-60 mm |
| Bolt Size: |
M20-30 to M72-80 |
| Nut Size: |
S30-46 to S105-135 |
| Warranty: |
One Year |
| Delivery Time: |
1-15 Days After Receive Payment |
| Color: |
Customize |
| Type: |
Torque Wrench |
| Standard: |
- |
| Feature: |
Ordinary |
| Material: |
Steel |
| Brand: |
Sov |
| Surface Treatment: |
- |
| Handle Color: |
- |
Product Description
Torque Multiplier Wheel Nut WrenchFeatures:
- Mechanical torque multiplier could be widely used with many other power tools and applicable for the anti-explosion environment.
- It has high precision and reduction ratio as well as the planetary gear structure and anti-reverse structure.
- The high-tech alloy material planetary gear is used for it, with compact structure, high strength, well abrasive resistance and light weight.
- All the machine parts are finished through CNC machining center, which can ensure the consistency of the products.
- The feature of high quality and maintenance-free saves the maintenance time and cost.
Parameter | Model | SOV-FDB-15 | SOV-FDB-20 | SOV-FDB-35 | SOV-FDB-55 | SOV-FDB-75 | SOV-FDB-100 | SOV-FDB-150 | SOV-FDB-200 |
| Max. Torque(Nm) | 1500 | 2000 | 3500 | 5500 | 7500 | 10000 | 15000 | 20000 |
| Transmission ratio | 4.8 | 14 | 17 | 19 | 22 | 61 | 74.8 | 96.8 |
| Input Square(mm) | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 |
| Output Square(mm) | 25 | 25 | 30 | 35 | 40 | 50 | 55 | 60 |
| Bolt Size(mm) | M20-30 | M22-36 | M30-45 | M36-52 | M42-60 | M52-68 | M60-76 | M72-80 |
| Nut Size(mm) | S30-46 | S32-55 | S46-70 | S55-80 | S65-90 | S80-105 | S90-115 | S105-135 |

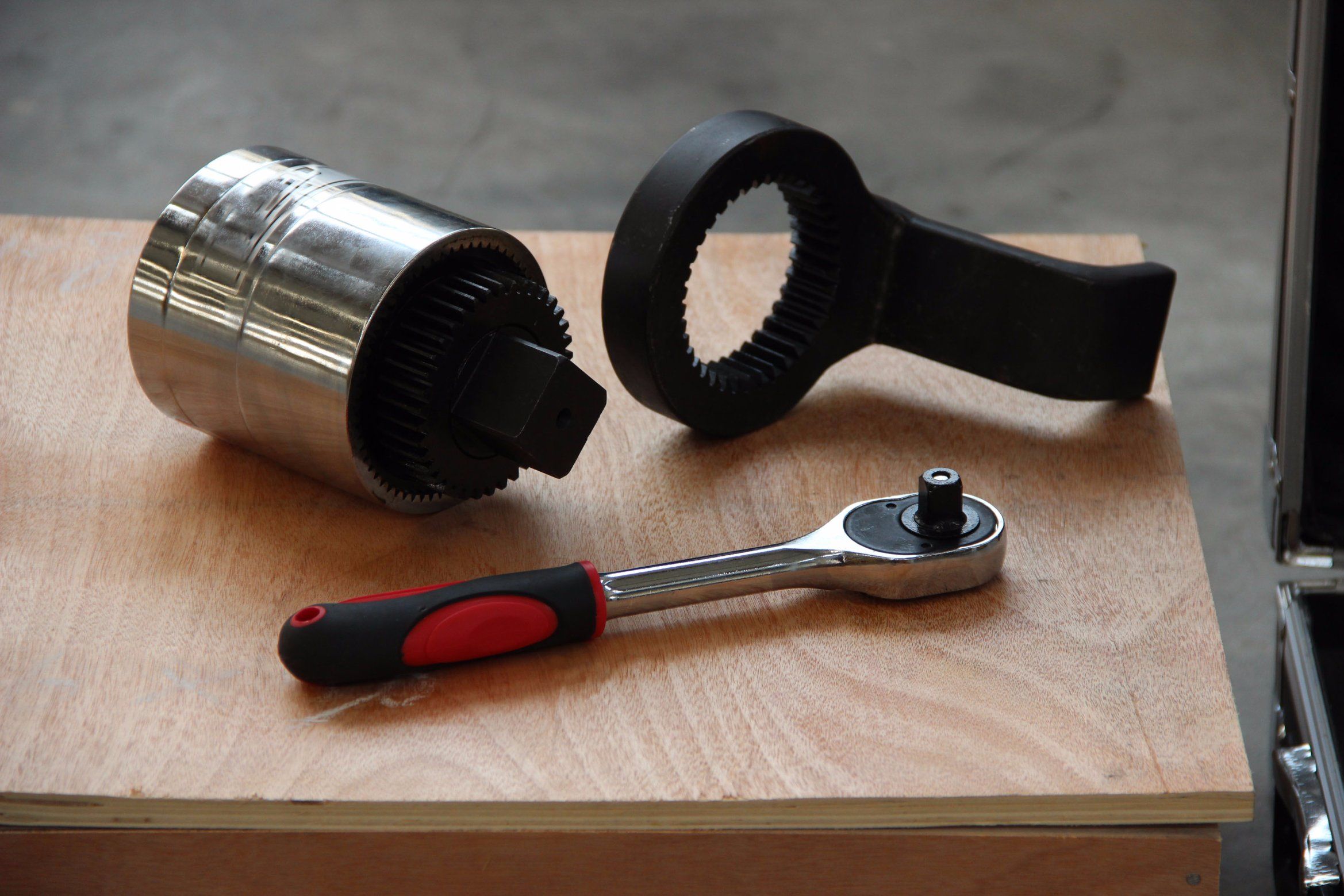

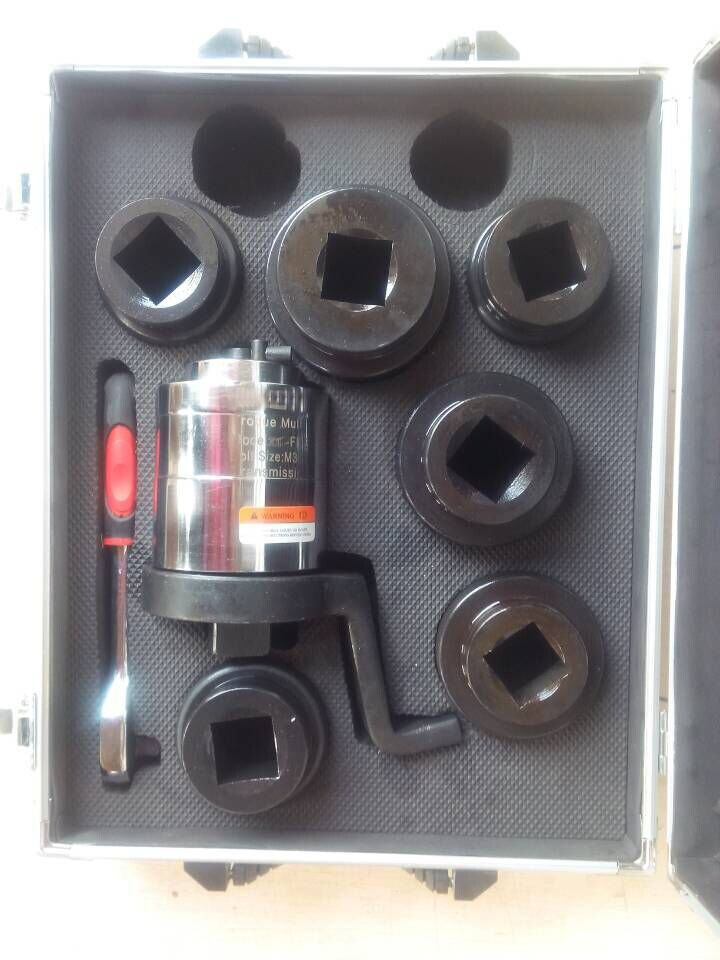

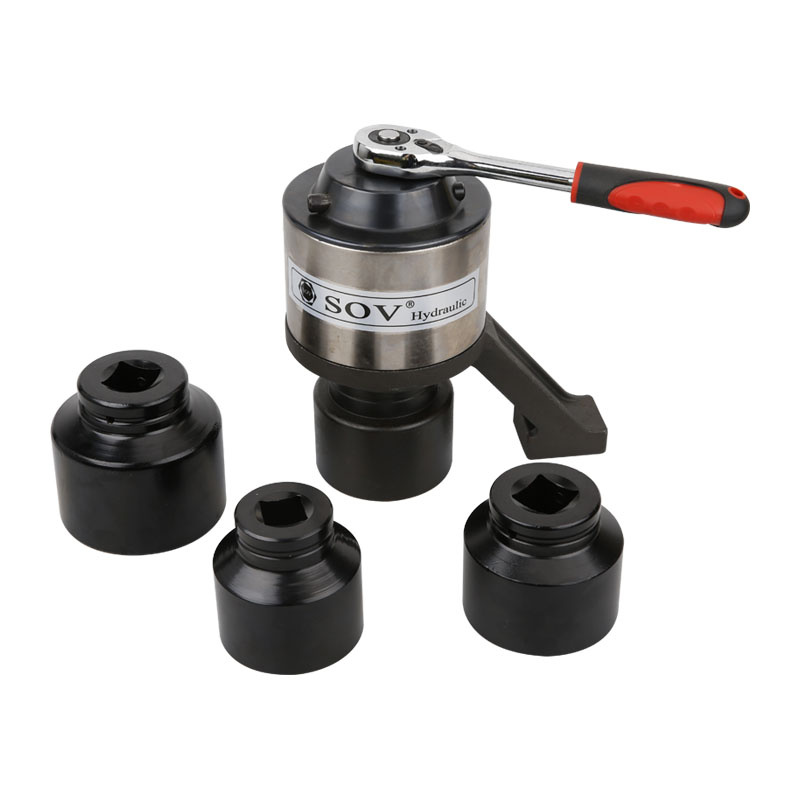

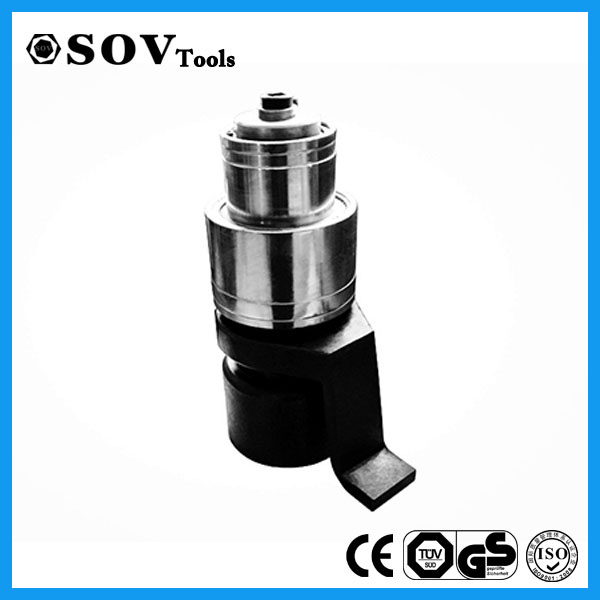

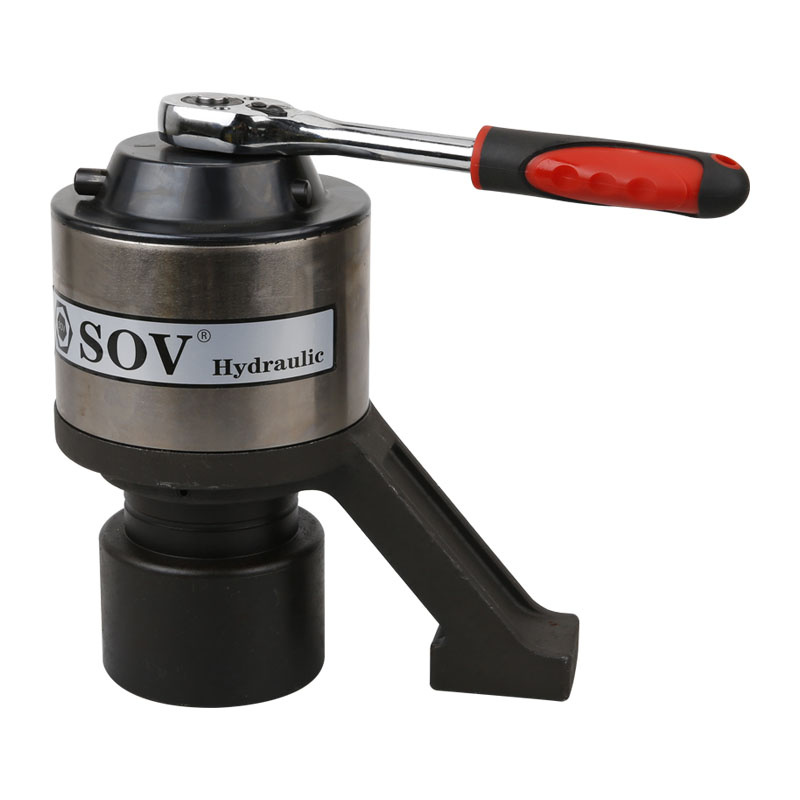

Photos

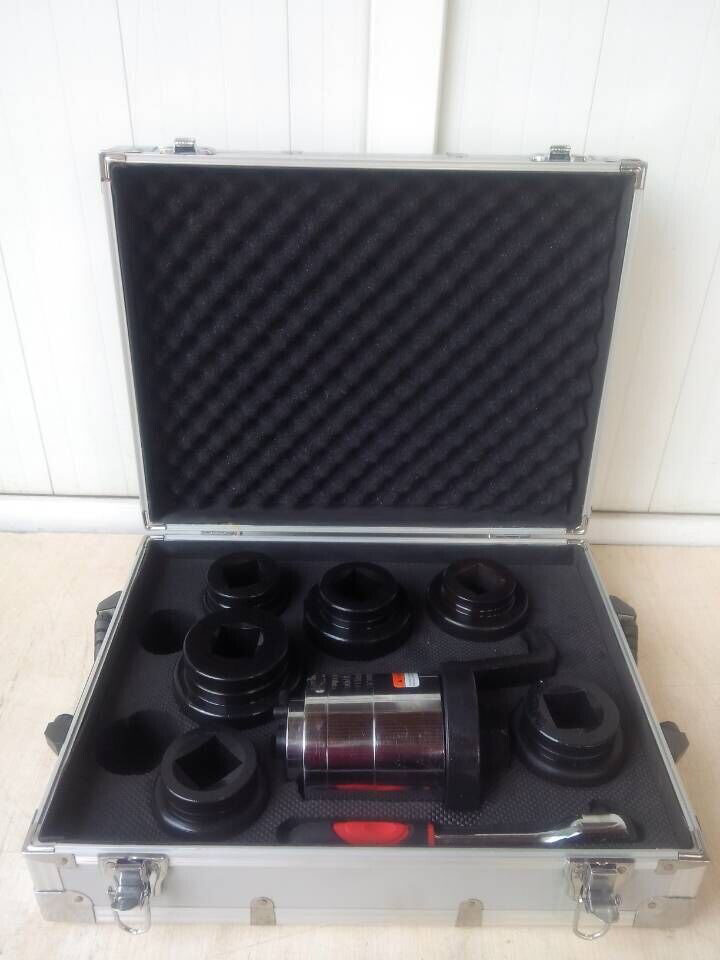

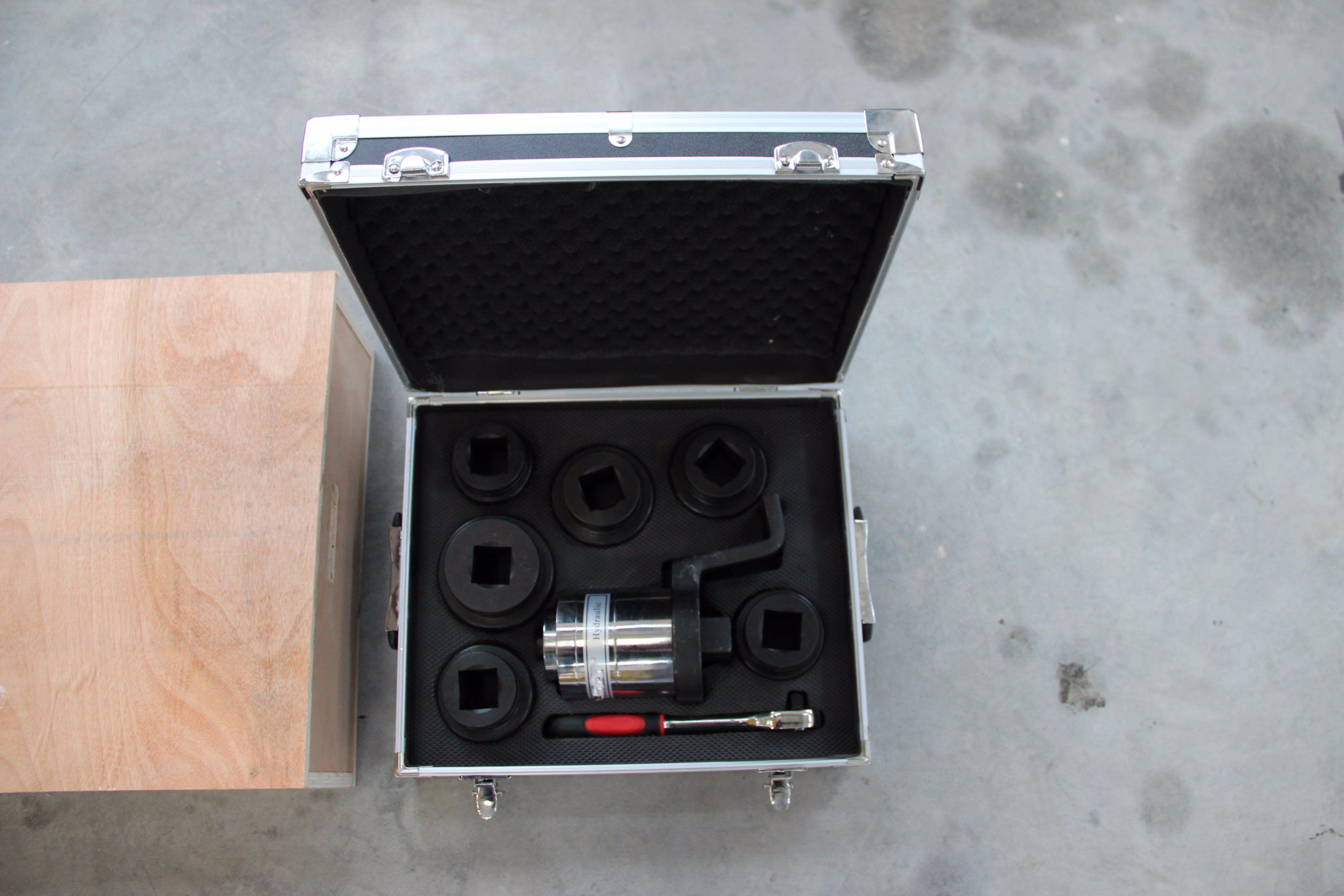

Packing: All products will be packed with wooden case of outer packing;
Shipping:
1. Small quantity: by international exress, such as DHL, TNT, FEDEX, UPS, etc. depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: by sea transportation. Goods will arrive in 10~45 days, according to the diatance.
