| Prod Model: |
NT-TCMPT-2X2 |
| Other Standard: |
SMS, DIN, Idf, Rjt, BS, ISO, Bpe etc |
| Warranty: |
1 Year |
| Process: |
Pipe-Raw Material-Polish-Check-Packing |
| Treatment: |
Mirror Polish/Brushed/Electric Polish |
| Material: |
Stainless Steel |
| Connection: |
Male |
| Surface Treatment: |
CNC Machine |
Product Description
NPT Adapter | Tri Clamp 2 in. x MNPT 2 in.
Stainless Steel Sanitary Fittings
1. ss304 stainless steel
2. 3A standard
3. NPT male or female threads in 1/4"National Pipe Taper (NPT) are a standardized fitting that is commonly used for joining pipe. Due to the tapered threads (wider diameter at the base of the threads, similar to a trapezoid) the male fitting will tighten the further it is threaded into the female. NPT follows the technical standards provided by the American National Standard Pipe Thread standards, often called national pipe thread, which is often where the confusions with NPT arises, as NPT is specifically an acronym that referes to tapered pipe.
National Pipe Straight (NPS) are straight thread that is sized to be compatible with common water heater elements and should be compatible with most NPS straight threads.
Determining NPT/NPS Size:
Sizing NPT/NPS is based on the nominal pipe diameter, and not the ouside diameter (OD) of the threads. For example: A 1/2" NPT male has an outside thread diameter of approximately 3/4", but as stated the correct NPT size is 1/2", including the counterpart female.
Notice: While NPT and NPS threads may be joined together, their threads may not form a proper seal, be loose fitting, or otherwise not an optimal connection.
We manufacture T304 or T316L Sanitary Polish Triclamp Fittings found primarily in the Bakery, Beverage, Cosmetic, Dairy, Food or Pharmaceutical Industries. Our Sanitary Butt Weld Fittings can meet or exceed 3A/DIN/BPE etc standards with an ID polish of 180 Grit or 25 Ra on the Inside of the Tube and a 150 Grit or 32 Ra on the Outside of the tube. NEW TEK supplies each Sanitary Butt Weld product with the size and alloy and a heat number for full traceability for either alloy. Our Sanitary Butt Weld Fittings are made to close tolerances to permit easy and fast installation of a corrosion resistant, crevice free, fully sanitary process line. As a suggestion, you may wish to weld using the tungsten gas method for true fusion of wall to minimize pitting and thinning. Material test reports can be provided. Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Sanitary fittings are used in the food, beverage, biotech, pharmaceutical, and other sanitary process industries to transport fluids through pipe lines and are available in a range of materials, finishes and shapes. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).
We ship products all over the world. | Availably standard | SMS,DIN,3A,IDF,RJT, BS, ISO |
| Material Quality | SS304,SS304L,SS316,SS316L |
| Specification | 1/2"-12" |
| Available Connection | Welding ends, triclamp ends, union ends, male ends etc. |
| Available Polishing | 180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished |
| Available Thickness | 1.5MM,1.65MM,2MM,2.5MM,3MM,4MMetc. |
| Pressure range | -bar~10bar |
| Temperature Range | -20degree Celsius~135degree Celsius |
More products we can provide:
1 .Sanitary valve
Sanitary Butterfly Valves
Sanitary Check Valves
Sanitary Ball Valvess
Sanitary Reversal Valve
Sanitary Diaphragm Valves
Sanitary Sample Valves
Sanitary Safety Valves
Sanitary Control Valves
Sanitary Relief Pressure Valves
2. Sanitary Pipe Fittings
Sanitary Elbow
Sanitary TeeSanitary Reducer
Sanitary Cross
Sanitary Triclamp Ferrule
Sanitary Cap
Sanitary Pipe Hanger
Sanitary Tank Cleaning Ball
Sanitary Hose Joint
Sanitary Unions
Sanitary Sight Glass
Sanitary Strainer
3. Sanitary Manways
Sanitary Round Manway without Pressure
Sanitary Round Manway with Pressure
Sanitary Square Manway
Sanitary Oval Manway
4. Sanitary Pumps
Sanitary Centrifugal Pump
Sanitary Lobe Pump
Sanitary Self Priming Pump
5.Sanitary Tanks
Storage Tank
Fermentation Tank
Mixing Tank
Warm-keeping Tank
6.Sanitary Tube
Seamless Tube
Weldless Tube
7.Sanitary Gasket
Silicone/EPDM Gasket for Triclamp
Silicone/EPDM Gasket for Union
Silicone/EPDM Gasket for Butterfly Valve
Silicone/EPDM Gasket for Manhole Cover
Founded in 2002, New Tek Industrial Co., Ltd, as a global valves and Fittings manufacturer and stainless steel tanks supplier, has grown to become one of the leading stainless steel products manufacturers for high precision stainless steel sanitary valves, pumps and pipe fittings. Our products including valves, pipe fittings, tank accessories and stainless steel tanks both in sanitary and industrial field. The products are widely applied in dairy, beer, food, pharmaceutical, beverage, cosmetics and chemical industries.
New Tek introduce actively domestic and international advanced production equipment and professional manufacturing process, the series products are made from stainless steel AISI304, AISI316L, strictly according to DIN, 3A, SMS, ISO, IDF, RJT, DS, BS, BPE industrial standard request, and keep strict inspection and control during production, that make us develop stable and continuously.

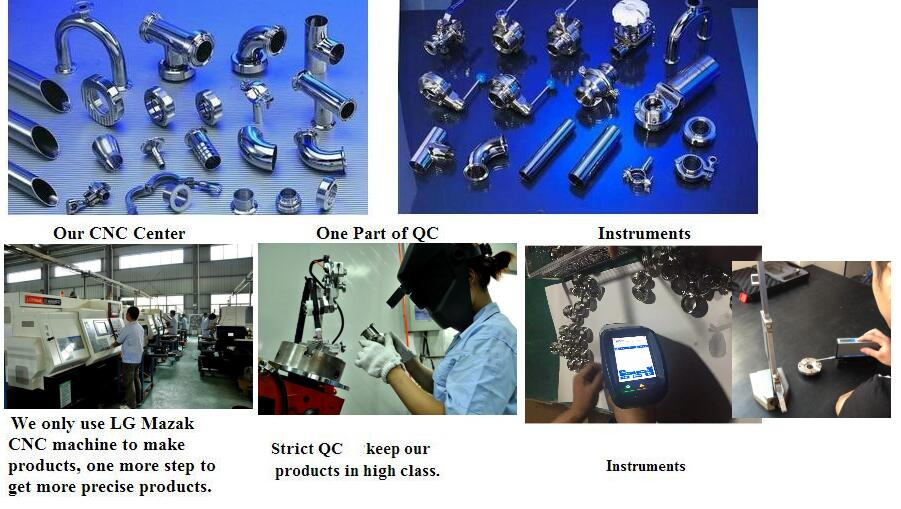

New Tek has our own factory, complete CNC machines workshop, QC team, welding and polishing workshop, gaskets workshop, package workshop, 3 floors warehouse. The real one stop service, to save more money for you.
