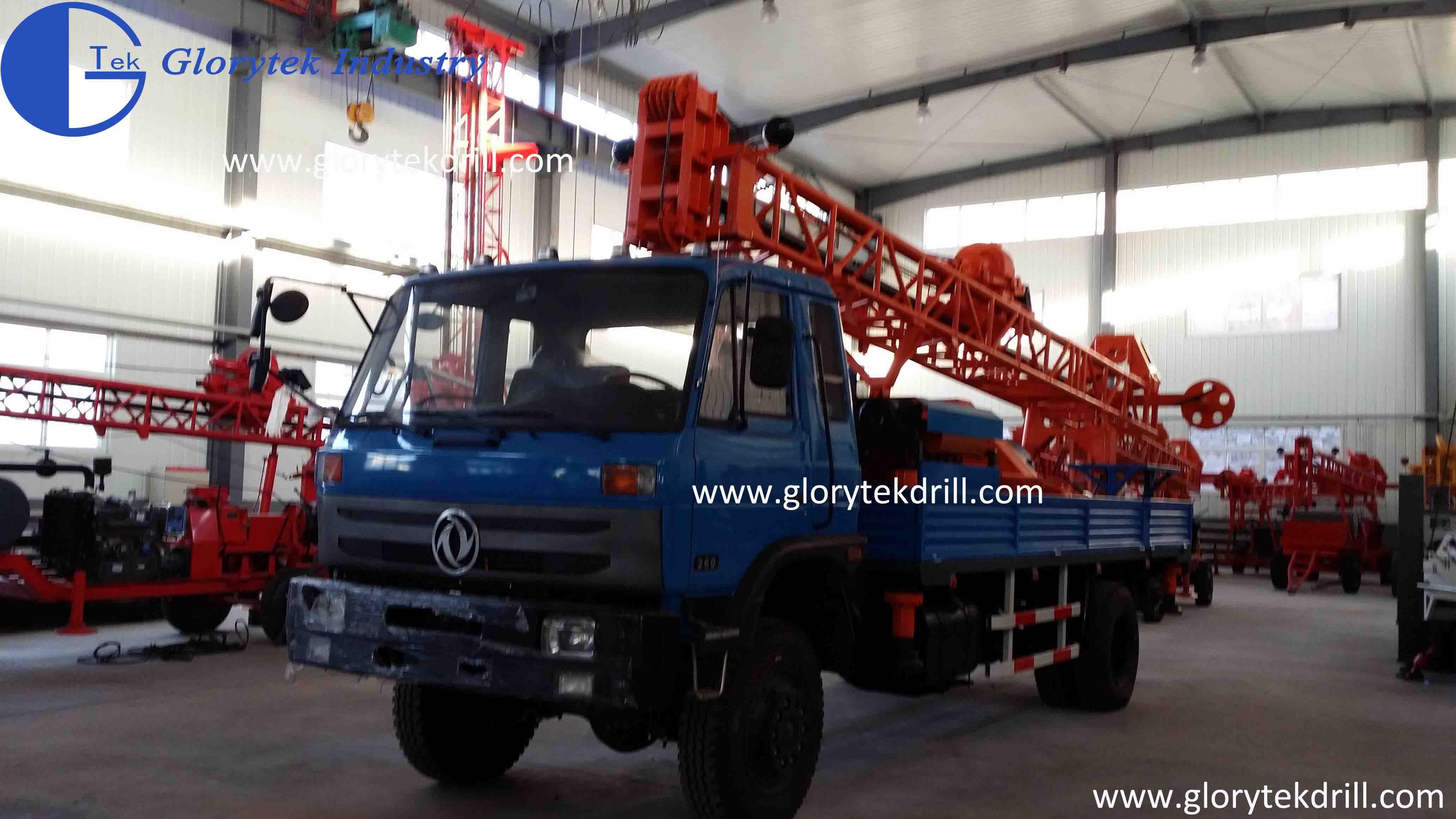

Truck, Crawler, Trailer Artesian Pneumatic Rock Drill

Prod Model:	GL-IIA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Depth Of Hole:	11m or 27.5m
Rock Rigidity:	More Than F=6-18
Rotary Speed:	24/33/49r/Min
Swing Torque:	2430/2340/2080n.M
Push Pressure(End Of Hole):	4100-19000n
Once Feed Distance:	9m
Lift Up Speed:	16m/Min
Capacity Of Lift Up:	25000n
Drill Rod Diameter:	133mm
Traveling Speed:	1km/H
Usage:	Water Well
Power Type:	Diesel
Condition:	New
Type:	Drilling Machine

Product Description

Name: High Pressure Drill Rig
Drive type: Diesel drive or Electrical drive, subject to the requirement of clients.
Feature: Pneumatic rock drilling, Multi-angle drilling, Powerful grade ability, Self-leveling, Flexible,
Fast rotary speed, drill rod connected automatically
Application: Relatively fixed working place and level ground in the conditions of electric power supplying
Available. Be suitablefor the medium and large mining areas in the productivities of500, 000m3annually,
Matching device: Diesel generator, lengthened drilling frame, Dry type deduster.

Diameter	152-230mm	Ground pressure	0.05Mpa
Depth of hole	11mor27.5m	Grade ability	15
Drilling angle	75  90	Air pressure	1.05-2.5Mpa
Rock rigidity	more than f=6-18	Air Consumption	12-26 m3/ min
Rotary speed	24/33/49r/min	Voltage	380V
Swing torque	2430/2340/2080N.m	Capacity	70kw
Push pressure(end of hole)	4100-19000N	Max power under drilling	24.5kw
Once feed distance	9m	Max power under traveling	22kw
Lift up speed	16m /min	Drilling rate	2-3 times faster than the speed of low pressure drill rig, capable to drill the hole at the speed of 16-26m/h with the rock rigidity f=6-18
Capacity of lift up	25000N	Working status(dimension)	6590*3125*12900mm
Drill rod diameter	133mm	Transportation(dimension)	12000*3125*3865mm
Drill rod length	9m	Total weight	16.5t
Traveling speed	1km/h	Dust collection	dry or wet

Product Description
1. Feature
1. Drill head style with large torque and lifting force;
2. Multiple purposes and multiple functions drilling;
3. Large drill head inside diameter available for many robs;
4. It can drill with mud drilling and air drilling method;
5. Special designed rod structure makes it easy to connect and disconnect;
6. Easy operation and maintenance, high reliability and long service life;
7. Modular design appropriate rods and pumps provided for clients.

2.  Application
1. Drilling wells for urban and rural life.
2. Drilling wells for agricultural irrigation and industries.
3. Drilling for geotechnical survey.
4. Drilling geothermal pump wells.
This s one best selling drilling machine in the market, very well received by users for the good quality but low price

1. Compact structure with small truck, very easy to move and transport.

2. Multi functional drilling rig, can be used for water well drill, coring drill, rock sampling, geological investigation&exploration, geothermal well drill, etc.

3. Strong drilling ability, can drill through any materials, including hard rock, rock, cobble, gravel, clay, soil, etc

4. Hydraulic system, convenient to operate.

5. Diesel engine for power, can be used in any area, especially where is not available for electricity.

Production ability

We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client's recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.




Customers visit our factory

With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients' visits and our clients' on-the-site operation.
