Tungsten Carbide Drillinig Tools Drills
| Price: |
US $ 3.75/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
All Sizes |
| Coating Options: |
Altin, Tialn, Tisin, Naco, Diamond |
Product Description

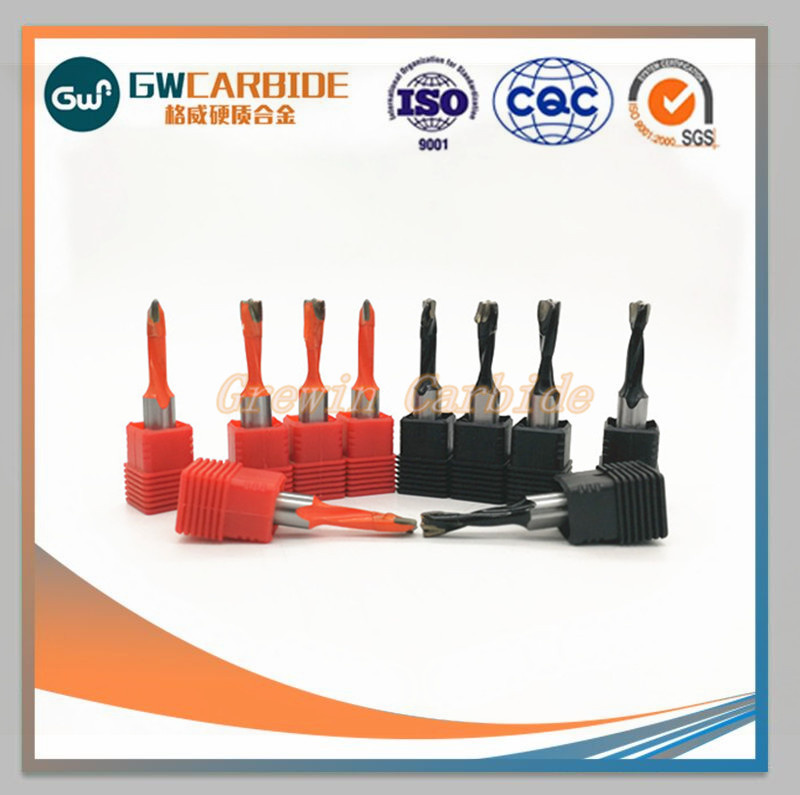

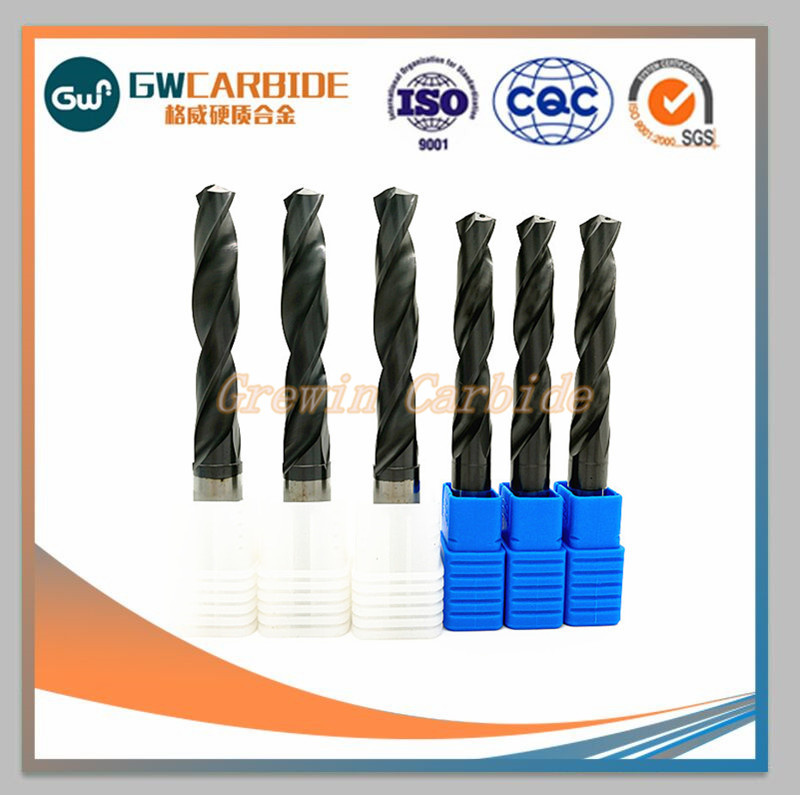

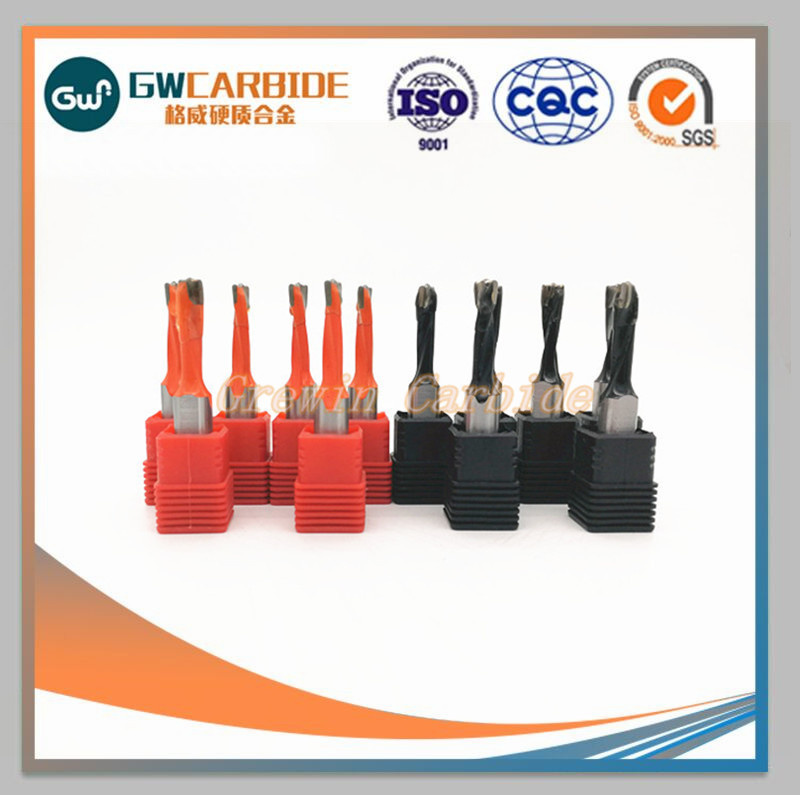

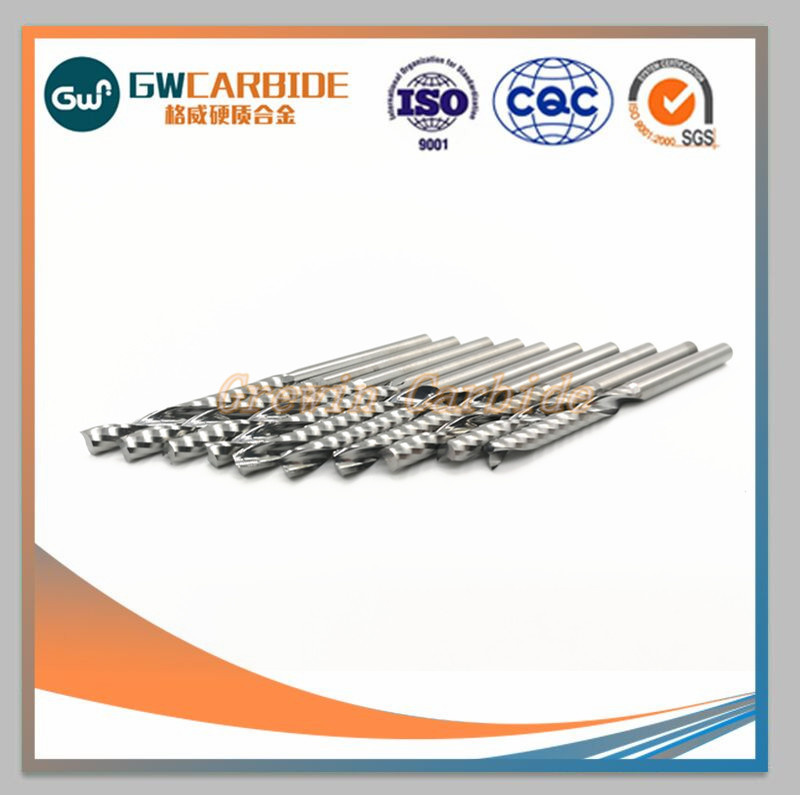

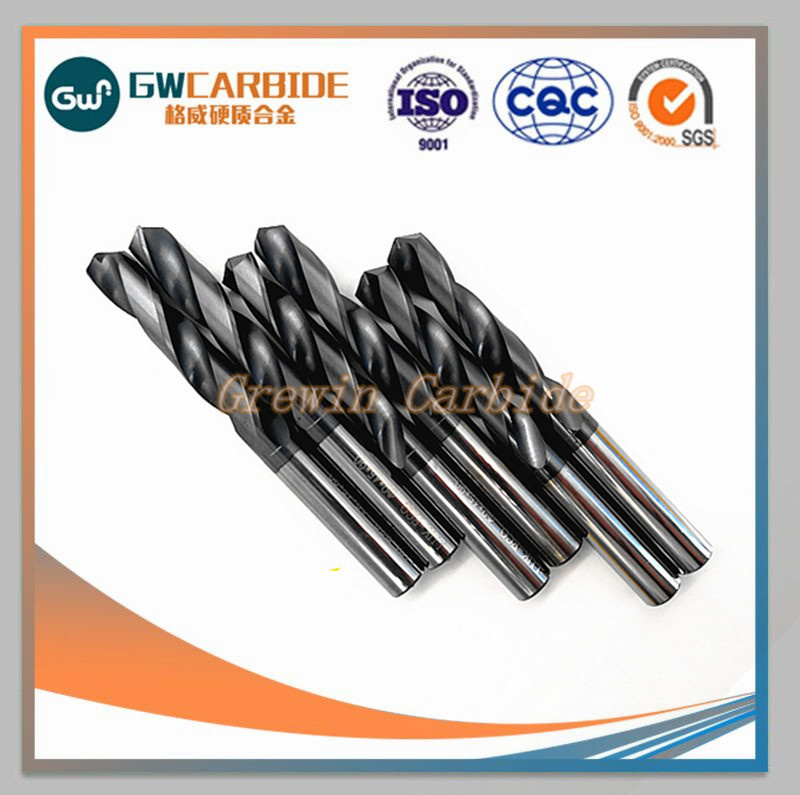

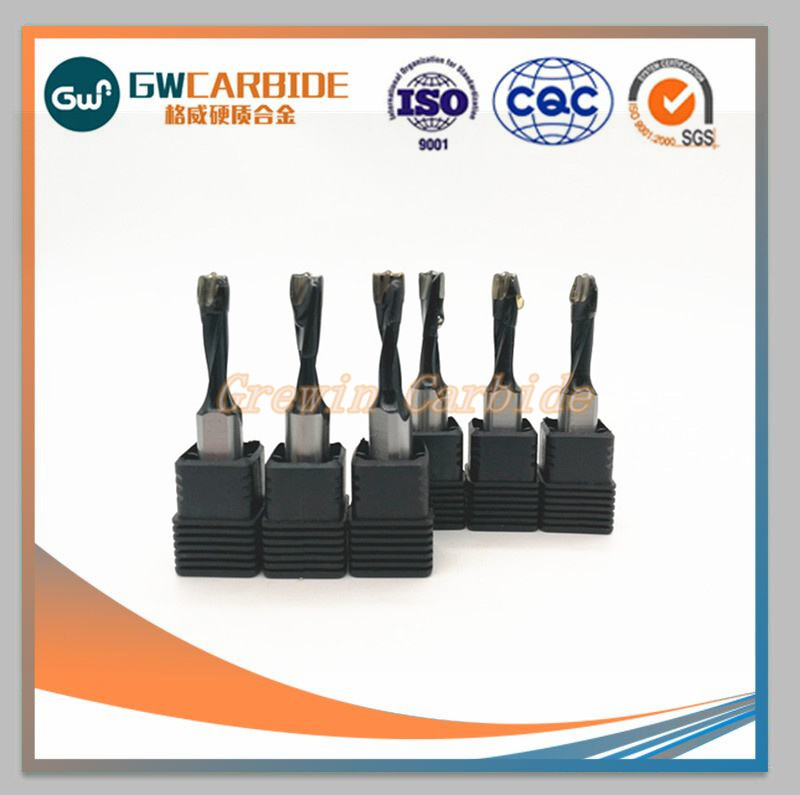

Tungsten Carbide Drillinig Tools Drills
Our carbide drills are made from good quality of tungsten carbide.
With the design of the wave cutting edge to achieve the excusive sharpness and Strength.
And also promotes the discharge of the cutting chip.
The top angle is 140 degree, which can reduce the force at the initial stage of drilling, and provide better self-determination ability to improve the machining quality of the hole.
The Nano structure of the TiAin coating improves the thermal hardness and prevents the debris.
We have all kinds of drilling tools, such as straight groove drill, reamer drill, center drill, fixed point drill and so on.
Raw micro grain material, high hardness and T.R.S
a, Co: 10%,Wc:90%
b, TRS: >3600 N/mm2
c, HRA: 91.8-92.4, HRC:45-50/55-60/65/68
d, Grain size: 0.4-0.6μm
e, Helix angle: 30°-45 °
Diameter of cutting edge: 0.2-0.9mm; 1-20mm
Diameter of rods: 6-25mm
Total Length: 62mm-200mm
Cutting Form: Flat, Square, Ball nose, Ball, Corner Radius, Taper Flute, etc.
Application
Suitable for cut Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Stainless steel, Plastic, Acrylics, etc.
Coating
TiSiN, TiAlN, AlTiN, TiCN or Blue Nano | Item | AlTiN | TiAiN | TiSiN | nAcO |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp( ° ) | 900 | 800 | 1000 | 1200 |
| Friction | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
Call us or email us for catalogue with detail sizes sheet.
