Tungsten Carbide Spiral Reamer Tools
| Price: |
US $ 3.15-3.25/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
All sizes |
| Handle Type: |
Straight Type |
| Precision: |
H7 |
| Model No: |
All Sizes |
| Features: |
Good Wear Resistance,High Precision |
| OEM/ODM: |
Accepted |
| Overal Length: |
35-160mm |
| Sample: |
Free |
| Usage Mode: |
Machine or Hand |
| Alveolus Dentalis: |
Spiral or Straight |
| Delivery Time: |
15-25days |
| Process Usage: |
Metal-Forming CNC Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
High-End CNC Machine Tools |
| Application: |
Steel,Wood,Aluminum etc |
| Certification: |
SGS |
Product Description
1.Original raw micro grain material, high hardness and T.R.S.Co: 10%,Wc:90%
TRS: >3600 N/mm2
HRA: 91.8-92.4, HRC:45/55/60/65
Grain size: 0.4-0.6μm
Helix angle: 30°-45 °
Diameter of cutting edge: 0.2-0.9mm; 1-20mm
Diameter of rods: 4-20mm
Length: 50-100mm
Cutting Form: Square,Ball nose, Corner Radius, Taper Flute, etc.
Flutes No.: 1-6 2.Other productsdrills,reamer,tool holders, ER collet, boring cutters,carbide inserts,cutter heads,etc. 3.Application and usageSuitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic,etc. 4. Super CoatingTiSiN TiAlN AlTiN TiCN or Blue Nano Coating.| Item | AlTiN | TiAiN | TiSiN | nAcO |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp( ° ) | 900 | 800 | 1000 | 1200 |
| Friction | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
5.Advantages(1). Solid carbide reamers, we can make different types of machine reamers, usually 2-8 flutes, the delivery time for non-standard customized reamers is just 7-10 days.
(2). Carbide drill reamers are made from different grade of material:
HRC45 machine reamer, YG25material, high precision, with 2-8 flutes. Suit for cast iron, carbon steel
HRC55 machine reamer, YL10.2, high precision, with 2-8 flutes, suit for carbon steel, alloy steel.
HRC60 machine reamers, Kennametal2210, high precision, with 2-8 flutes, suit for copper alloy, stainless steel.
HRC65 machine reamer, Germany AF, high precision, with 2-8 flutes, suit for hard metal.
(Notes: We can supply different types of machine reamers, also we can make the boring reamers according your drawing and samples)6.Depth of cutThis is how deep the tool is under the surface of the material being cut (not shown on the diagram). This will be the height of the chip produced. Typically, the depth of cut will be less than or equal to the diameter of the cutting tool.7.Grade Recommendation | Grade | Hardness HRA(hv) | Giain size |
T.R.S(M Pa) | Performances &applications recommended |
| YG25 | 90-91 | 0.7um | 2500-2800 | Good Wear resistance,shuit for processing hard wood ,cost iron ,copper ,A3 steel |
| YL10.2 | 91-91.5 | 0.6um | >3800 | Suit for processing Die Steel,aluminum alloy,stainless steel,cat iron ,copper |
| Kennametal 2210 | 91.5 | 0.5um | >4300 | Suit for processing Hardneed steel ,hardneed stainless steel ,heat treated material |
| Germany AF K34 | 94 | 0.4um | 5000-6000 | good grain size ,Fine carbide,high wear resistance,high bending strength,suit for fishing processing |

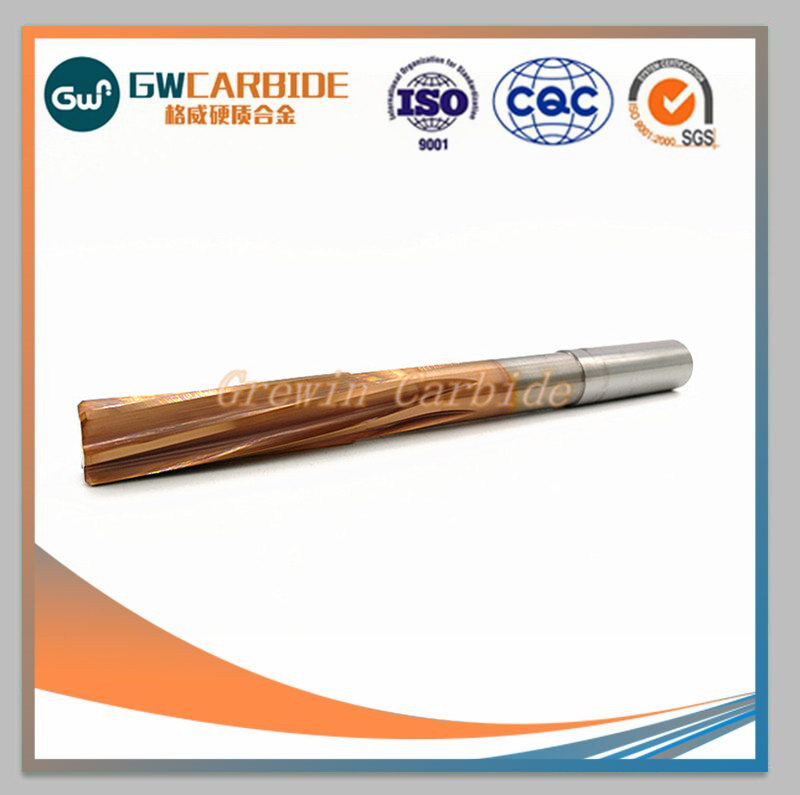

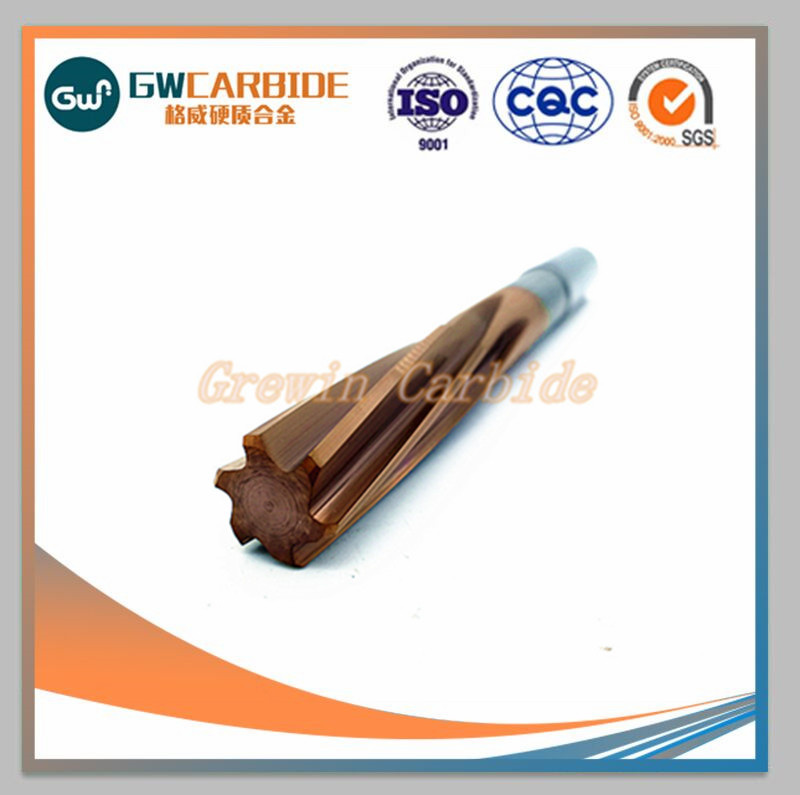

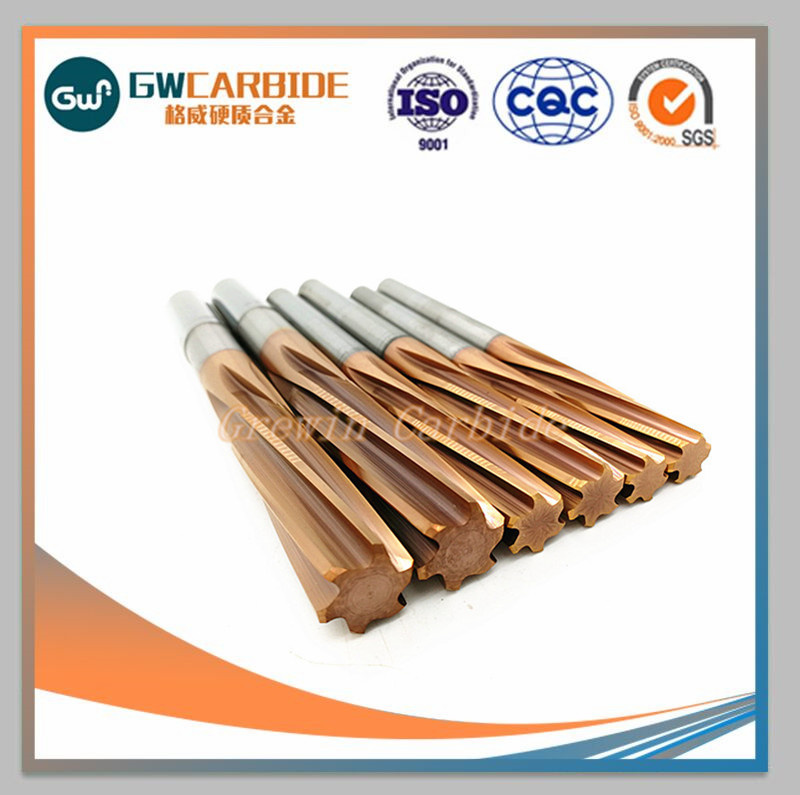

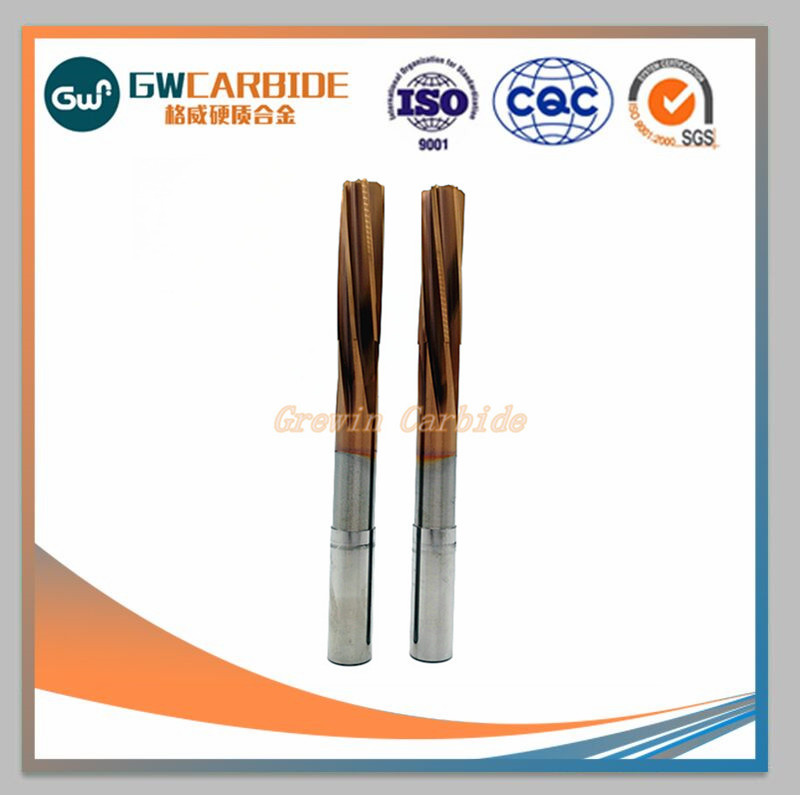

8.Product Pictures
9.Contact Alice
Welcome your early contact and inquiry here!
What we do is not a deal, but create mutual happy cooperation!
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " Do the best to customer". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
