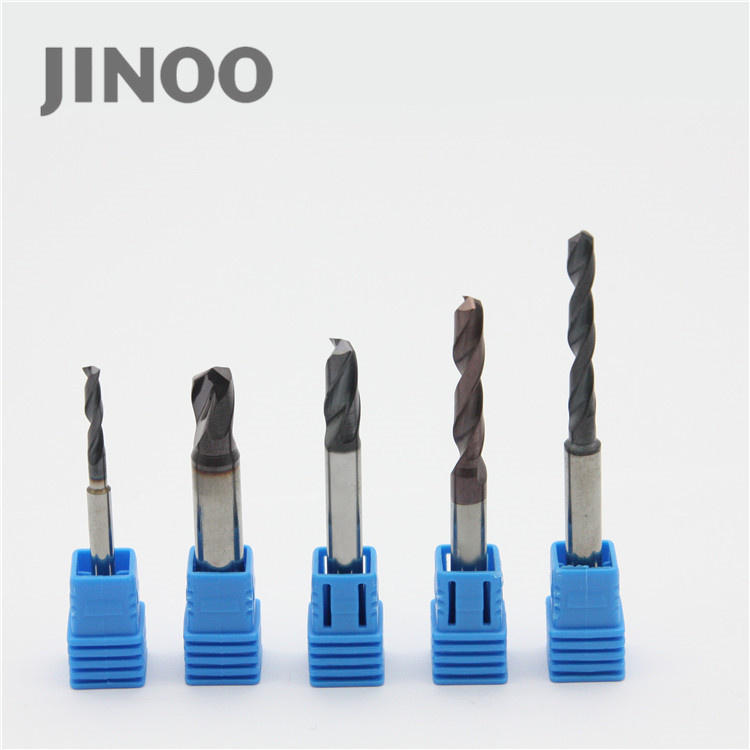

Tungsten Carbide Solid Carbide Drill Bit for Steel

Prod Model:	D1103
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Production Name:	Tungsten Carbide Solid Carbide Drill Bit for Steel
Process Usage:	Metal-Drilling CNC Machine Tools
Performance Classification:	High-End CNC Machine Tools
HRC:	45-65
Diameter:	3.3-16mm
Cutting Length:	28-48mm
Shank Diameter:	6-83mm
Overall Length:	66-133mm
Application:	Steel
OEM:	Accept

Product Description

The production of holes in high-resin materials can be optimized with a drill geometry design, especially in applications with increased demand of spintering and delamination. The Drill geometries are designed to improve the entrance of the hole, as well as the exit quality on carbon fiber materials with a high content of fiber.

The point geometry was designed to prevent fraying and splintering, while the D1103 is a device whose design reduces delamination problems. In terms of the applications, these include robots, pneumatic and portable electrical machines, CNC-controlled machining centers, composite materials and CFRP resin-rich materials.

The main advantage
(1)Good quality
(2)Super and stable raw material
(3)Super coating
(4)High reputation
(5)Reasonable price
(6)Short delivery time
Advantage
Carbide deep hole drills
1. Sharp cutting matched with the good hardness
2. Two relief angle: Arc & Flat relief angle, Arc relief angle makes the a better wear-resisting of the tool. Flat relief angle makes the tools more sharper and more powerful
3. Coating: ALTIN black coating, advanced technology and equipment of Japan; High temperature oxidation resistance (800° C), Life is longer than others about 20%
Equipment Show
1. We have 10 cnc machines. Walter, ANCA, strong stability and high precision. The technical from Germany
2. Anca: Small diameter cutter
3. Walter: Special cutter
4. Advanced equipment, more efficiency, save time and cost.
5. Clean working environment, better working mood, high quality products
6. Test --with three test to confirm the quality.

Package- - - - - - - - - - - JINOO- - - - - - - - - - - -
(1)One plastic pipe pack one piece, 10 pieces per group.

(2)Use the air bubble paper to encase the plastic paper.

(3)Put the goods encased with air bubble paper into the carton.

(4)Other packing will be accepted according to your needs.

Why choose us:
1) Demand--Custom demand are welcomed
2) Design--Design and Development Team to meet your individual demands
3) Molds--Various molds existed
4) Production--Assembly line production, high standard and strict requirements
5) Products--More than 2000 products are available
6) Package--Tailor-made package to cater for your personalize taste
7) Payment--Various options to make payment more convenient
8) Logistics--Various cooperated express to reduce on your freight cost.
Customer Service--E-mail your suggestions or complaints, and we will handle them ASAP

Performance Solid Carbide Drills
Dia. (MM)	Flute Length (MM)	Shank Dia. (MM)	Shank Length (MM)	OAL (MM)
3.3	20	4	28	54
3.5	20	4	28	54
3.7	20	4	28	54
3.8	24	4	28	58
3.9	24	4	28	58
4.0	24	4	28	58
4.2	24	6	36	66
4.3	24	6	36	66
4.5	24	6	36	66
4.6	24	6	36	66
4.9	28	6	36	66
5.0	28	6	36	66
5.1	28	6	36	66
5.3	28	6	36	66
5.5	28	6	36	66
5.8	28	6	36	66
5.9	28	6	36	66
6.0	28	6	36	66
6.5	34	8	36	79
6.7	34	8	36	79
6.8	34	8	36	79
7.0	34	8	36	79
7.3	41	8	36	79
7.4	41	8	36	79
7.5	41	8	36	79
7.8	41	8	36	79
7.9	41	8	36	79
8.0	41	8	36	79
8.1	47	10	40	89
8.2	47	10	40	89
8.3	47	10	40	89
8.4	47	10	40	89
8.5	47	10	40	89
8.6	47	10	40	89
8.7	47	10	40	89
8.8	47	10	40	89
8.9	47	10	40	89
9.0	47	10	40	89
9.3	47	10	40	89
9.5	47	10	40	89
9.7	47	10	40	89
9.8	47	10	40	89
10.0	47	10	40	89
10.3	55	12	45	102
10.4	55	12	45	102
10.5	55	12	45	102
10.6	55	12	45	102
10.8	55	12	45	102
11.0	55	12	45	102
11.1	55	12	45	102
11.2	55	12	45	102
11.5	55	12	45	102
11.8	55	12	45	102
11.9	55	12	45	102
12.0	55	12	45	102
12.1	60	14	45	107
12.2	60	14	45	107
12.5	60	14	45	107
12.6	60	14	45	107
13.0	60	14	45	107
13.1	60	14	45	107
13.5	60	14	45	107
14.0	60	14	45	107
14.5	65	16	48	115
14.6	65	16	48	115
15.0	65	16	48	115
15.2	65	16	48	115
15.5	65	16	48	115
15.6	65	16	48	115
16.0	65	16	48	115
16.5	73	18	48	123
16.8	73	18	48	123
17.0	73	18	48	123
17.5	73	18	48	123
17.8	73	18	48	123
18.0	73	18	48	123
18.5	79	20	50	131
18.8	79	20	50	131
19.0	79	20	50	131
19.5	79	20	50	131
19.8	79	20	50	131
20.0	79	20	50	131
20.5	93	25	56	151
21.0	93	25	56	151
21.5	93	25	56	151
22.0	93	25	56	151
22.5	96	25	56	153
23.0	96	25	56	153
23.5	96	25	56	153
24.0	96	25	56	153
24.5	96	25	56	153
25.0	96	25	56	153
