| Prod Model: |
HZ306 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
105mm-250mm Diameter |
| Material: |
Diamond |
| Segment Height: |
8-10mm |
| Colour: |
Normal Colour |
| Inner Hole Size: |
16mm 20mm 22.23mm 25.4mm |
| Kind: |
Handheld Saw |
| Manufacturing Arts: |
Sinter |
| Usage: |
Abrasive and Carving |
| Graininess: |
Other |
| Thickness: |
2mm |
| Brand: |
Huazuan |
| Saw Blade External Diameter: |
105mm-250mm |
Product Description

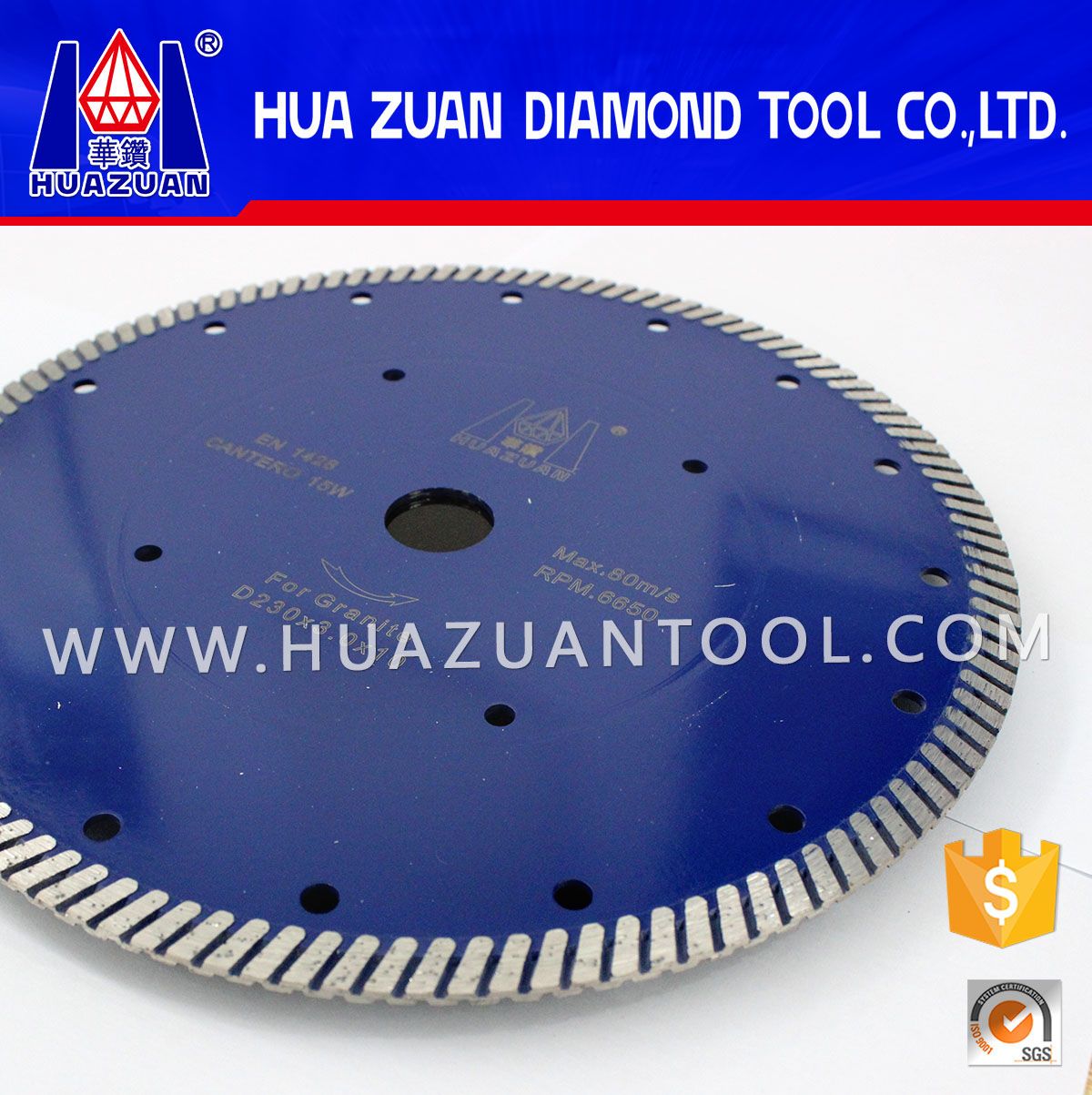

Turbo diamond cutting blade for stone concrete
Specifications
Diamond saw blade for granite marble
1. Used for cutting concrete.
2. High cutting blade segment heigh 8mm -12mm
3. No burnt segment
Diamond saw blade for granite
We supply a full range of diamond cutting disks from diameter 60mm to 1000mm, Available for concrete, granite, asphalt, marble, and other materials on demand.
There are some specifications for your reference:
Outer diameter | Inner diameter (mm) | Dimension of segment (mm) |
Inch | mm | Height | Thickness |
4.125'' | 105 | 20/22.23/25.4 | 8~12 | 1.7 |
4.375'' | 110 | 20/22.23/25.4 | 8/10/12 | 1.8 |
4.5'' | 115 | 20/22.23/25.4 | 8/10/12 | 1.8 |
5'' | 125 | 20/22.23/25.4 | 8/10/12 | 1.8 |
6'' | 150 | 20/22.23/25.4 | 8/10/12 | 2 |
7'' | 180 | 22.23/25.4 | 8/10/12 | 2.2 |
8'' | 200 | 22.23/25.4 | 8/10/12 | 2.2 |
9'' | 230 | 22.23/25.4 | 8/10/12 | 2.2 |
10'' | 250 | 22.23/25.4 | 8/10/12 | 2.5 |
12'' | 300 | 22.23/25.4 | 8/10/12 | 2.5 |
14'' | 350 | 25.4/50/60 | 8/10/12 | 3.2 |
16'' | 400 | 25.4/50/60 | 8/10/12 | 3.4 |
Diamond saw blade advantages:
1. Diamond saw blade use high-grade diamond and metal powder, we adopt unique formula for different hardness marble.
2. We have very strict quality control system to assure stable quality.
3. Our saw blade have long work life with low price. We can adjust our specification according to customer's requirements.
4. We use high-frequency welding. Our product can reduce cutting friction a lot, improve slab flatness, saving saw energy.
