| Prod Model: |
JL-TDBSP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Size: |
230mm |
| Advantage: |
with Protection Segments |
| Manufacturing Art: |
Silver Brazed |
| Min Quantity: |
10PCS/Size |
| Usage: |
Stone Cutting, Concrete Cutting |
Product Description

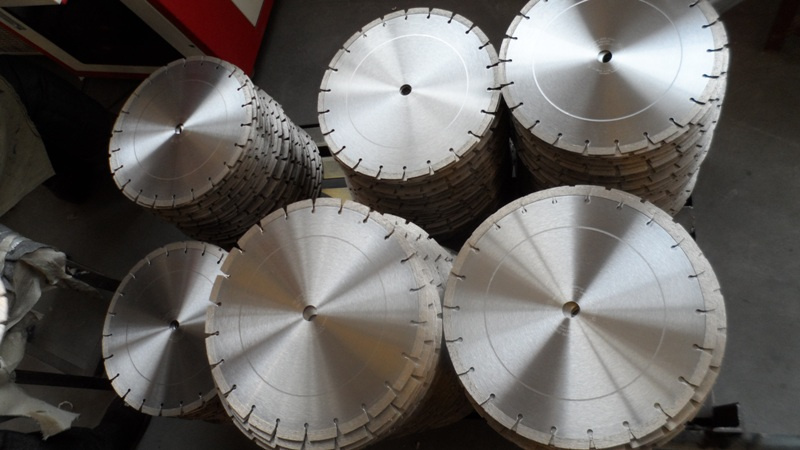

Turbo segment Diamond Saw Blade with protection segment for cutting granite or masonry (JL-TDBSP)
Applicable for cutting concrete, hard paver, refractory material, etc.
sliver brazed ,or hot pressed.
with protection segment:
turbo segment provide high performance.

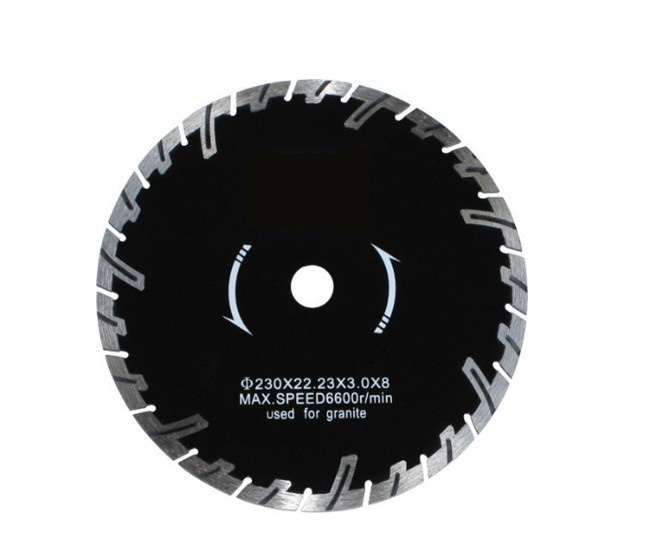

Size:230mm*22.23*8*3mm.
Size: 4"-14"are available.
| Diameter (mm) | Specification LxWxH (mm) | Segment Number | Cutting depth (m2/day) | Feed speed (m/min) | Cutting speed(m2/h) | Output(m2/disc) |
| 200 | 40x3.2x8/10 | 14 | 20 | 3~5 | 1~3 | 12~15 |
| 250 | 40x3.2x8/10 | 18 | 20 | 3~5 | 1~3 | 14~17 |
| 300 | 40x3.2x10/12 | 21 | 20 | 3~5 | 1~3 | 16~20 |
| 350 | 40x3.2x10/12 | 24 | 20 | 3~5 | 1~3 | 18~23 |
| 400 | 40x3.4x10/12 | 28 | 20 | 3~5 | 1~3 | 20~25 |
| 450 | 40x3.6x10/12 | 32 | 20~50 | 2~4 | 1~3 | 22~27 |
| 500 | 40x4x10/12 | 36 | 20~50 | 2~4 | 1~3 | 35~47 |
| 550 | 40x4.6x12 | 40 | 20~50 | 2~4 | 1~3 | 40~52 |
| 600 | 40x4.6x10/12 | 42 | 20~50 | 2~4 | 1~3 | 43~57 |
| 700 | 40x5x10/12 | 46 | 20~50 | 2~4 | 1~3 | 65~85 |
| 750 | 40x5.5x10/12 | 48 | 20~50 | 2~4 | 1~3 | 77~97 |
| 800 | 40x5.5x10/12 | 50 | 20~50 | 2~4 | 1~3 | 85~105 |
| 850 | 40x6.0x10/12 | 54 | 20~50 | 2~4 | 1~3 | 92~110 |
| 900 | 24x6.9/6.1x13 | 64 | 30~60 | 1.5~4 | 2~3 | 200~270 |
| 1000 | 24x6.9/6.1x13 | 70 | 30~60 | 1.5~4 | 2~3 | 220~300 |
| 1100 | 24x7.4/6.6x13 | 74 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1200 | 24x7.4/6.6x13 | 80 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1300 | 24x8.4/7.6x13 | 88 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1400 | 24x8.4/7.6x13 | 96 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1500 | 24x9.2/8.4x13 | 100 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1600 | 24x9.4/8.4x13 | 108 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1700 | 24x9.2/8.4x13 | 112 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
| 1800 | 24x9.9/9.1x13 | 120 | 30~60 | 1.5~4 | 1.5~3 | 1.5~3 |
