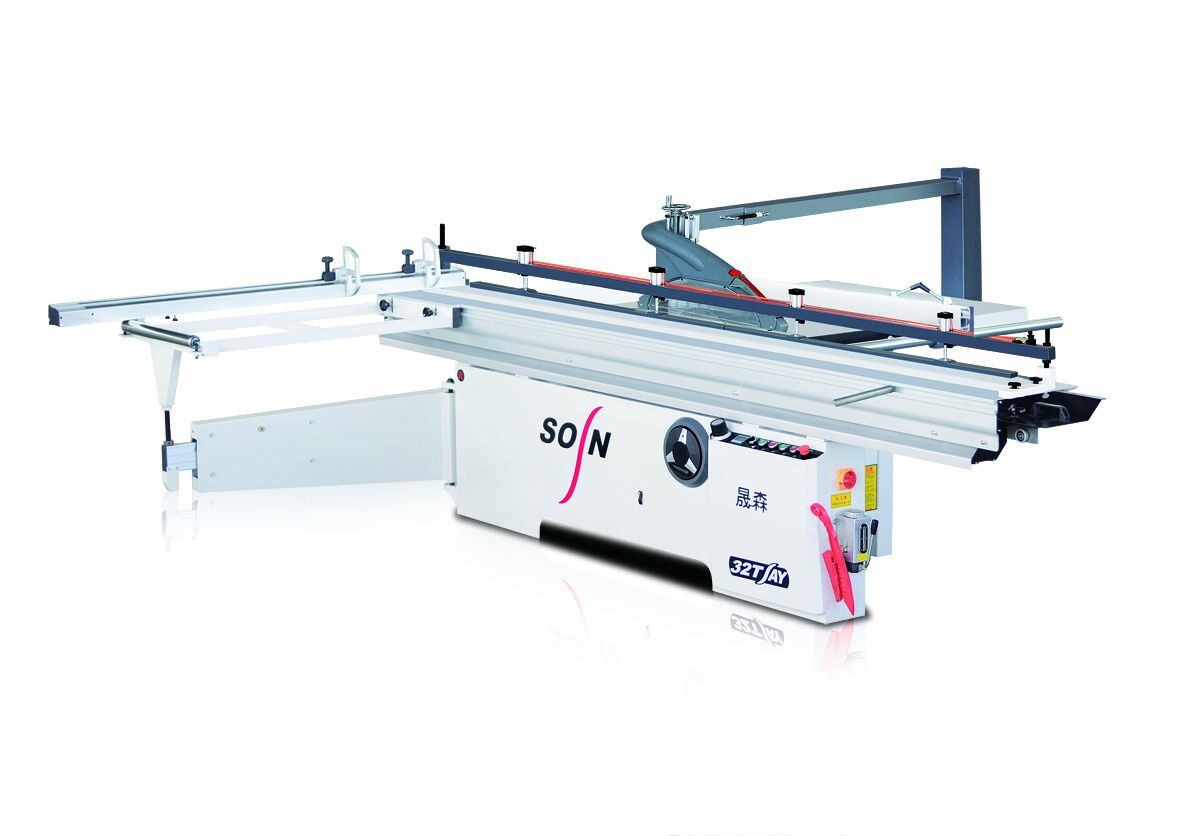

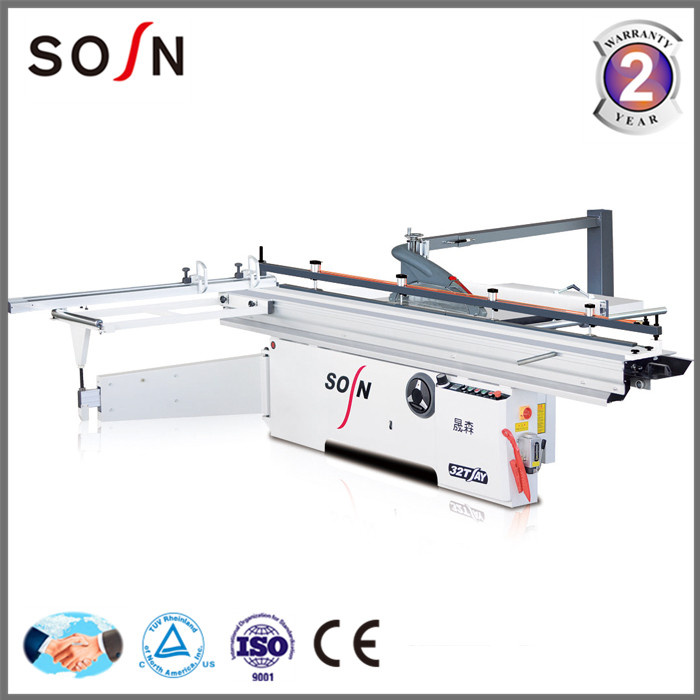

Two Blade Wood Cutting Machine Precision Sliding Table Panel Saw
| Price: |
US $ 2000-6000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
MJ6132TAY |
| Dimension Of Sliding Table: |
3200 X 400mm |
| Opening Cut: |
1250mm |
| Diameter Of Saw Cutting: |
250-400mm |
| Cutting Height: |
125mm |
| Cutting Height At 45 Degrees: |
80mm |
| Rotation Of Saw Cutting: |
4000/6000mm |
| Diameter Of Scoring Saw: |
120mm |
| Motor: |
5.5kw+1.1kw |
| Control Of Saw Blade Degree: |
Digital |
| Weight: |
850kgs |
| Type: |
Table Panel Saw |
| Layout: |
Vertical |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Certification: |
ISO |
Product Description
Parameter| Dimension of sliding table | 3200 x 400mm |
| Opening cut | 1250mm |
| Diameter of saw cutting | 250-400mm |
| Cutting height | 125mm |
| Cutting height at 45 degrees | 80mm |
| Rotation of saw cutting | 4000/6000mm |
| Diameter of scoring saw | 120mm |
| Motor | 5.5kw+1.1kw |
| Control of Saw blade degree | Digital |
| Package size of machine body | 2200*1150*1100mm |
| Package size of sliding table | 3350*480*320mm |
| weight | 850kgs |
Feature: - Sliding table guide track is plating chromium steel bars structure, exact and durable
- Sliding table have multi-point locking, improving working efficiency greatly.
- With oxidation treatment, movable table surface is beautiful and hard wearing
- Blade up&down movement by electric control., tilting 0-45 degree and digital readout

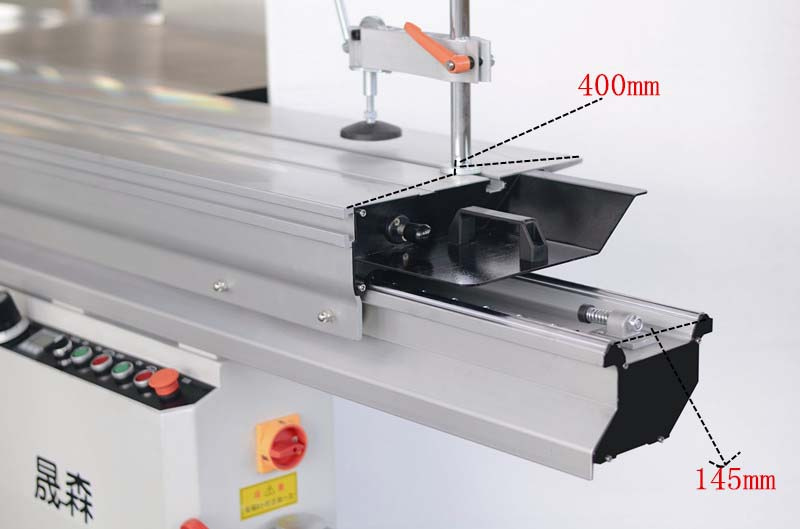

1.electrics:CHINT brand 2. Motor 5.5+1.1kw, with copper wire and aluminum case 3.fixed points on the machines to make sure the no changable 4.dynamic balance 5. Much heavier 6.can design as your need 6. With big dust cover as Altendorf  | Altendorf sliding table, 400mm width, inner side between rail guide is 145mm, wider, stable, precise working.
|

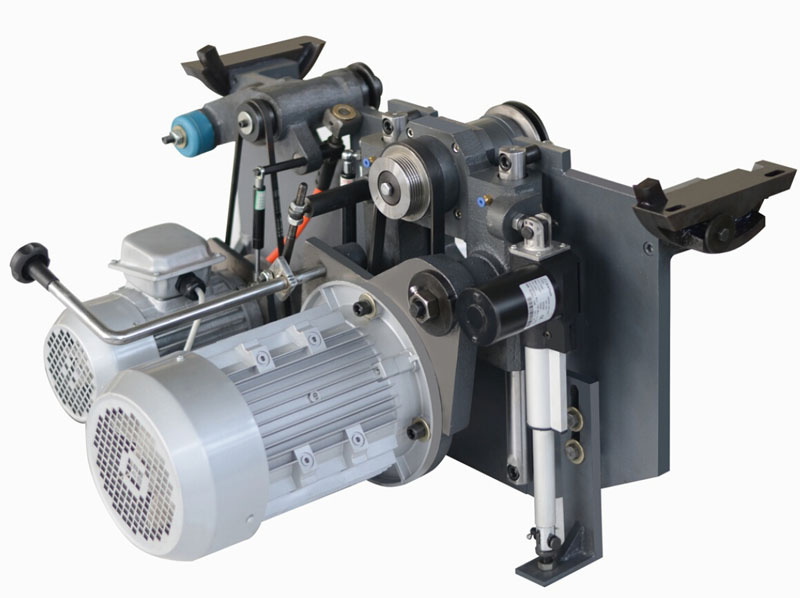

 | cylindrical guide way of lifting,
same as Altendorf.
|
 | 1.5.5kw +1.1kw big power motor,
2.National standard,
3.Cooper wire,
4.Aluminum shells,(radiating faster, not easy to burn out the motor, so this motor's life is much longer than common),
5.Maximum motor power transfer from the Poly-V belt .
|

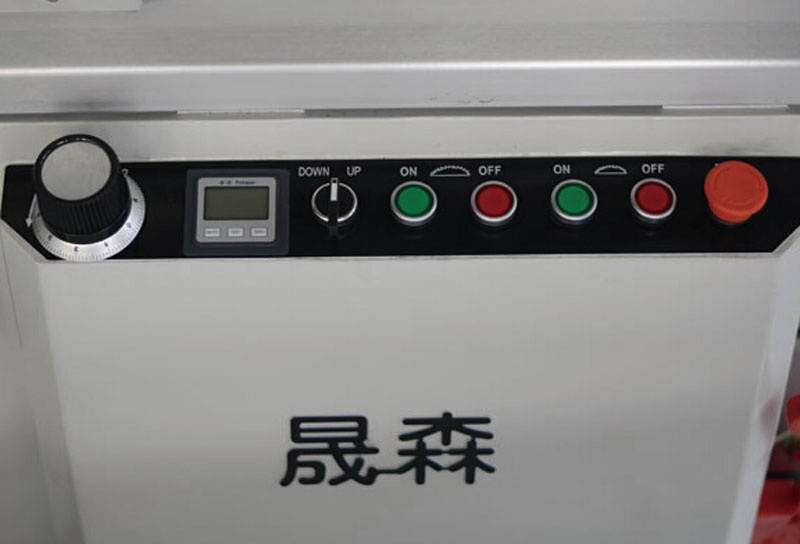

 | Digital display for saw blade tilt, precision.
Electric control up and down of main saw blade.
Europe quality buttons.
|
NOTE1.Payment term:30% TT as deposit,70%TT after readiness of the machine 2.Package:standard wooden case for export 3.Delivery time:20 days after getting deposit 4.Warranty:12 month for whole machine.Should you have any need of the machine , please feel free to contact with me
