| Prod Model: |
GQ40/45/50 |
| Warranty: |
12 Months |
| Voltage: |
220-440V |
| Color: |
Red (or Customized) |
| Function: |
Cutting Steel Bar, Deformed Bar etc |
| Name: |
Steel Cutting Machine/Rebar Cutter |
| Cutting Bar Diameter: |
Round Bar(6-50mm); Deformed Bar(6-40mm) |
| Weight: |
400-650kg |
| Motor Power: |
3-4kw |
| Structure: |
Compact Structure, Small Size, Easy Movable |
| Certificate: |
ISO |
Product Description
Steel Cutting Machine/Widely Used Rebar Cutter(GQ-40/45/50)
Features of Steel Cutting Machine/Rebar Cutter:
1. Enhanced machine rack, small volume, compact structure, solid and reliable.
2. Good lubricating property, adopt closed gear box, use the gear splashing to lubricate. It could be continuous work more than three months after adding enough (8-12kg) gear oil.
3. Less function loss because of the lubrication improvement. The gear section adopts rolling bearing, less resistance. Compared with same type cutting machine, one third load power saving.
4. Adopt high rigid cutting head, connecting rod and high speed national standard motor, guaranteed a more stable quality and longer service life.
5. Convenient to be moved and maintenance.
Technical Parameter of Steel Cutting Machine/Rebar Cutter:| Model No. | Cutting Diameter
(mm) | Cutting Speed
(times/min) | Motor Power
(kw) | Cutting Length
(mm) | Dimension
(L*W*H)
(mm) | Weight
(kg) |
| Round Bar | Deformed Bar |
| GQ-40A | φ6-φ38 | φ6-φ32 | 32 | 3 | 34 | 1370*500*750 | 420 |
| GQ-40B | φ6-φ38 | φ6-φ32 | 32 | 3 | 34 | 1300*480*700 | 400 |
| GQ-40C | φ6-φ40 | φ6-φ32 | 32 | 3 | 54 | 1370*500*700 | 450 |
| GQ-45D | φ6-φ45 | φ6-φ36 | 54 | 3 | 34 | 1370*500*750 | 480 |
| GQ-45D Cutting diameter for angel bar: 63*63mm |
| GQ-50A | φ6-φ48 | φ6-φ36 | 28 | 4 | 44 | 1400*480*850 | 530 |
| GQ-50B | φ6-φ48 | φ6-φ36 | 28 | 4 | 44 | 1400*480*850 | 500 |
| GQ-50C | φ6-φ50 | φ6-φ40 | 33 | 4 | 44 | 1430*480*860 | 650 |

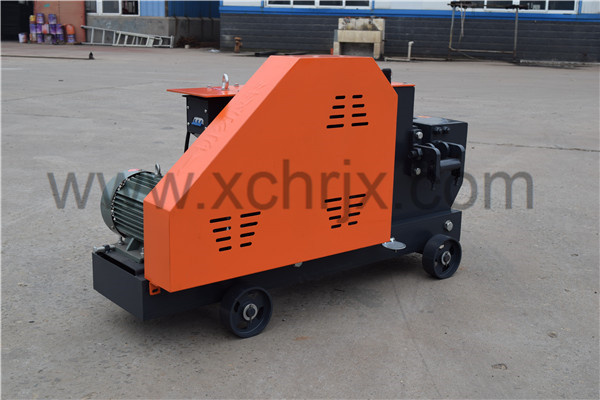

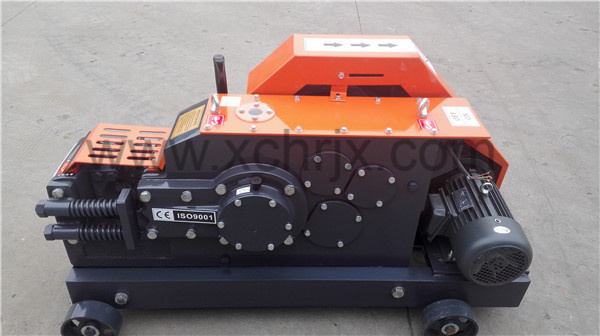

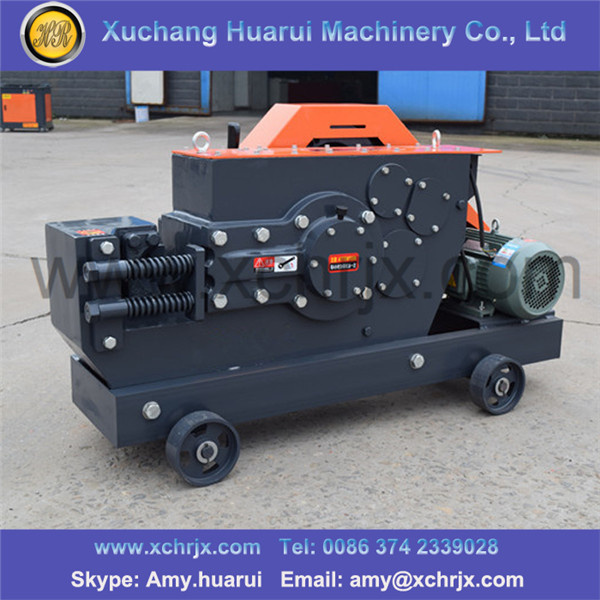

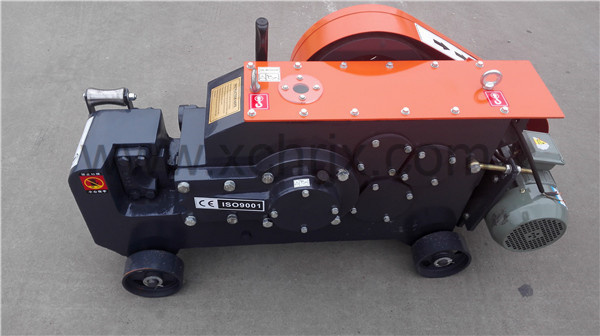

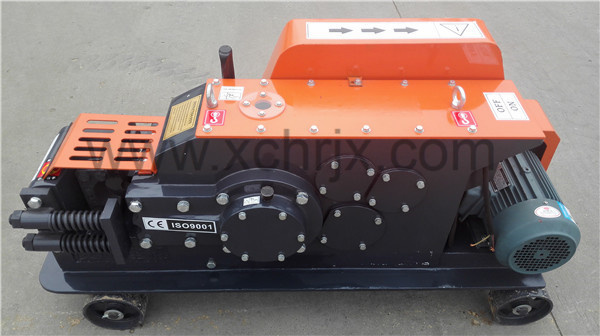

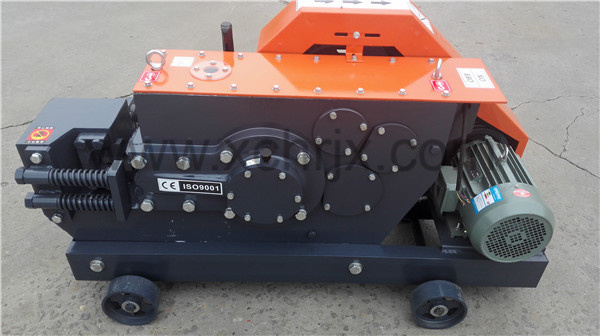

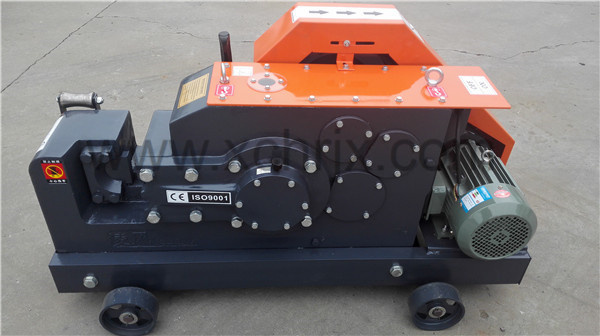

Pictures of Steel Cutting Machine/Rebar Cutter:
Xuchang Huarui Machinery Co., Ltd. Was established in 1990, mainly engaged in the R&D and manufactures nail making machine, waste tire recycling machine and auxiliary equipment.
After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. Has developed from a small machinery factory into a large-scale and well known machinery company.
Our main products are full automatic nail making machine, waste tire recycling machine, wire drawing machine, rebar straightening and cutting machine, CNC wire bending machine and auxiliary equipment. Our scale of production is among the best in the profession, sales network are spread out into all over the world, and have a favorable reputation by customers. As a professional machinery company, we always devote to produce best products and provide excellent service for customers. The satisfaction of clients and good reputation is our highest pursue.
We stick to the principle of "Quality First, Customer Uppermost", and ensure quality first, service first. In order to service customers best, the warranty of all our products are two years. We are ready to join hands with our friends for establishing a bright future.
