Ultrathin Hollow Hydraulic Torque Wrench Tools/Bolt Equipment
| Price: |
US $ 10-1000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
FE series |
| Type: |
Combination Wrench |
| Material: |
Carbon Steel |
| Standard: |
German Type |
| Surface Treatment: |
Phosphorization |
| Feature: |
Anti-Magnetic |
| Brand: |
Fareast |
Product Description
Shanghai Fareast Technology Co.,Limited can supply Pneumatic Torque Wrench, Electric Torque Wrench, Hydraulic Torque Wrench
| 1.The material of hydraulic tools wrench are Aluminum-Titanium alloy |
| and super high strength alloy steel for increased strength,intensity and durability of the tool. |
| High repeatability, a precise design is with accuracy ±3%. |
| |
| 2. The 360°*180° degree hose uni-swivel allows easy fit in confined areas, and eliminates |
| hose kinking. It is unbeaten for durability, and unequalled accuracy. |
| |
| 3. Square drive wrench: the lock of trigger is pressed slightly, and it may as you |
| please situate the reaction arm of 360° trimming style on the support. |
| |
| 4. Anti-reverse pawl designed for preventing ratchet return to maintain required torque. |
| |
| 5. OEM offered, customized design |

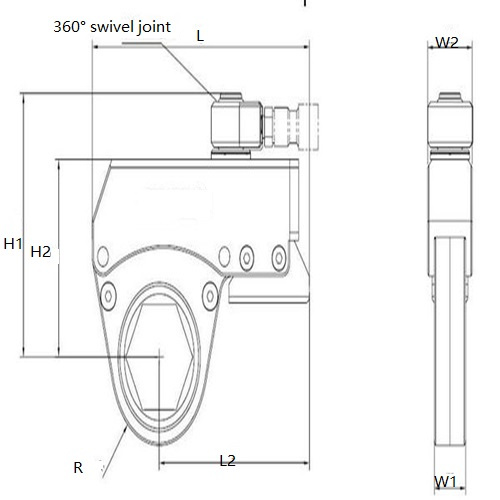

2: Drawing
3) Model Listings
| Model | FEJHX02 | FEJHX05 | FEJHX10 | FEJHX20 | FEJHX25 | FEJHX40 |
| Max torque(Nm) | 2266 | 5188 | 9855 | 17202 | 23072 | 40639 |
| Min torque(Nm) | 227 | 519 | 986 | 1720 | 2307 | 4064 |
| Sides Nut Size(mm) | 27-50 | 27-65 | 50-90 | 85-115 | 95-135 | 100-155 |
| Power head | JX02 | JX05 | JX10 | JX20 | JX25 | JX40 |
| Cassettes link | HX02-50 | HX05-65 | HX10-90 | HX20-115 | HX25-135 | HX40-155 |
| L(mm) | 205 | 251.3 | 302.5 | 367 | 400.5 | 457.5 |
| L1(mm) | 147 | 188 | 233 | 283 | 308 | 264 |
| H1(mm) | 129 | 163 | 191 | 223 | 246 | 282 |
| H2(mm) | 100 | 136 | 166.5 | 198 | 224 | 265 |
| W1(mm) | 32 | 41 | 53 | 64 | 70 | 84 |
| W2(mm) | 50 | 66 | 83 | 99 | 110 | 132 |
| R(mm) | 41.3 | 53.8 | 68.8 | 85.3 | 98.8 | 115.8 |
| Weight(Kg) | 2.2 | 5 | 9.6 | 16.9 | 22.9 | 38 |
4) Contact us for more Pneumatic torque wrench,Electric torque wrench,hydraulic torque wrench models
