| Prod Model: |
GH1440K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Swing Over Bed Dia.: |
400mm |
| Bed Length: |
1000mm |
| Spindle Bore: |
40mm |
| Max.Swing.Over Gap: |
506mm |
| Max.Distance Between Centers: |
1000mm |
| Taper Of Spindle Bore: |
Mt5 |
| Spindle Nose: |
D-4 |
| Travel Of Tailstock Quill: |
120(4-3/4)mm |
| Diameter Of Tailstock Quill: |
45(1-25/32)mm |
| Main Motor Power: |
2.4kw |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Setting Mode: |
Floor-type |
| Precision: |
High Precision |
| Tool Holder: |
4 Position Tool Post |
Product Description

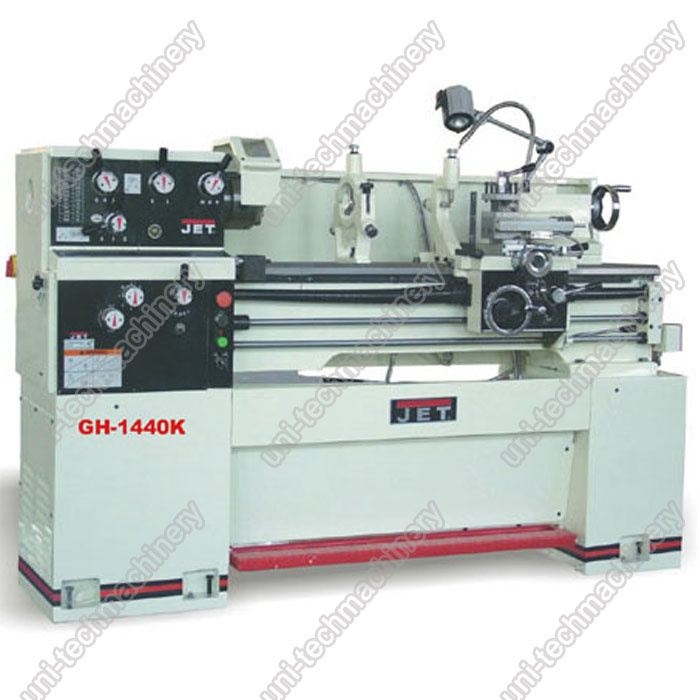

Universal Bench Lathe machine(GH1440K)
Machine advantage:
1. Built in safety clutch.
2. Cross-ribbed headstock for added strength and stability.
3. Anti-friction mounted shafts and dynamically balanced components.
4. Hardened and ground alloy steel gears, shafts and splines.
5. Precision chrome alloy spindle with a big 40mm (1-1/2) thru hole.
6. All cast iron construction.
7. Hardened & precision ground bedways.
8. Quick change gearbox will cut American and metric threads.
9. Foot brake.
10. Dual dialsinch/metric.
Main feature:
1. Induction hardened, precision ground V-way bed.
2. D1-4 spindle is supported by high quality tapered roller bearing.
3. Hardened, precision ground gears in headstock.
4. High precision directly mounting chuck.
5. Carriage mounted spindle control lever.
6. Automatic feed and threading are fully interlocked.
7. Tailstock may be offset for turning tapers.
8. One-piece casting iron base allows heavy cuts.
9. Tolerance test certificate, test flow chart included.
STANDARD ACCESSORIES:
---Jaw chuck, 4-jaw chuck,
---Face plate, steady rest
---Following rest
---Coolant, work light
---Wrenches.
OPTIONAL ACCESSORIES:
---DRO
---Quick change tool post
---Chuck cover
---leads crew cover
---Tool post cover
---CE standards
Specification:
| | Model | GH-1340K | GH-1440K |
General Capacity
| Max.Swing.over bed | mm | φ330mm(13) | φ356mm(14) |
| Max.Swing.over cross slide | mm | φ185(7-7/25) | φ210(8-2/8) |
| Max.Swing.over gap | mm | φ480(19) | φ506(20) |
| Bed width | mm | 260(10) |
| Max.Swing.over | mm | 1000(40) |
Spindle
| Taper of spindle bore | | MT#5 |
| spindle bore | mm | φ40(1-1/2) |
| Steps of spindle speeds | | 12steps |
| Range of spindle speeds | r/min | 40-1800rpm |
| Spindle nose | | D-4 |
| Threading & Feeding | Metric thread range | mm | 0.45~7.5(22kinds) |
| Inch screw thread range | TPI | 4~112(40kinds) |
| Range of longitudinal feeds | mm | 0.03-0.688(0.0011-0.0271in/rev) |
| Range of cross feeds | mm | 0.015-0.220(0.0003-0.01in/rev) |
| Leadscrew | Diameter of leadscrew | mm | φ22(7/8) |
| Pitch thread of leadscrew | mm | 4(8T.P.I) |
| Tailstock | Travel of tailstock quill | mm | 120(4-3/4) |
| Diameter of tailstock quill | mm | Φ45(1-25/32) |
| Taper of tailstock quill | | MT#3 |
| Power | Main motor power | Kw | 2.4(3HP) |
| Coolant pump motor power | Kw | 0.04(0.055HP) |
| Overall dimentions of lathe(LxWxH) | mm | 1900x740x1150 |
| Packing size of lathe(LxWxH) | mm | 1970x760x1460 |
| Net Weight | Kg | 960(2112ibs) |
| Gross Weight | Kg | 1090(2398ibs) |
Other informations:
1).payment terms: 1.30% down payment before production,70% payment against copt b/l.
2. LC at sight
Voltage requirements 220V/380V/400V...
2) deliver time:35 days after contract confirmed.
3) package :1970x760x1460mm
in wooden case or carton or pallet.
