| Prod Model: |
BL-UM-H25A/B/C/D/E/F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Table Size: |
254*1370mm |
| Y Axes Guideway Type: |
55 Double Dovetail/Rectangular |
| Z Axes Guideway Type: |
55 Double Dovetail/Rectangular |
| Long Travel: |
800 or 900/820 or 920/770mm |
| Cross Travel: |
380/420mm |
| Vertical Travel: |
350/400mm |
| T-Slot No. And Size: |
3*16mm |
| RAM Travel: |
470mm |
| Distance From Spindle Nose To Table Surf: |
0~400mm |
| Spindle Speed: |
Standard:16class 50Hz 66-4540 60Hz 80-5440 |
| Type: |
Tool Milling Machine |
| Object: |
Hardware |
| Structure: |
Rocker |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
Product Description

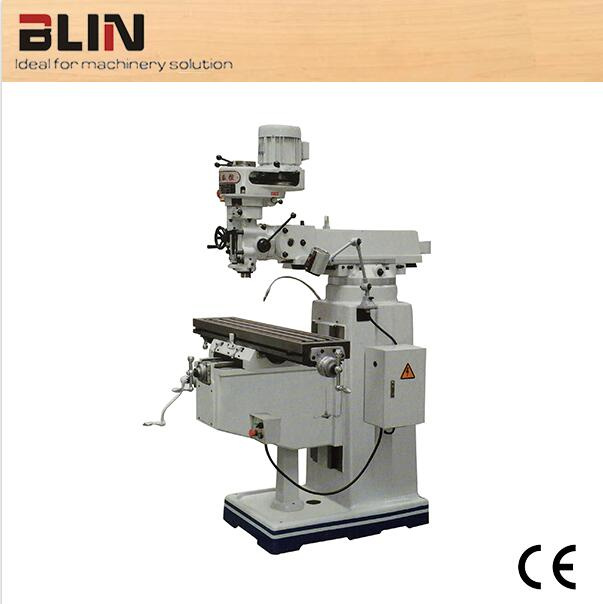

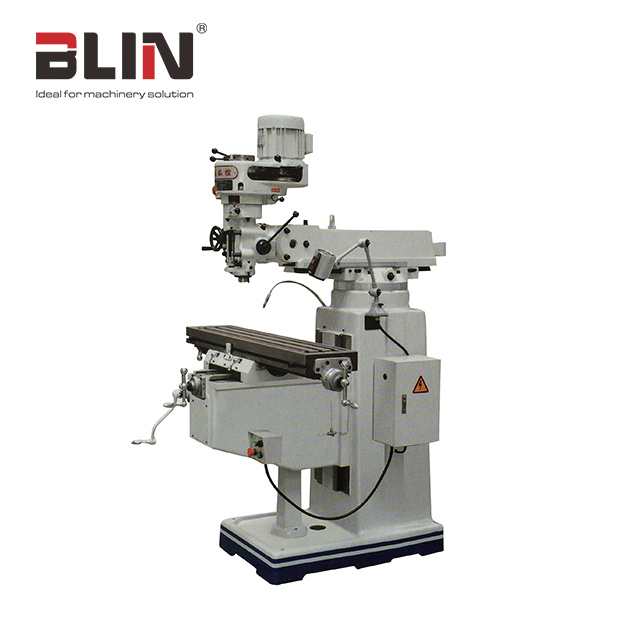

Universal Milling Machine(BL-UM-H25A/B/C/D/E/F)(CHINA top quality)
Features:
The guide way on saddle is lined with TF wearable material,easy to adjust,good stability.
Table surface and 3 axes guideway hardened by ultrasonic and precisely ground
H25F standard with X/Y axes gear box power feed, power:250w, feed:15,23,33,48,78,114,166,257
Specification:
| Item | Unit | BL-UM-H25A | BL-UM-H25B | BL-UM-H25C | BL-UM-H25D | BL-UM-H25E | BL-UM-H25F |
| Table size | mm | 254×1270(10''×50'') or 254×1370(10''×54'') | 250×1270(10''×50'') |
| Y axes guideway type | / | 55° double dovetail | Rectangular | Rectangular | Rectangular | Rectangular | Rectangular |
| Z axes guideway type | / | 55° double dovetail | 55° double dovetail | Rectangular | Rectangular | Rectangular | Rectangular |
| Long travel | mm | 800 or 900 | 820 or 920 | 770 |
| Cross travel | mm | 380 | 420 |
| Vertical travel | mm | 350 | 400 |
| T-slot No. and size | mm | 3×16 |
| Ram travel | mm | 470 |
| Distance from spindle nose to table surface | mm | 0~400 |
| Spindle taper | / | Standard: R8 Optional:ISO30/40 | Standard:ISO40 | Standard: R8 Optional:ISO30/40 |
| Spindle travel | mm | 127 |
| Spindle speed | rpm | Standard:16class 50hz 66-4540 60hz 80-5440 |
| Optional:stepless 60-4200 | Optional:stepless 60-3600 | Optional:stepless 60-4200 |
| Spindle feed | mm/r | 3 steps:0.04(0.0015'')/0.08(0.003'')/0.15(0.006'') |
| Spindle motor | kw | 2.25(3HP) | 3.75(5HP) | 2.25(3HP) |
| Head swivel | ° | 90° |
| Head tilting | ° | 45° | Fix | 45° |
| Packing size | mm | 1516×1550×2080 |
| G.W. | kg | 1280 | 1320 | 1200 | 1490 | 1490 | 1450 |
Note: If asseble power feed on X axes,table's long travel to be shorten about 100mm.
Standard Accessories:
Darw bar
Electricity box
Regular wrenches
Working lamp
Optional Accessories:
DRO
Power feed
Clamping kits
Machine vice
Oil collecting plate
Plastic splash guard
Coolant system
Milling chuck
Spring collet
Variable milling head
CSA Electric
Air draw bar
Hung up control panel
Frequency conversion milling head
BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 37years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.
Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.
Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.
By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.
We look forward to hearing from you at any time!
