Prod Model: |
JBP100B |
Max High Horizontal Hole: |
2.8m |
Max Low Horizontal Hole: |
2.2m |
Walk Speed: |
2.5km/H |
Rock Rigidity: |
F=6-20 |
Gradeability: |
30° |
Rotation Torque: |
2300n.M |
Rotary Speed: |
0-90rpm/Min |
Feed Way: |
Oil Cylinder-Chain |
Product Description
30M Deep Rock Drilling Rig Machine For Blast Hole The Usage of Crawler Mining Portable Digging Hole Machines JBP100B 1. This series machine are used in a wide variety of Quarry ,Highway , Water and electricity , Surface mine and deep hole joint pipe drill work on the building project etc.
2. This series drilling rigs with air compressor,hammer together work , To blasting horizontal hole ,vertical holes ,inclines holes .Specification of Crawler Mining Drilling Rig Machines JBP100BRock rigidity | F=6-20 |
Diameter of hole | Φ80-105mm |
Optium drilling depth | 25-30m |
Max high horizontal hole | 2.8m |
Max low horizontal hole | 2.2m |
Walk speed | 2.5km/h |
Gradeability | 30° |
Rotary speed | 0-90rpm/min |
Rotation torque | 2300N.m |
Lift power | 15 KN |
Feed way | oil cylinder-chain |
Feed distance | 2000mm |
Carriage Compensation | 900mm |
Working pressure | 5-14bar |
Air consumption | 7-12m3/min |
Ground clearance | 284mm |
Sliding carriage pitch angle | 0-97° |
Sliding carriage swing angle | Left17°,righ32,total 49° |
Power | 33kw(YC2108)/37KW(YC2115) |
Dimension | 4100x2030x2020mm |
Weight | 3400KGS |

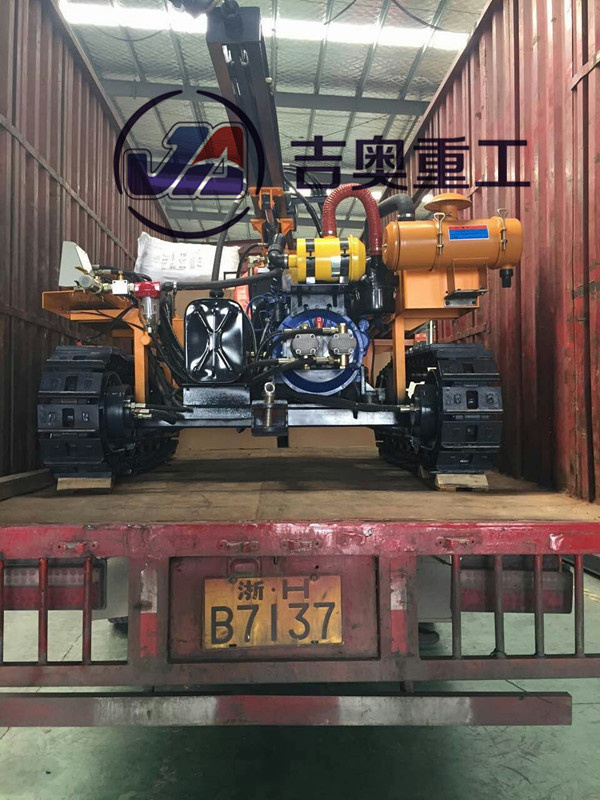

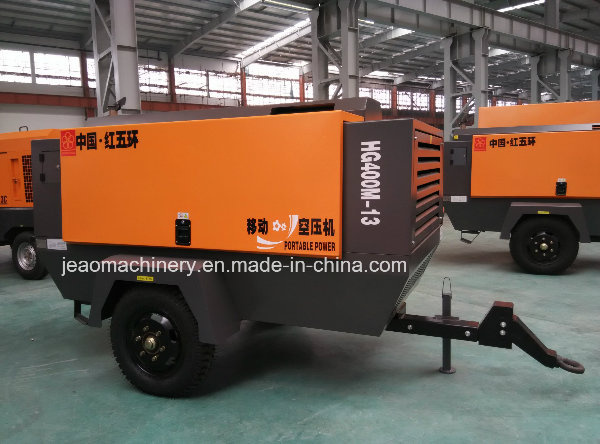

Air Compressor for Crawler Mining Drilling Rig Machines JBP100B
Model No | HG400M-13 |
Compressor |
Style | Double screw, single stage compression, Portable |
Air Delivery(m³/min) | 10 |
Rated Working pressure (Bar) | 13 |
Range of Working pressure(Bar) | 5-10 |
Lube Capacity(L) | 60 |
Interface Dimension,Quantity | R1.1/2" x 1,R1"x1 |
Tire Specifications | 6.5-16x2 |
Tire Pressure(Kpa) | 500-600 |
Elevation Work Max.(m) | 3000 |
L×W×H(mm) | 3220×1850×1850 |
Weight | 2450 |
Noise dB(A) | 80-85 |
Diesel Engine |
Model | 6BT5.9 or YC6108ZG |
Style | Cooled stroke 4 direct injection super charge |
Rated Power(Kw/Hp) | 110/150 |
Rated Speed(rpm) | 2500 or 2400 |
Coolant Volume(L) | 25-28 |
Engine Oil Capacity(L) | 12-18 |
Fuel Tank Capacity(L) | 120-160 |
80% Load oil wear (L/h) | 17-18 |

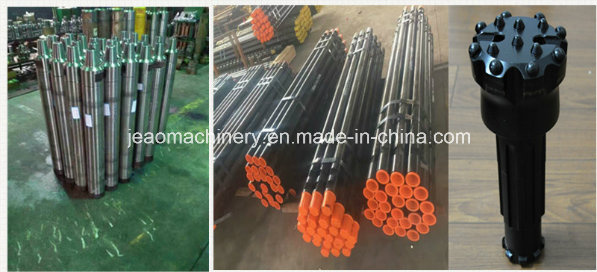

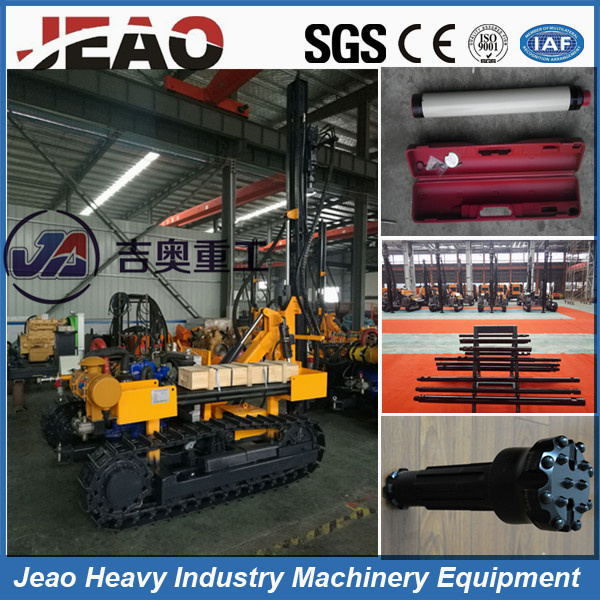

Parts for Crawler Mining Portable Digging Hole Machines JBP100B
