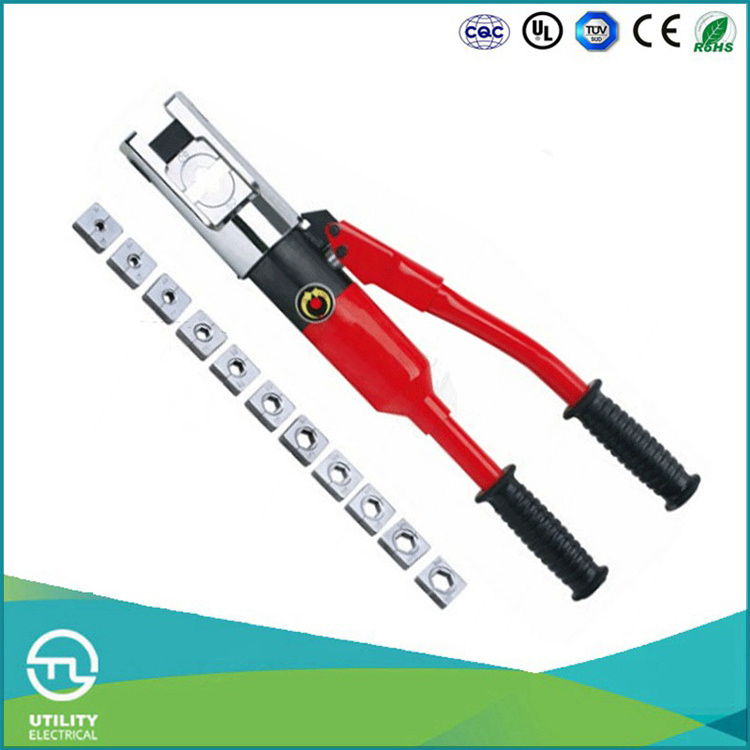

| Price: | US $ 129-161/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | ZHO-300 |
|---|---|
| Cutting Range: | 35-240mm2 16-300mm2 |
| Outforce: | 10t |
| Stroke: | 16mm |
| Standard Dies: | 16,25,35,50,70,95,120,150,185,240,300mm2 |
| Weight: | 4.5kg |
| Packing Size: | 545*130*235mm |
| Package: | Plastic Case |
| Function: | Wire Stripping |
| Performance: | Cutting |
| Shaft Style: | Straight |
| Structure: | Half-Box Joint |
| Types: | Hydraulic Crimping Tool |
| Brand: | Utl |
| Model | ZHO-300 |
| Range of Application | 35-240mm2 16-300mm2 |
| Output force | 10T |
| Stroke | 16mm |
| Standard Dies | 16,25,35,50,70,95,120,150,185,240,300mm2 |
| Dimension | 545*130*235mm |
| Weight | 4.5KG |
| Package | plastic case |
| Model | Cutting Range | Length | Weight |
| HS-300B | 300mm2 max | 230mm | 0.95KG |
| LK-100 | φ14mm max | 280mm | 0.45KG |
| LK-105 | φ26mm max | 350mm | 1.33KG |
| LK-201 | φ26mm max | 570mm | 2.15KG |
| LK-500 | 500mm2 max | 800mm | 2.8KG |
| HS-325A | 240mm2 max | 260mm | 0.7KG |
| HS-520A | 400mm2 max | 280mm | 0.9KG |
| HS-500B | 400mm2 max | 235mm | 1.1KG |
| HS-765 | 400mm2 max | 310mm | 0.93KG |
| LK-240 | 240mm2 max | 240mm | 0.58KG |
| LK-760L | 500mm2 max | 430mm | 0.9KG |
| LK-960 | 960mm2 max | 870mm | 5.6KG |
| LK-380 | 380mm2 max | 330mm | 0.75KG |
| LK-960 | 960mm2 max | 870mm | 5.6KG |
| J14 | φ20mm max | 340mm | 1.8KG |
| J40 | 300mm2 max | 325mm | 1.1KG |
| Crimping machine | Type |
| EM-6B2 | electrical |
| AM-016 | pneumatic |
| AM-10 | pneumatic |
| AM-Y10 | AC/DC electrical |
| AM-35 | pneumatic |
| AM6-6 | pneumatic |
| AM6-4 | pneumatic |
| AM-70 / AM-240 | pneumatic |
| AM120-4 | pneumatic |
| Hydraulic crimping tool model | Crimping range |
| QZD-400A | 16-400mm2 |
| HT-300 | 16-300mm2 |
| CYO-300C | 35-240mm2 for AL 50-300mm2 for CU |
| ZYO-400 | 50-300mm2 for AL 70-400mm2 for CU |
| ZCO-400 | 50-300mm2 for AL 70-400mm2 for CU |
| ZCO-300 | 10-240mm2 for AL 16-300mm2 for CU |
| FKO-240A | 10-185mm2 for AL 16-240mm2 for CU |
| ZHO-300 | 35-240mm2 for AL 16-300mm2 for CU |
| CPO-150S | 8-100mm2 for AL 16-150mm2 for CU |
| YQ-70 | 6-70mm2 for AL 6-70mm2 for CU |
| EP-430 | 35-300mm2 for AL 50-400mm2 for CU |
| HP-120 | 8-100mm2 for AL 14-150mm2 for CU |
| HP-120B | 8-100mm2 for AL 14-150mm2 for CU |
| HP-240 | 10-185mm2 for AL 16-240mm2 for CU |
| HP-300 | 35-240mm2 for AL 50-300mm2 for CU |
| HP-300B | 35-240mm2 for AL 50-300mm2 for CU |
| YQ-120A | 10-120mm2 for AL 16-120mm2 for CU |
| YQK-240A | 10-185mm2 for AL 16-240mm2 for CU |
| YQK-300A | 10-185mm2 for AL 16-300mm2 for CU |
| EP-410 | 35-240mm2 for AL 50-300mm2 for CU |
| HT-51 | 10-185mm2 for AL 10-240mm2 for CU |
Service
Company Information
UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .
The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.
UTL ELECTRICAL CO.,Ltd is a professional manufacturer and supplier,of all kind of terminal block ,which was found in 1990.We enjoy a good reputation all around the world ,we are not only provide product in the mainland of China but also customer from different country .
The company has consistently adhered to the "people-oriented, market-oriented" business philosophy, product standards. UTILITY Products are mainly exported to France,Russia, Brazil, Southeast Asia,Hong Kong and Taiwan,as an export-oriented (export 65%) of private-owned enterprises ."UTILITY" reputation throughout the north and south, "UTILITY" philosophy on its head, won the hearts.
Work Shop
UTILITY are Cengcengbaguan accordance with the appropriate standards by the professional staff to produce marketable, used worldwide industrial automation products as their responsibility to actively follow the introduction, learn technology, science and technology innovation internationally famous brand products, forge ahead.
"UTILITY" service drew our customers appreciated."Takeoff UTILITY, proud UTILITY man",who is the UTILITY with advanced management,strong technical strength, perfect process technology,first-class testing equipment and excellent mold processing technology to produce the premise of higher quality products,with excellent sales team,well sales network and professional services,open up the market to win a new chapter today.
Certificate
UTILITY painstaking research of the IEC, UL, CSA, GB, CE, CCC and other international and domestic standards for terminals, and in accordance with these standards preparing their own more stringent corporate standards, from the development, mold design, raw material procurement, production, plastic parts molding products, metal parts, to finished product assembly and quality testing, packaging, shipping, etc.
