Prod Model: |
HZDS |
Diamond Beads: |
Sintered |
Cutting Material: |
Granite, Marble, Concrete, etc |
Color: |
Customized |
Connection Material: |
Rubber, Plastic, Spring |
Length: |
Customized |
Bead Diameter: |
7.2/8.5/10/10.5/11/11.5 |
Bead Type: |
Sintered Bead, Brazed Bead, Electroplated Bead |
Advantage: |
High Productivity |
Certification: |
ISO9001:2000, SGS |
Mini Order: |
2m |
Product Description

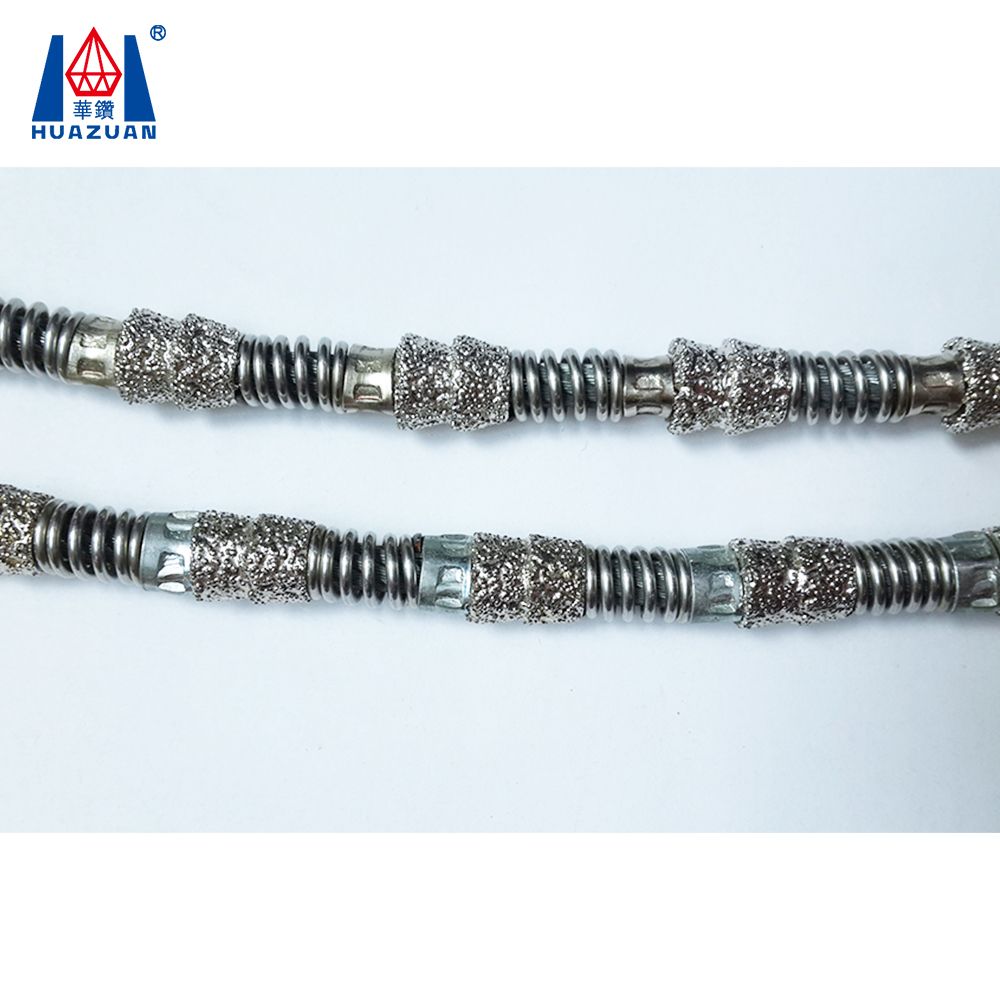

Vacuum brazed diamond wire saw for stone qurrying
Product Description
Application | 1.For Stone Quarry,Block Squaring&Chamfering,Profiling Cutting 2.For Cutting Reinforce Concrete |
Diameter Of Wire Saw | 7.2mm, 8.0mm, 8.5mm,9.0mm,11.0mm,11.5mm |
Technology | Sintered,Electroplated,Vaccum Brazed |

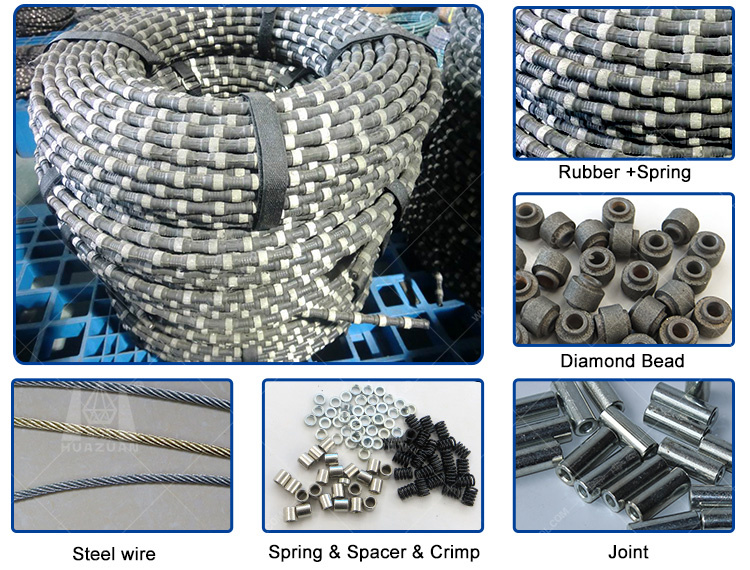

Coating Fix Injection | Plastic,Rubber,Spring,Rubber+Spring,Plastic+Spring |
Beads/Meter | 40/37/33/28/26pcs |
Attention | l. Checking the saw regularly and adjust timely. 2.Checking the pearl abrade regularly,Avoid the eccentric wear 3. Checking the joint regularly and adjust timely. 4. The tension of ropes is 250-300kg(Φ4-5mm ropes) 5. Water supply is around 15-25L/min |
Feature | 1.Very less breakage ratio when using therefore increase the working lifetime. 2.Automatic production ensures stable quality performance. 3.Safe, high efficiency and environment protecting. |
Diameter(mm) | Applications | Coating | Bead/m | Cutting Speed(m2/h) | Wire Life(m2/m) |
Φ11.5/Φ10.5 | Reinforced concrete | rubber+spring | 40 | 0.5-5 | 0.5-8 |
Φ11.5/Φ11.0 | Granite mine/quarry | rubber/rubber+spring | 40 | 2-12 | 7-22 |
Φ11.5/Φ11.0/Φ10.5 | Marble mine/quarry | spring/spring+plastic | 28-40 | 4-20 | 15-50 |
Φ11.0/10.5 | Granite & marble block | plastic/rubber | 37/40 | 6-30 | 7-50 |
Φ8.8/Φ8.5 | Granite&marble profiling | plastic/rubber | 33/37/40 | 7-30 | 7-40 |
Φ7.2/Φ8.5 | Granite slab | plastic | 37 | 0.5-1.6 | 6-15 |
1.Diamond Wire Saw For Quarry:
We recommend rubber wire,it can protect the wire saw rope very well and increase the wire's strength.
The rubber has good temperature resistance, and it can be used when water is not enough.
Strong flexibility can reduce the cut-in-one-side problem.
2.Diamond Wire Saw For Block Dressing:
We recommend plastic wire,it can be used to dissect marble granite.
It can cut accurately with small inter-space.
It can cut the block with the thickness of 2.3M
3.Diamond Wire Saw For Profiling :
We recommend plastic wire for shaping operations provides a huge range of possibilities
It makes smooth surface, and accurate sizes with small inter-space.
Columns and elements for the building industry can be produced in much more economic way.
4.Diamond Wire Saw For Reinforce Concrete Cutting:
We recommend 10.5/11.5mm Rubber and Spring wire.
The wires are widely used in the reinforced concrete with more than 5% steel inside.
Used in the building constructions, cutting for houses,bridges,cement pipes and under waster buildings.
5.Diamond Multi-Wire Saw For Slab Cutting:
Diamond multi-cutting wire saws are suitable for cutting the different kinds of large granite slabs
Remark :modern gang saw can produce in a month 3000 to 4000 square meters of slabs of 2cm thickness
The multi-wire can produce 5000 to 6000 square meters of slabs cut at any thickness between 1 to 5 cm.
Our Services
Why Choose us?
1.We are reliable Alibaba Gold Supplier,Support Trade Assurance
2.We are leading manufacturer in diamond tools, more than 20 years experience
3.Rich experience in Global market, export to more than 60 countries.
4.100% QC inspection Before Shipment
5.Keep researching and developing the latest technology
6.Reply within 24 hours.

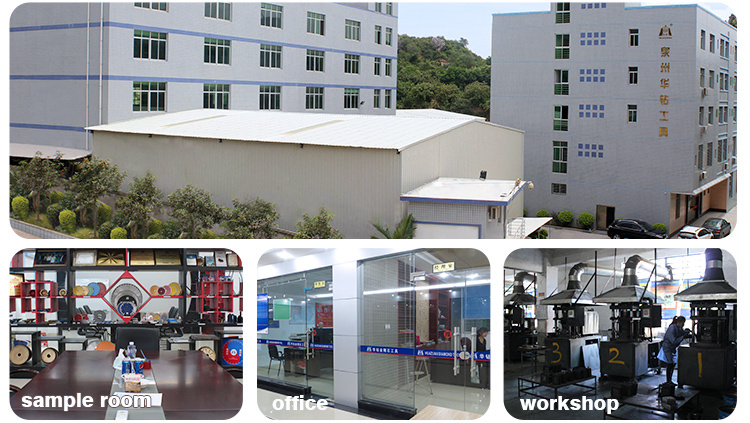

Company Information
FAQ
Q1:What is the warranty of the diamond wire saw?
A1: The Quality is stable.
This 1 year whatever happen some questions about quality welcome to contract us
Q2:What is the Specific Size of your diamond wire saw?
A2: Our mainly size is 7.2mm 8mm,8.5mm,9mm,10.5mm 11mm 11.5mm and so on,we product the size as request.
Q3:What is Lifespan of Your Diamond wire Saw?
A3:The lifespan of this diamond saw is on the above data.
If you want have other requirement about the quality.We also can satisfy your requirement
Q4:Can we Buy different kind of quality in different stone?
A4:Yes,You can .Give us your requirement .The design are depend on the different hardness of the stones.
Q5: If our factory have no import license can we buy from you?
A5: Of cause you can.If the weight lower than 45kg.We advice you choice send by Express( FedEx,Dhl)
We suggest you can find a company which have import license from your country.
Use their name import from us.
