| Prod Model: |
FY-W8000 |
| Product Name: |
Low Profile Hexagon Hydraulic Adjustable Wrench |
| Business Type: |
Manufacturer |
| Application: |
Lager Nut and Bolt Tightening and Loosing |
| Usage: |
Lifting, Supporting and Jacking |
| Structure: |
Piston Cylinder |
| Pressure Direction: |
Single-Acting Cylinder |
| Double-Acting Cylinder Type: |
Common Cylinder |
| Special Cylinder Type: |
Number of Cylinders |
| Combination Cylinder Type: |
Pressurized Cylinder |
| Warranty: |
1 Year |
| Type: |
Hex Wrench |
| Material: |
Carbon Steel |
| Standard: |
Metric |
| Surface Treatment: |
Electrophoresis |
| Feature: |
Ordinary |
| Brand: |
Feiyao |
| Working Mode: |
Hydraulic Automatic |
Product Description

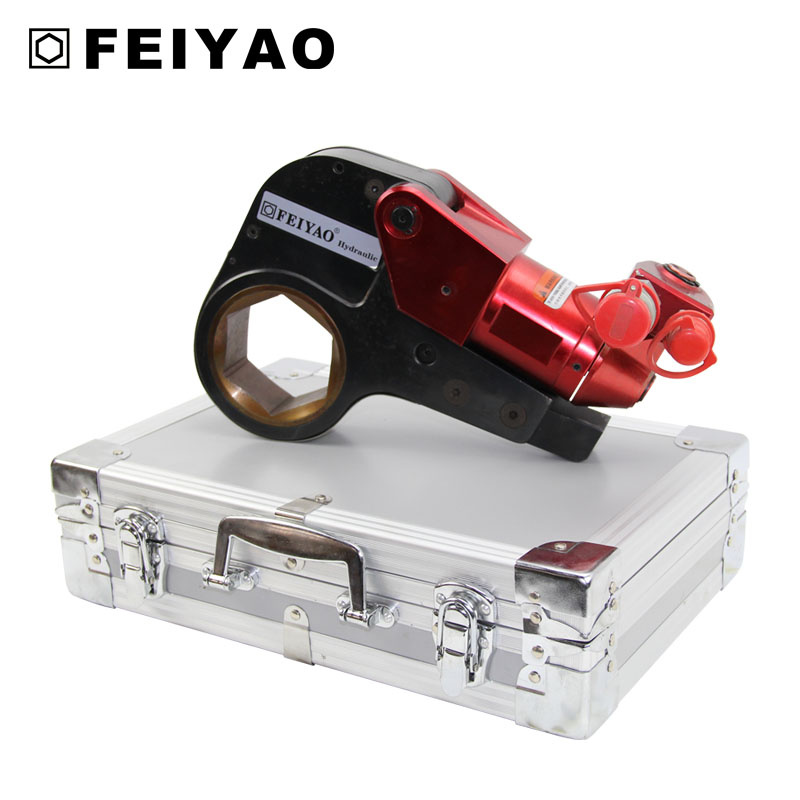

W series Steel Low Profile Hexagon Hydraulic Adjustable Wrench
Features:
1. Rigid steel design, durability, reliabilty and safety
2. No tools needed for changing hexagon heads
3. Versatility: One hydraulic drive unit per torque capacity can be used to drive any hexagon head within
that range
4. Innovative, pinless wrench construction with quick release drive and automatic crank engagement fast
operation due to the large nut rotation per wrench cycle(30 degree)and rapid return stroke, double acting
5. Constant torque output provides high accuracy (±3%) across the full stroke
6. 360 degree swivel manifold with screw lock couplers
7. Optional interchangeable metric and imperial hexagon heads and reducer inserts
Parameter Information
| Model |
Optional Hexagon Heads | 700bar Max. Torque | Min Torque | LP series diemension(mm) |
| mm | inch | Nm | Ft.lbs | Nm | Ft.lbs | A | B | C | D | E | F |
| FY- W8000 | 70-95 | 2(78)-3(78)" | 10846 | 8000 | 1084 | 800 | 172 | 205 | 208 | 52.5 | 41.9 | 25 |
Brief Introduction of FEIYAO
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
For more information please visit our website: www.fyhydraulic.cn
We are professional manufacturer, offer you competitive price.
If you have any questions about these products, please contact us, we will try our best to help you!
