| Prod Model: |
50X50cm/100X50cm/100X100cm/200X100mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Pushing Blocks in Quarry/Mine |
| Applicable: |
for Marble, Sandstone, Slate |
| Pakage: |

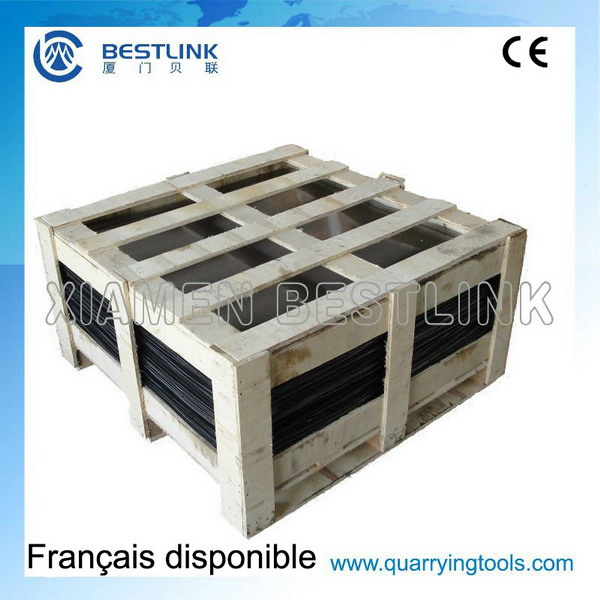

by Wooden Case |
| Thickness: |
2 Mm (0.08") |
| Advantages: |
Less Noise and Dust |
| Pushing Power: |
up to 1000 Tons or Even More |
| Water Pump Available: |
Pneumatic/Electric |
| Power Supply: |
2phase, 220V, 50Hz |
| Block: |
Marble, Sandstone and Other Soft Rock |
| Suitable: |
Insert Into Gap After Diamond Wire Cutting |
Product Description
Water Steel Cushion Pushing Hydro Bag for Pushing Donw Marble Block

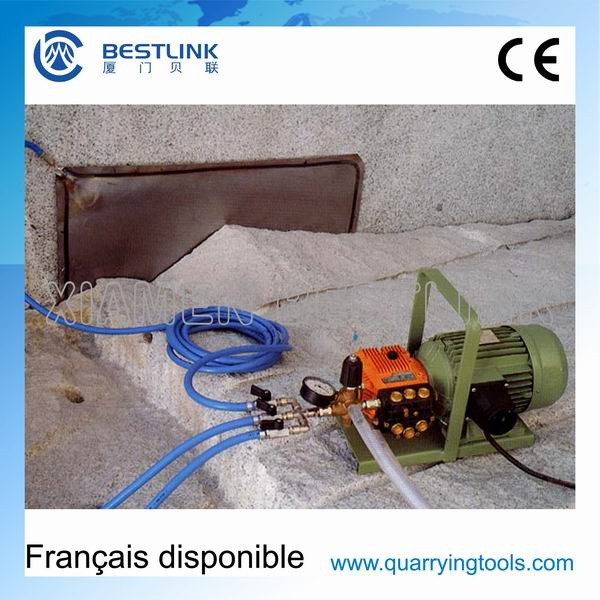

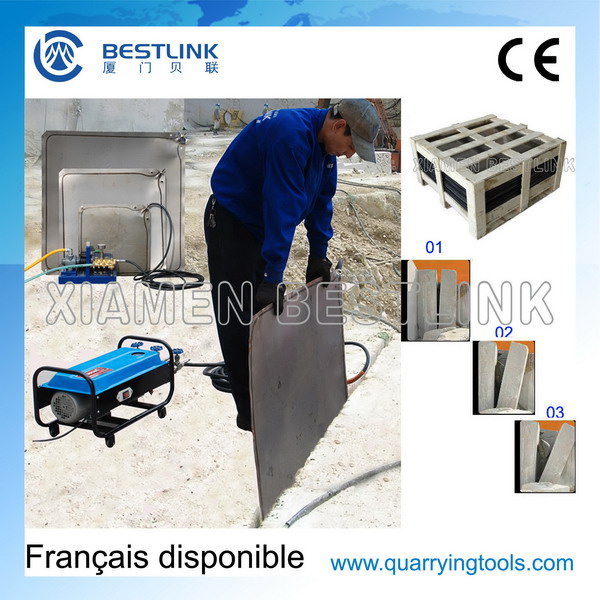

Widely used in the marble and stone quarrying industry, specifically for stripping blocks from the mountain. The bag thickness is properly studied to easily insert them into the diamond wire cutting.
HYDRO-BAG is a simple, versatile and economical tool that has revolutionized quarry block stripping thanks to all the positive advantages as briefly described above.
All this means saving from the following points of view:
Advantages:
* pushing power up to 1000 tons or even more;
* thickness is just 2 mm (0.08") and can be easily slipped into the wire saw cut;
* Elimination of the time necessary for the preparation of the slots of the jacks;
* the blocks of stone are obtained with their sections intact, without the breaching deriving from the above mentioned slots;
* total elimination of explosive;
* partial or total elimination of hydraulic jacks;
* less noise and dust deriving from the presence of pneumatic hammers;
* respect for the local environment;
* increased safety for the operators;
* no maintenance.

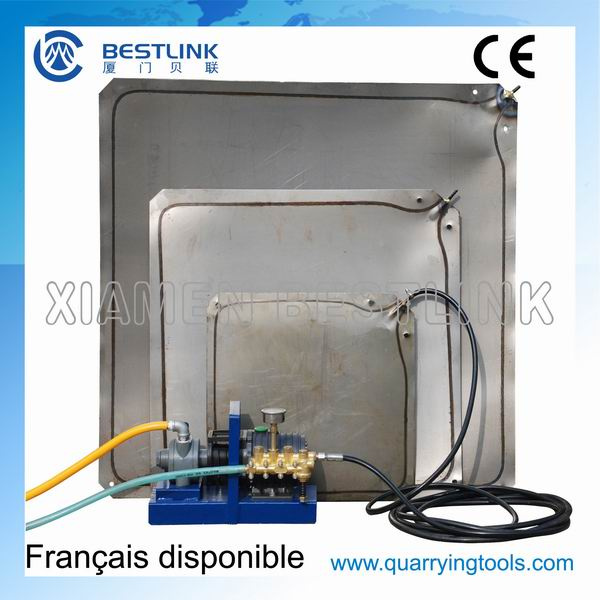

A complete HYDRO-BAG equipment consists of:
1. Electric pump HYDRO-BAG to create the pressure for the cushions
2. Safety valves and distribution valves;
3. Pipes, cocks and inlet filters;
4. Quick couplings
5. A series of HYDRO-BAG cushions.
| Specification | Theoretical pushing capacity | Net weight(kg) |
| 2000*1000mm | 600tons | 20.0kg |
| 1000*1000mm | 300tons | 10.0kg |
| 1000*500mm | 150tons | 5.0kg |
| 500*500mm | 75tons | 2.5kg |
Water pump pneumatic or electric are both available.
| Model | Power | Power supply | Working pressure | Maximum working pressure | Weight |
| DS-220 | 1.6 kw | AC 220V@50Hz | 30 bar | 50 bar | 17 kgs |
| QD-200 | 1.0 kw | 2m³/min | 30 bar | 50 bar | 18 kgs
|
