| Prod Model: |
ROS11~ROS120 |
| Model: |
DTH Hammer Manufacturer |
| Name: |
Down The Hole Hammer for Sale |
| Item: |
Down The Hole Hammer Bits |
| Functions: |
Down The Hole Hammer How It Works |
| Visual: |
Down The Hole Hammer Video |
| Methods: |
Down The Hole Hammer Method |
| Manufacturers: |
Down The Hole Hammer Manufacturers |
| Advantages: |
Down The Hole Hammer Price |
| Drilling: |
Down The Hole Hammer Drilling |
| Name No: |
Down The Hole Hammer Atlas Copco |
Product Description
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
We have rich experience in this field of DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.
Product Description
DTH hammers without footvalve can be available.
Different out diameters of out cylinder can be available.
DTH bits 60mm-381mm for above hammers can be available.
Products specifications:
| Hammers | Bit Shank | Connection Thread | Suitable bit | Working pressure | Air consumption |
|
| 1-3" Middle-low pressure DTH hammers | | RD40 box | | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
| BR1 | RD50 box | 64-76mm | 0.7-1.75Mpa |
| BR2 | API 2 3/8" Reg | 70-90mm | 0.7-1.75Mpa | 1.0Mpa | 4m3/min |
| BR3 | | 90-110mm | | 1.4Mpa | 5m3/min |
| 3" hammers | DHD3.5 | API 2 3/8"Reg | 90-110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| COP32/COP34 |
| M30 | 1.5Mpa | 9m3/min |
| 4" hammers | DHD340 | API 2 3/8"Reg | 105-130mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| COP44 |
| QL40 |
| SD4 | 1.8Mpa | 10m3/min |
| M40 | 2.4Mpa | 15m3/min |
| 5" hammers | DHD350 | API 2 3/8"Reg/API 3 1/2"Reg | 130-156mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| COP54 |
| QL50 |
| SD5 | 1.8Mpa | 15m3/min |
| M50 | 2.4Mpa | 23m3/min |
| 6" hammers | DHD360 | API 3 1/2"Reg | 152-203mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| COP64 |
| QL60 |
| SD6 | 1.8Mpa | 20m3/min |
| M60 | 2.4Mpa | 28.5m3/min |
| 8" hammers | DHD380 | API 4 1/2"Reg | 200-279mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| COP84 |
| QL80 | 1.8Mpa | 26m3/min |
| SD8 | 2.4Mpa | 34m3/min |
| 10" hammers | SD10 | API 6 5/8"Reg | 254-330mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| NUMA100 | 1.8Mpa | 40m3/min |
| | 2.4Mpa | 55m3/min |
| 12" hammers | DHD1120 | API 6 5/8"Reg | 305-381mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| SD12 |
| NUMA120 | 1.8Mpa | 56m3/min |
| NUMA125 | 2.4Mpa | 78m3/min |
ROSCHEN RC hammer technical data:
| ROSCHEN DTH Hammers Specifications |
| Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption |
|
| 2" | BR2 | ROS 11 ROS 22 | RD50 box | ¢70-¢90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
| 1.0Mpa | 4m3/min |
| 1.4Mpa | 5m3/min |
| 3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ¢90-¢110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| COP32/COP34 |
| M30 | 1.5Mpa | 9m3/min |
| 4" | DHD340 | ROS 34 | API 2 3/8" Reg | ¢110-¢135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| COP44 |
| QL40 |
| SD4 | 1.8Mpa | 10m3/min |
| M40 | 2.4Mpa | 15m3/min |
| 5" | DHD350 | ROS 52 ROS 54 | API 2 3/8"Reg/API 3 1/2" Reg | ¢135-¢155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| COP54 |
| QL50 |
| SD5 | 1.8Mpa | 15m3/min |
| M50 | 2.4Mpa | 23m3/min |
| 6" | DHD360 | ROS 62 ROS 64 | API 3 1/2" Reg | ¢155-¢190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| COP64 |
| QL60 |
| SD6 | 1.8Mpa | 20m3/min |
| M60 | 2.4Mpa | 28.5m3/min |
| 8" | DHD380 | ROS 82 ROS 84 | API 4 1/2" Reg | ¢195-¢254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| COP84 |
| QL80 | 1.8Mpa | 26m3/min |
| SD8 | 2.4Mpa | 34m3/min |
| M80/M85 |
| 10" | SD10 | ROS 100 | API 6 5/8" Reg | ¢254-¢311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| Numa100 | 1.8Mpa | 40m3/min |
| ROS 100 | 2.4Mpa | 55m3/min |
| 12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ¢305-¢445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| SD12 | 1.8Mpa | 56m3/min |
| Numa120 | 2.4Mpa | 78m3/min |
| Notes: |
| Metzke, Remet thread is available! |
| Any special typ shank of DTH Hammer will be available by requests. |

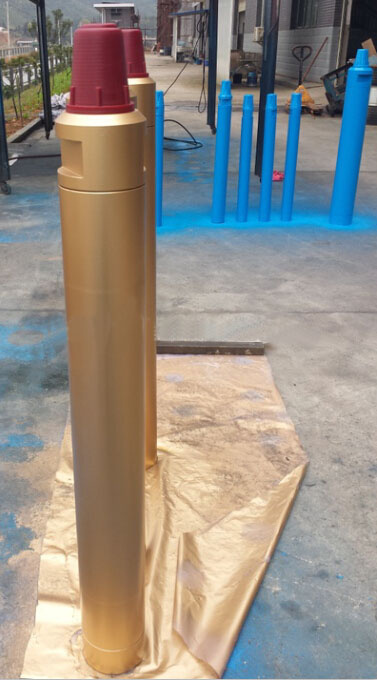

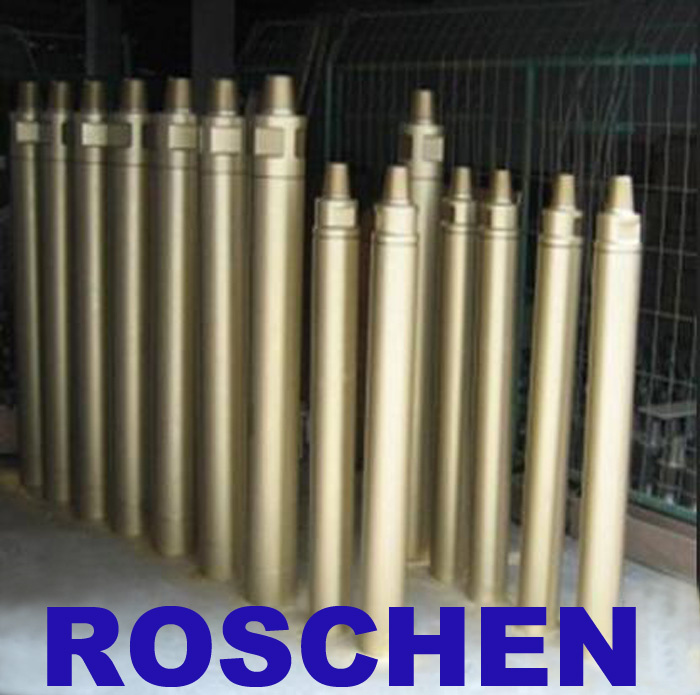

Products photoes
Quality warranty:Our hammers are made of high quality steel and all spares are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.Package:Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation. Also we can customize package according to your special requests.Production time:Generally, Production time is 15 -25 days.Transportation:By air, By Express or By sea according to your requests.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.
Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
