| Prod Model: |
PD800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Prodrill |
| Model Number: |
DTH |
| Machine Type: |
Drilling Tool |
| Certification: |
API |
| Processing Type: |
Forging |
| Use: |
Ore Mining |
| Model Type: |
Pd 660 800 1000 1200 1300 1500 |
| Application: |
Hard Drilling |
| Color: |
Yellow or as Your Request |
Product Description

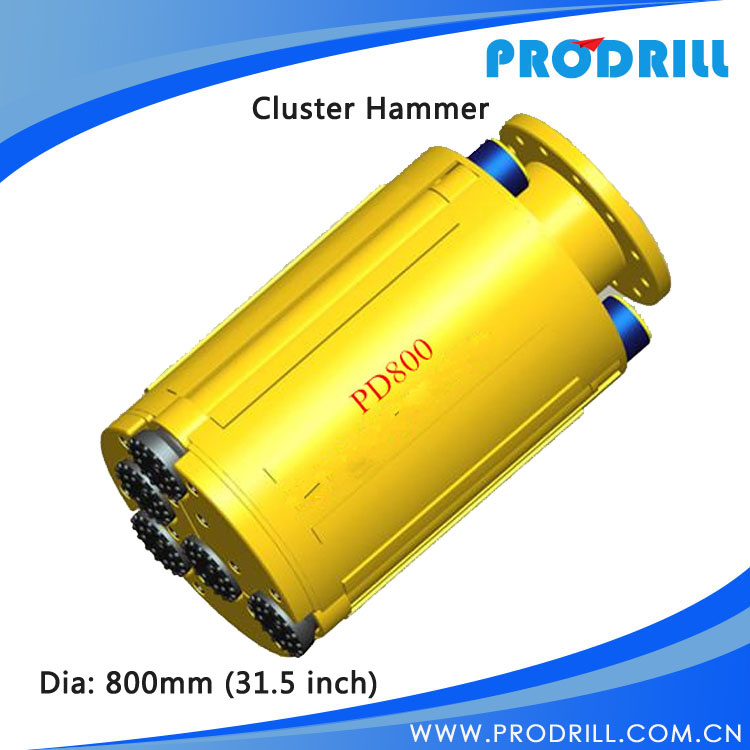

Pro Drill series Super Jumbo Cluster Hammer Drill, is designed to fulfill piling purpose on rotary drill rigs, especially under hard rock condition. We are the firstly and only one factory to produce this new products, This Jumbo Cluster Hammer adopts the typical Bauer square drive, which can match with most of the rotary drilling rig prevailing on the market.
To overcome the short of traditional rotary drill rig - low drilling efficiency in hard rock formation, the PD Cluster Hammer Drill adopts cluster method to let several DTH hammers work together, which makes it possible to use small size DTH hammers drilling big size holes. And in this way, the work efficiency is greatly improved by dozens of times, compared to traditional rotary drill.
According to the demand current market, we now launch 660mm, 800, 1000mm, 1200mm, 1300mm, and 1500mm diameter cluster hammer drill, and also we can customize specific sizes, according to particular demand of customers.
| Item No. | PD660 | PD800 | PD1000 | PD1200 | PD1300 | PD1500 |
Height (mm)
(without pilot bit) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Weight (Kg) | 1100 | 1380 | 1900 | 2450 | 2640 | 3390 |
| No. of Sub-hammers | 4 | 5 | 7 | 8 | 8 | 10 |
| Diameter (mm) | 660 | 800 | 1200 | 1000 | 1300 | 1500 |
| Total height (mm) | 2500 | 2600 | 2600 | 2600 | 2600 | 2600 |
| Total weight (Kg) | 1800 | 2300 | 3500 | 3000 | 3800 | 4900 |
Technical Data
| Air pressure | 1.0Mpa | 1.8Mpa | 2.4Mpa | Item No. |
| Air consumption | 36 m³/min | 72 m³/min | 104 m³/min | PD660 |
| Air consumption | 45 m³/min | 90 m³/min | 130 m³/min | PD800 |
| Air consumption | 63 m³/min | 126 m³/min | 182 m³/min | PD1000 |
| Air consumption | 72 m³/min | 144 m³/min | 208 m³/min | PD1200 |
| Air consumption | 72 m³/min | 144 m³/min | 208 m³/min | PD1300 |
| Air consumption | 90 m³/min | 180 m³/min | 260 m³/min | PD1500 |
Any inquiry or question, please contact me.
Thanks and best regards,
Tina Xu
mob. 0086 15060730593
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
